EZVIZ CS-LB1(COLOUR)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

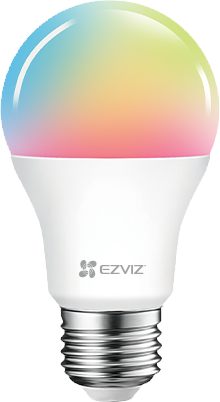

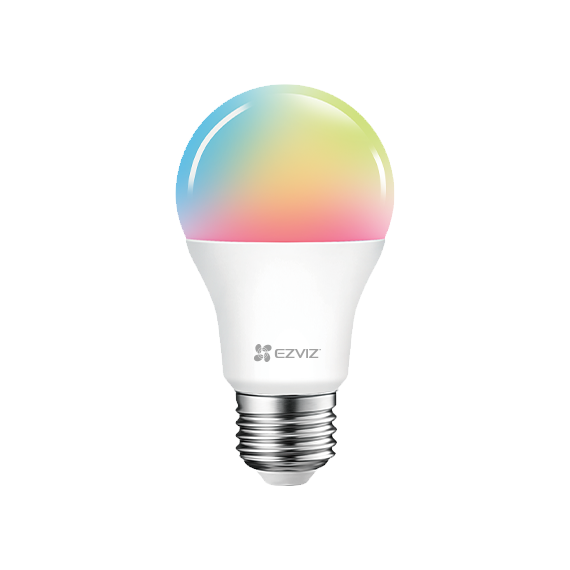

EZVIZ Dimmable Wi-Fi LED bulb
The EZVIZ LB1-Color Bulbs work with Alexa and Google Assistant so you can turn your lights on and off and dim and brighten them, and even change the color temperature — all with your voice! You can also use the EZVIZ App to set schedules or remote control your home lights from anywhere.
- 806-Lumen Brightness Adjustable
- E27 Fitting
- No Hub Required
- Schedule & TImer
- 2700K Warm Light
- Remote Control via App
- Energy-Saving
- Wi-Fi 2.4GHz
- Works with Google Assistant and Alexa
Life is colorful, so your lights should be, too.
Bring color to your home with the EZVIZ Smart Color Bulb. Choose from 16 million colors to create just the right atmosphere for any mood or activity.
Customize the color temperature.
Ranging from warm to cool daylight, the EZVIZ LB1-Color bulb helps you relax, concentrate, and go to sleep and wake up naturally.
Choose the right light setting.
Select from eight ready-to-go lighting modes to match your daily routines or your mood at the moment. You can even customize each scene as you like.
Set timers for your convenience.
Easily make your lights go on and off automatically at specific times of the day.
Control from anywhere.
With the EZVIZ App, you can turn on your porch light when you are on your way home, or check whether you’ve forgotten to turn off the lights while at the office.
Voice control your lights.
Hands full? No problem! Ask Alexa or Google Assistant to turn your lights on or off or to dim the brightness!
Incredibly easy to install.
Install the EZVIZ LB1 bulb as you would install ordinary bulbs. Then download the EZVIZ App and pair it with your Alexa or Google Home.
