EZVIZ EB8 4G 2K Pan & Tilt 4G Battery Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

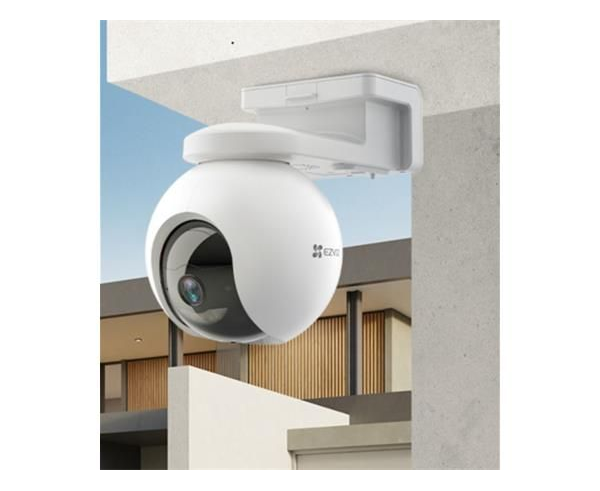

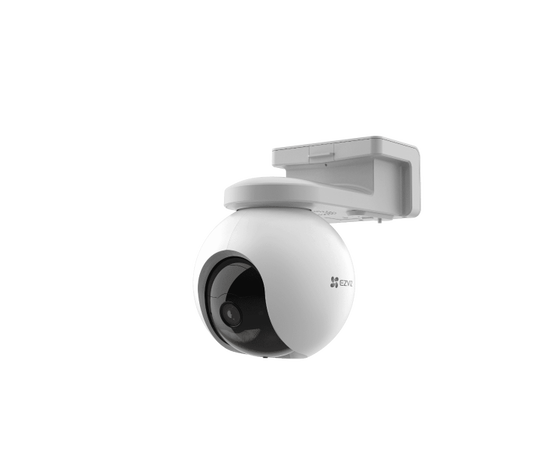

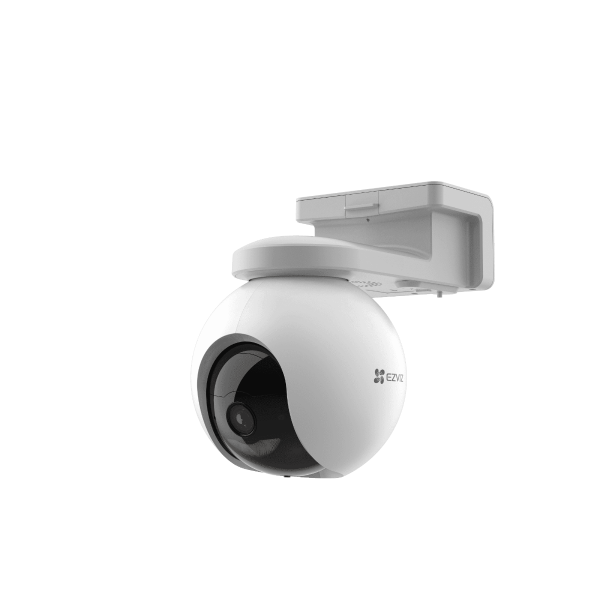

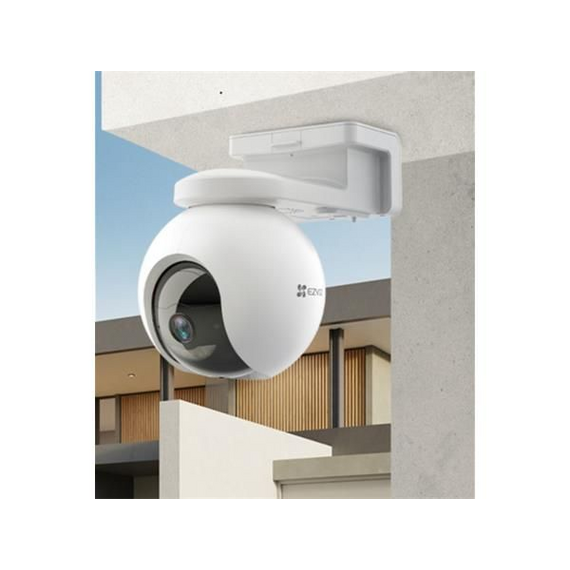

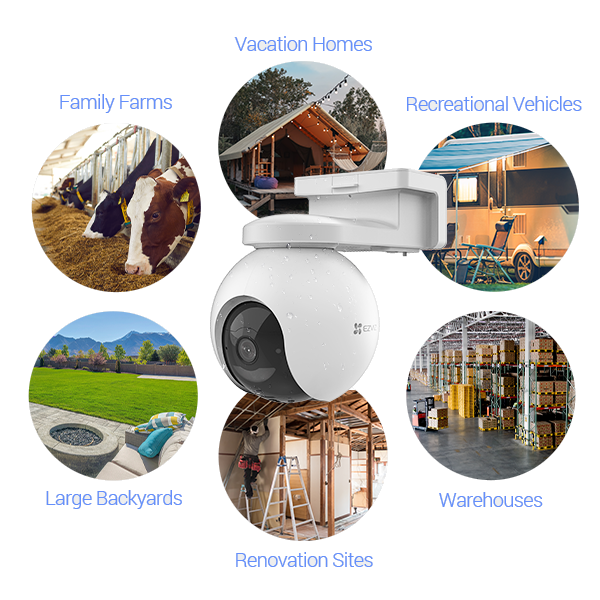

EB8 4G 2K Pan & Tilt 4G Battery Camera
Now, it’s easier than ever to put security in action in the places you care about most. EZVIZ’s newest camera overcomes installation limitations caused by networks or electricity. The EB8 4G is battery-powered with no strings – or cords – attached. It operates on 4G LTE networks in the outdoors where Wi-Fi may not be available. It also inherits key features from EZVIZ's popular outdoor pan & tilt predecessors to provide smart and reliable protection 24/7.
4G Connectivity¹ |
Device GPS Location Viewing²
|
2K Resolution |
Panoramic View |
Extra-Large Battery Capacity (10,400 mAh)³ |
Smart Human Motion Detection |
Two-Way Talk |
Color Night Vision |
Active Defense with Siren and Strobe Light |
Weatherproof Design |
Works with EZVIZ Solar Panel (Type-C Version) for Battery Charging⁴ |
Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage⁵ |
