Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

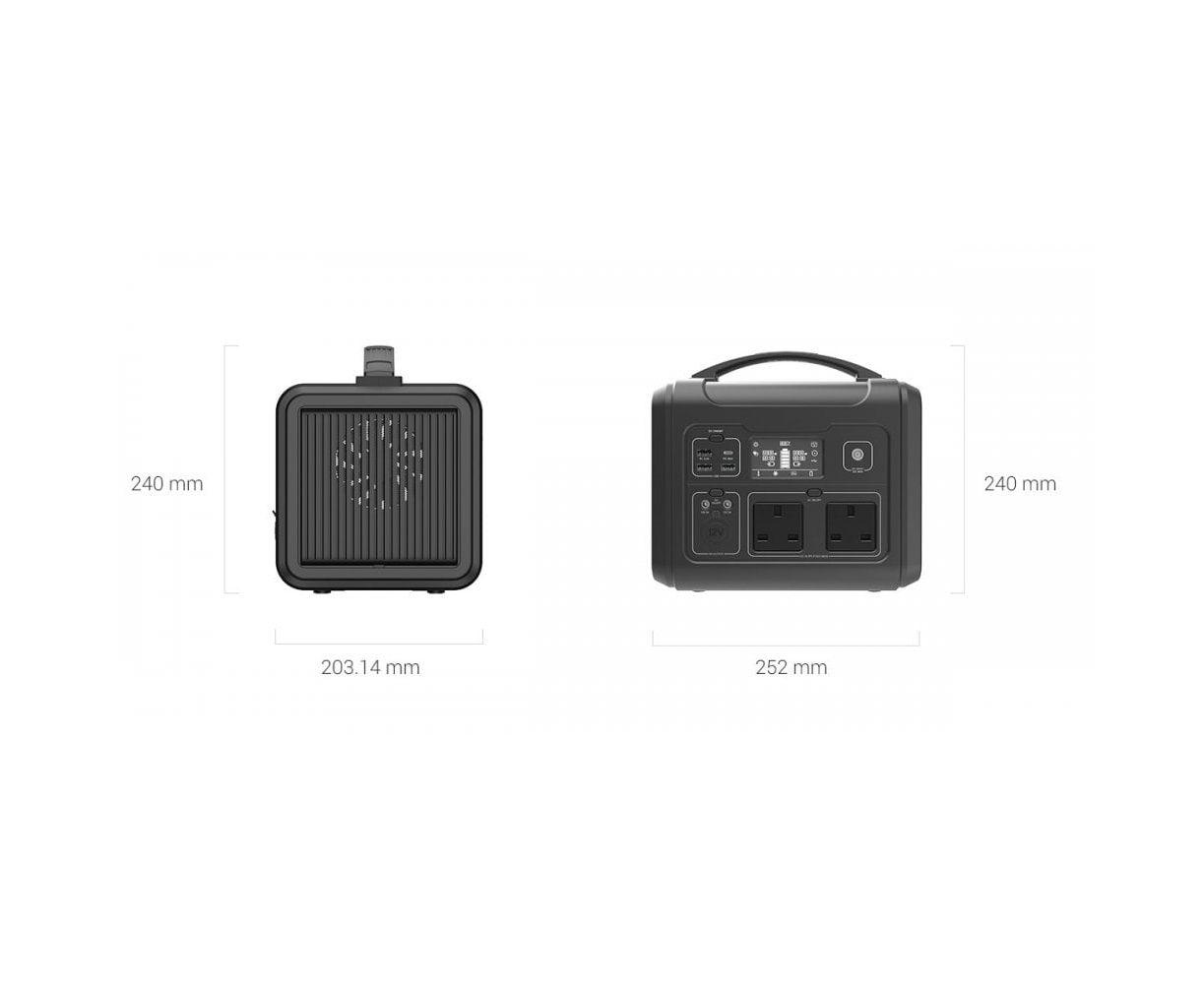

With a generous, 607Wh power capacity, EZVIZ’s PS600 Portable Power Station provides you with plenty of power in virtually any situation – traveling, enjoying the outdoors, experiencing electrical outages, or working on special projects that require portable energy. It’s designed to charge your essentials via five different ports, including the USB-C fast charging option. The lightweight, travel-friendly PS600 can be carried and stored easily with its space-saving design, and is more than durable enough for everyday use.
Introducing the EZVIZ PS600 Portable Power Station - the robust power solution for all your adventures. With a whopping 607Wh capacity, this power station is your reliable source of energy for any situation, whether you're on a camping trip, experiencing a blackout, or working on a special project.

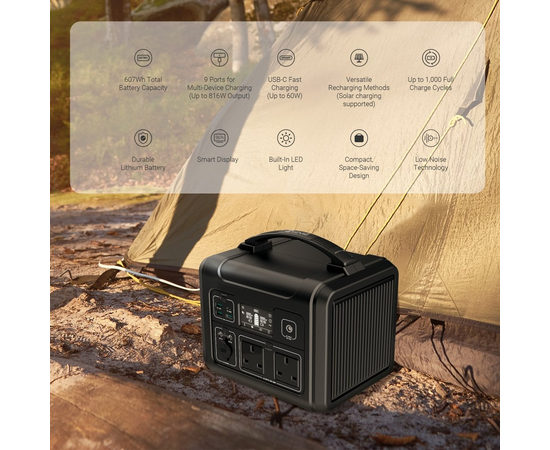

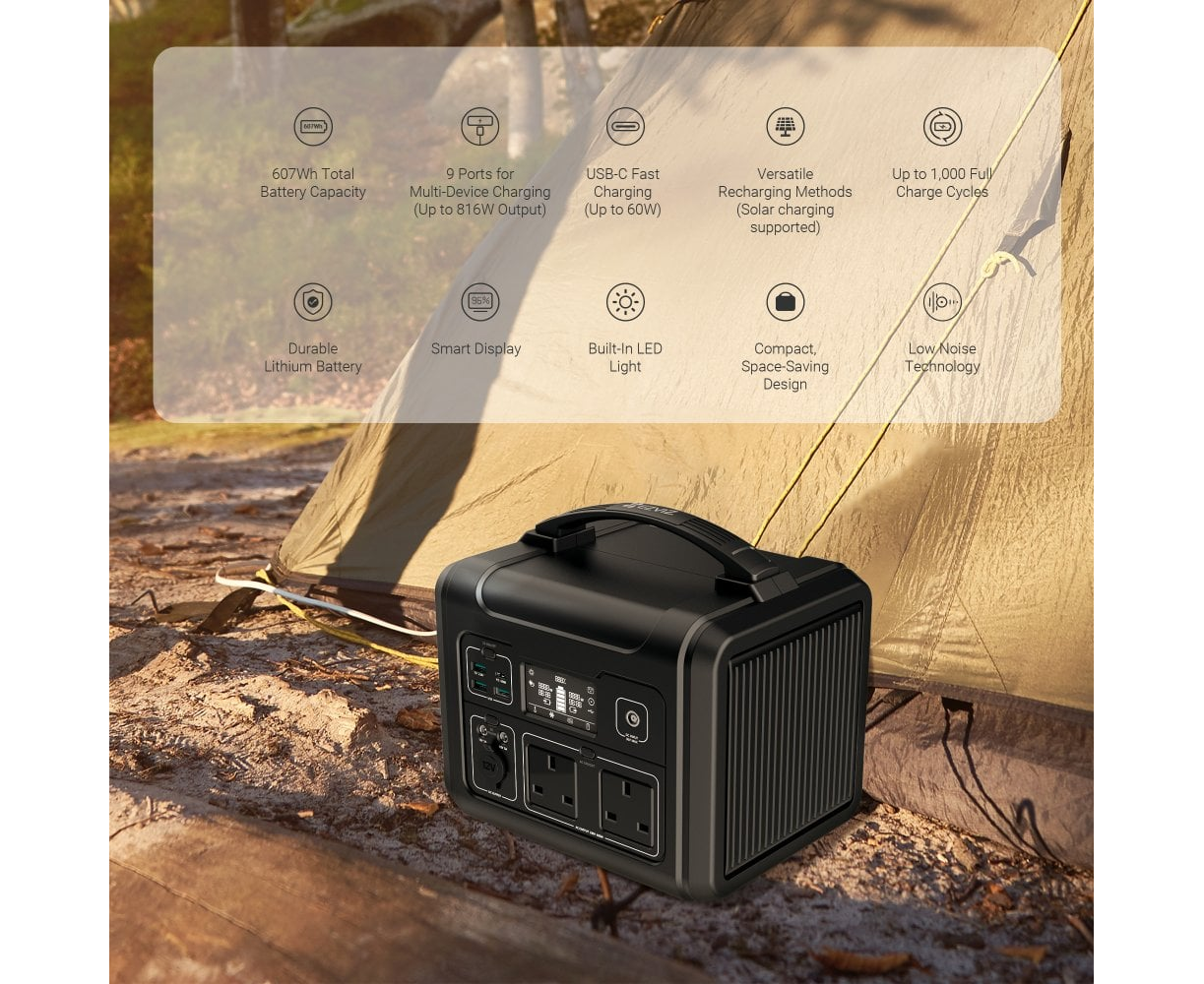

Features:

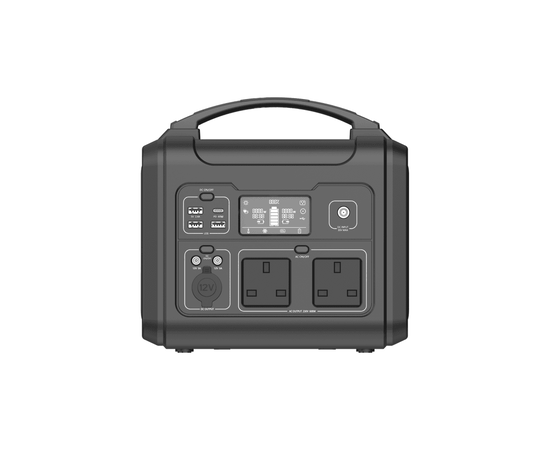

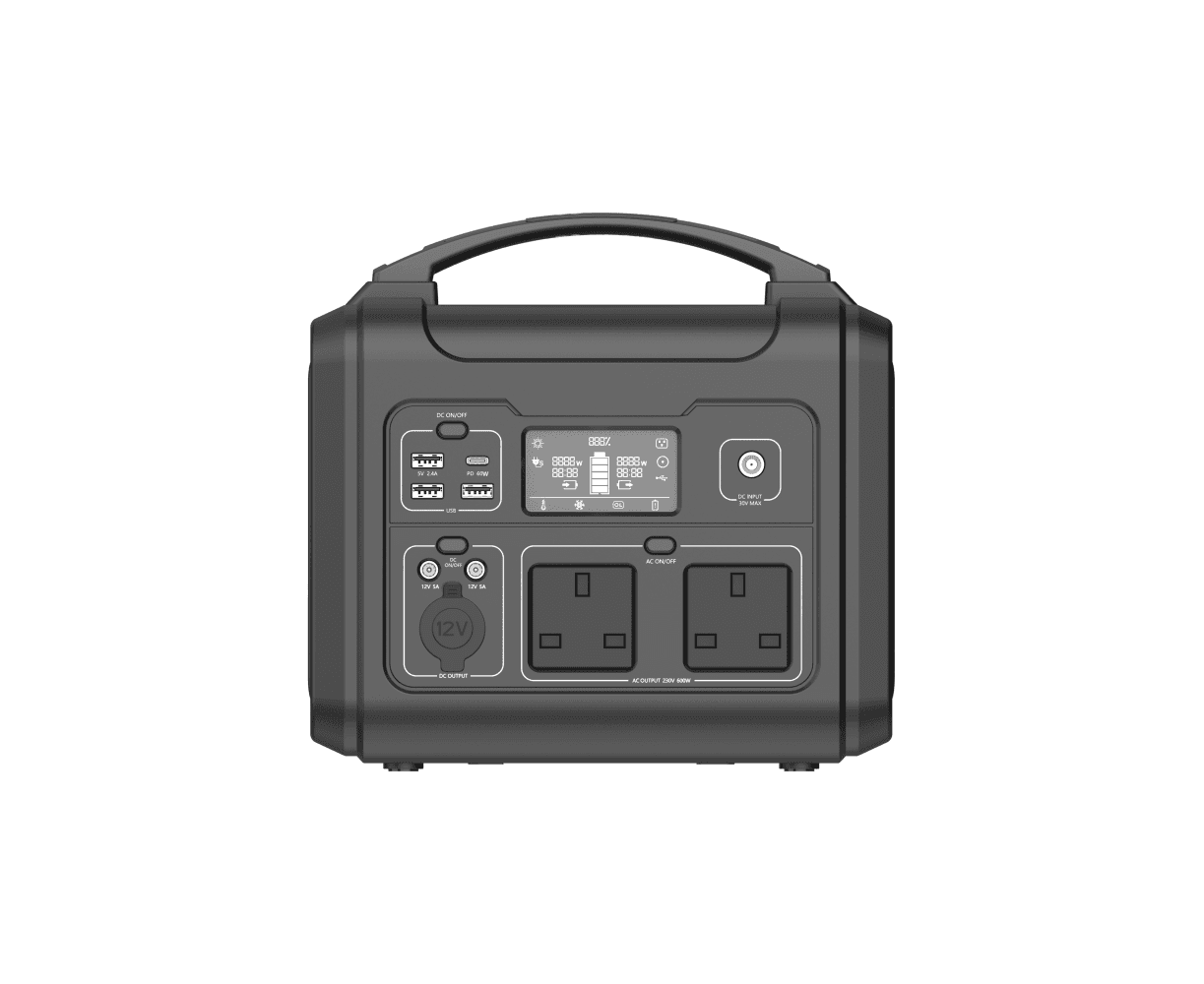

- Multi-Device Charging: With 9 ports in total, including USB-C fast charging, this power station can charge all your essential devices and small appliances (up to 816W output).
- Versatile Recharging: Choose from 4 different recharging methods, including solar charging (compatible solar panel sold separately).
- Durable Lithium Battery: The long-lasting battery can handle up to 1,000 full charge cycles and maintains 80% capacity even after extensive use.
- Smart Display: Monitor charging and recharging details, temperatures, and any operational warnings at a glance.
- Built-in LED Light: Use the 3 adjustable modes for extra convenience and lighting in emergency situations.
- Low Noise Technology: Efficiently charges devices while minimizing excessive noise levels.
Don't let a lack of power hold you back from your next adventure - get the EZVIZ PS600 Portable Power Station today!
