EZVIZ PSP100 100w Solar Panel for Power Station
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

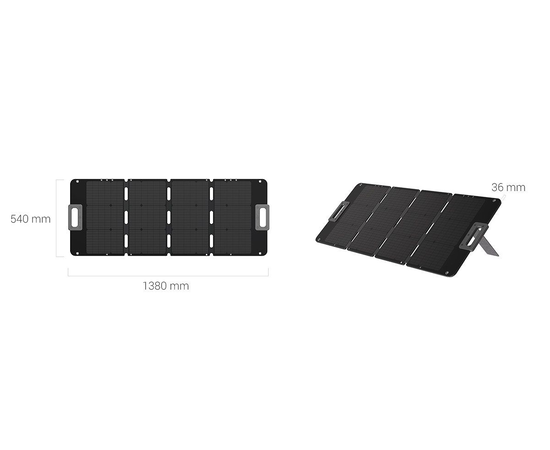

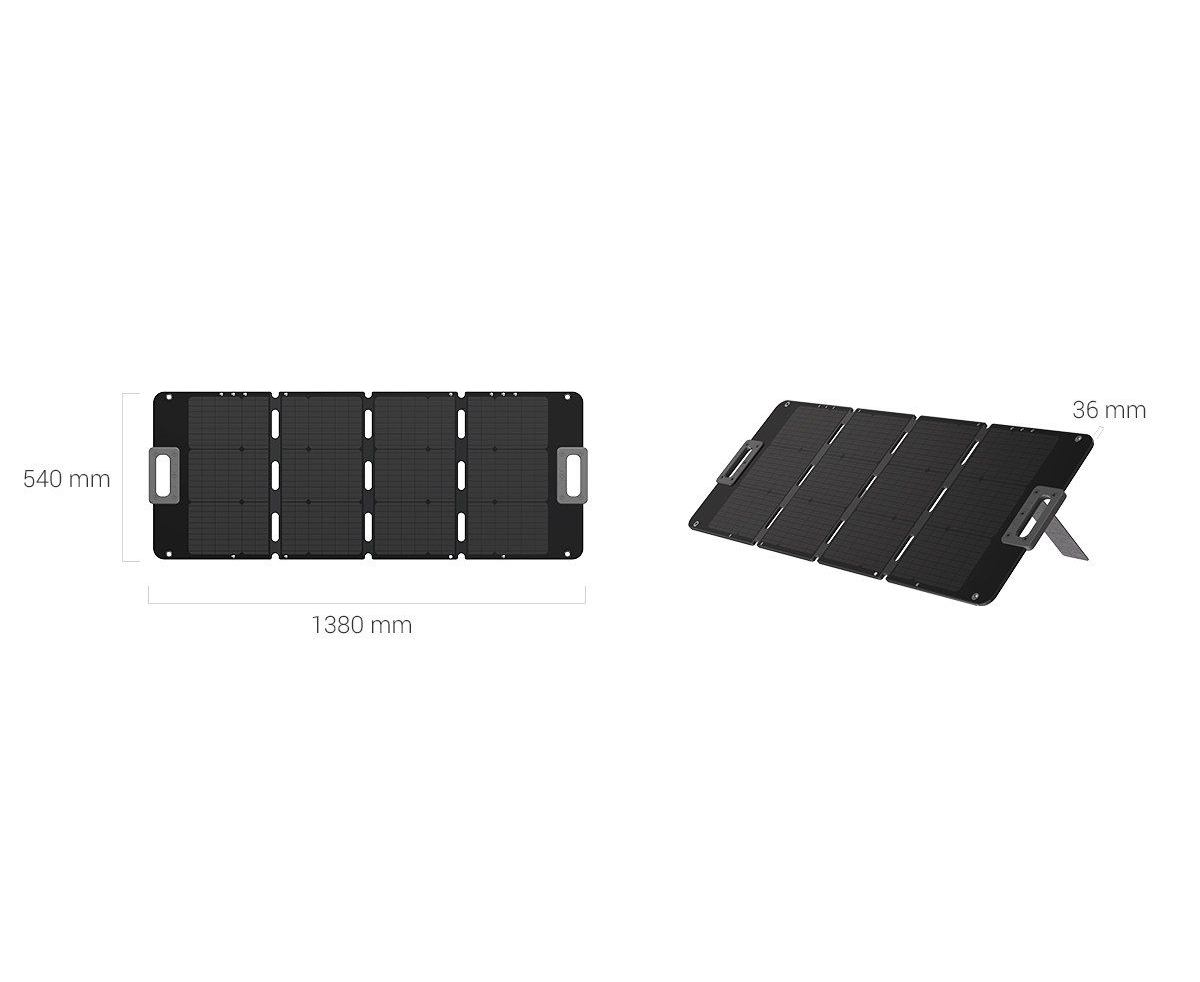

The high-efficiency PSP100 Portable Solar Panel from EZVIZ goes with you on road trips, camp sites, and just about anywhere! Its folding, easy-to-carry design and adjustable, built-in stand help capture maximum sunlight to keep you powered up. Get clean, reliable energy by harnessing the power of the sun.
Designed to satisfy both the adventurous outdoor spirit and the leisurely weekend lifestyle, the PSP100 solar panel captures the power of nature so you can leave your worries behind. It uses direct sunlight to charge your EZVIZ power station in an easy, reliable way.

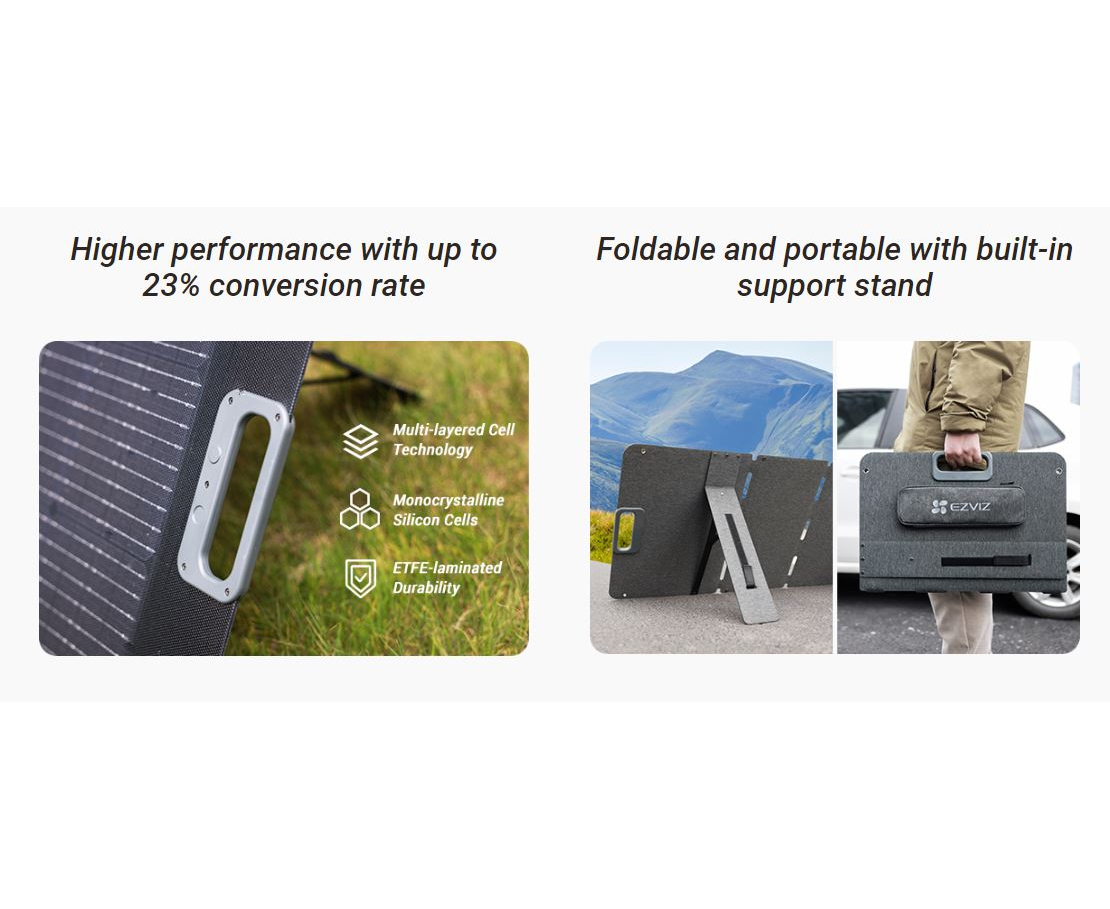

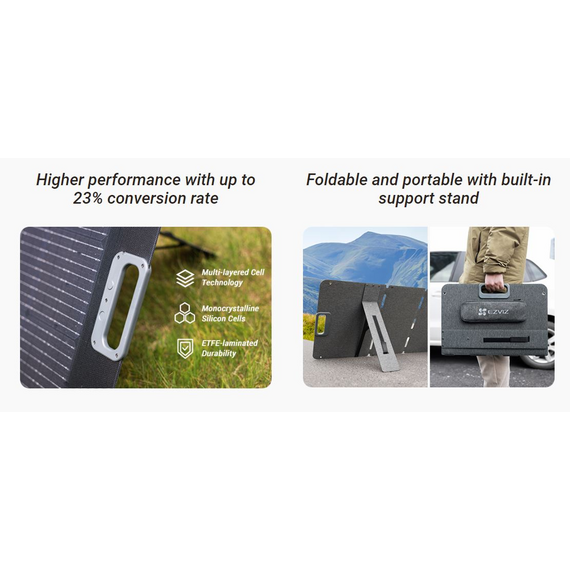

- Powerful Charging: The PSP100 uses monocrystalline silicon solar cells and multi-layered cell technology to charge your power station at a high efficiency conversion rate of up to 23%².

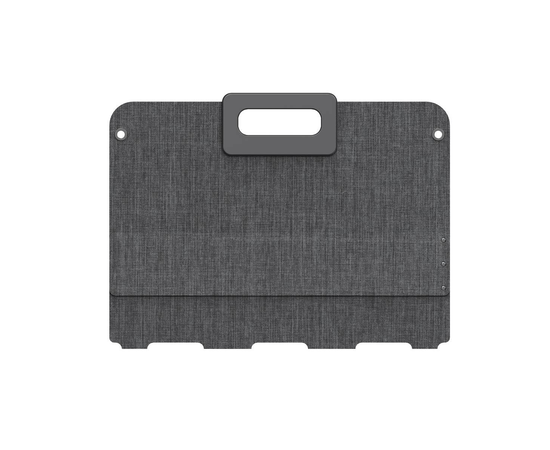

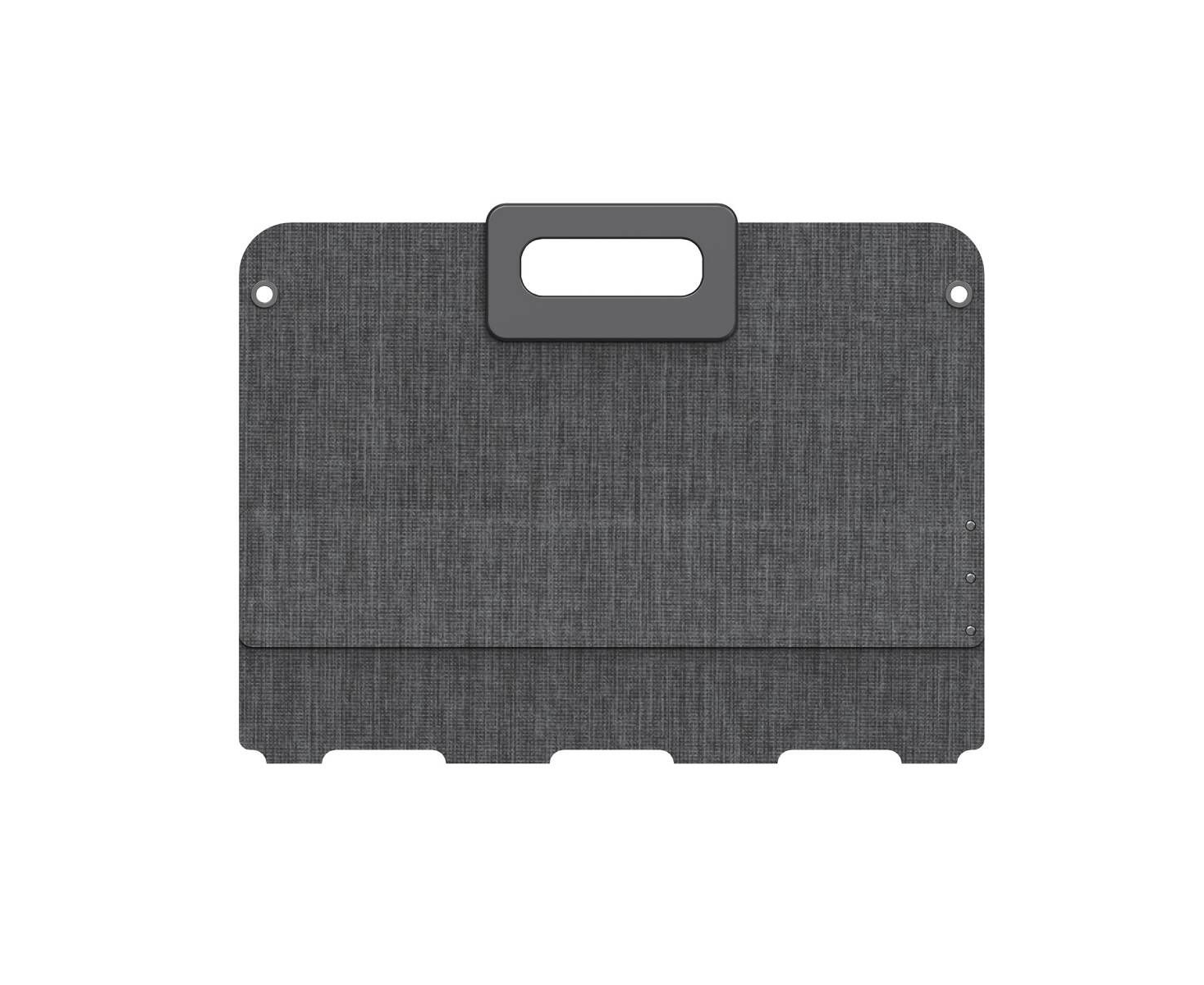

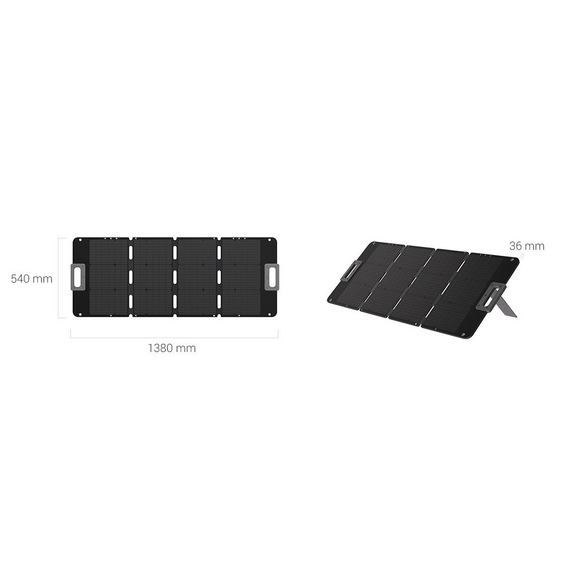

- Lightweight & Easy to Carry: To store the panel or take it outdoors, simply fold it up and use the built-in handle to carry it comfortably on the go.
- Waterproof & Durable: Built with ETFE-laminated solar cells, it’s highly reliable against outdoor conditions with long-standing performance. The solar panel is IP67-rated against rain and snow.

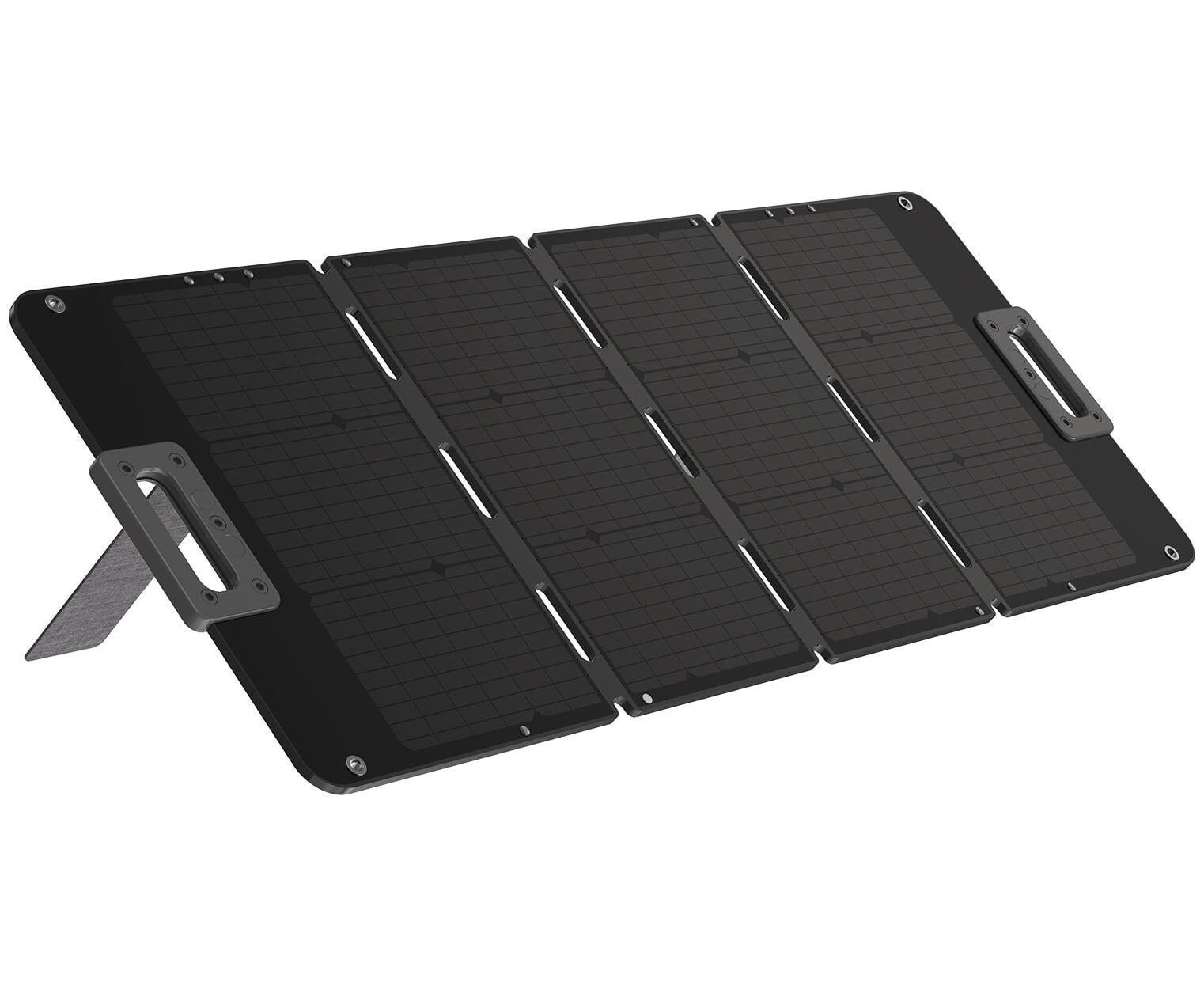

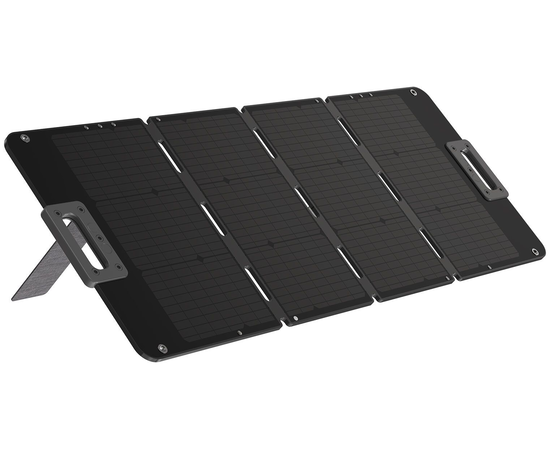

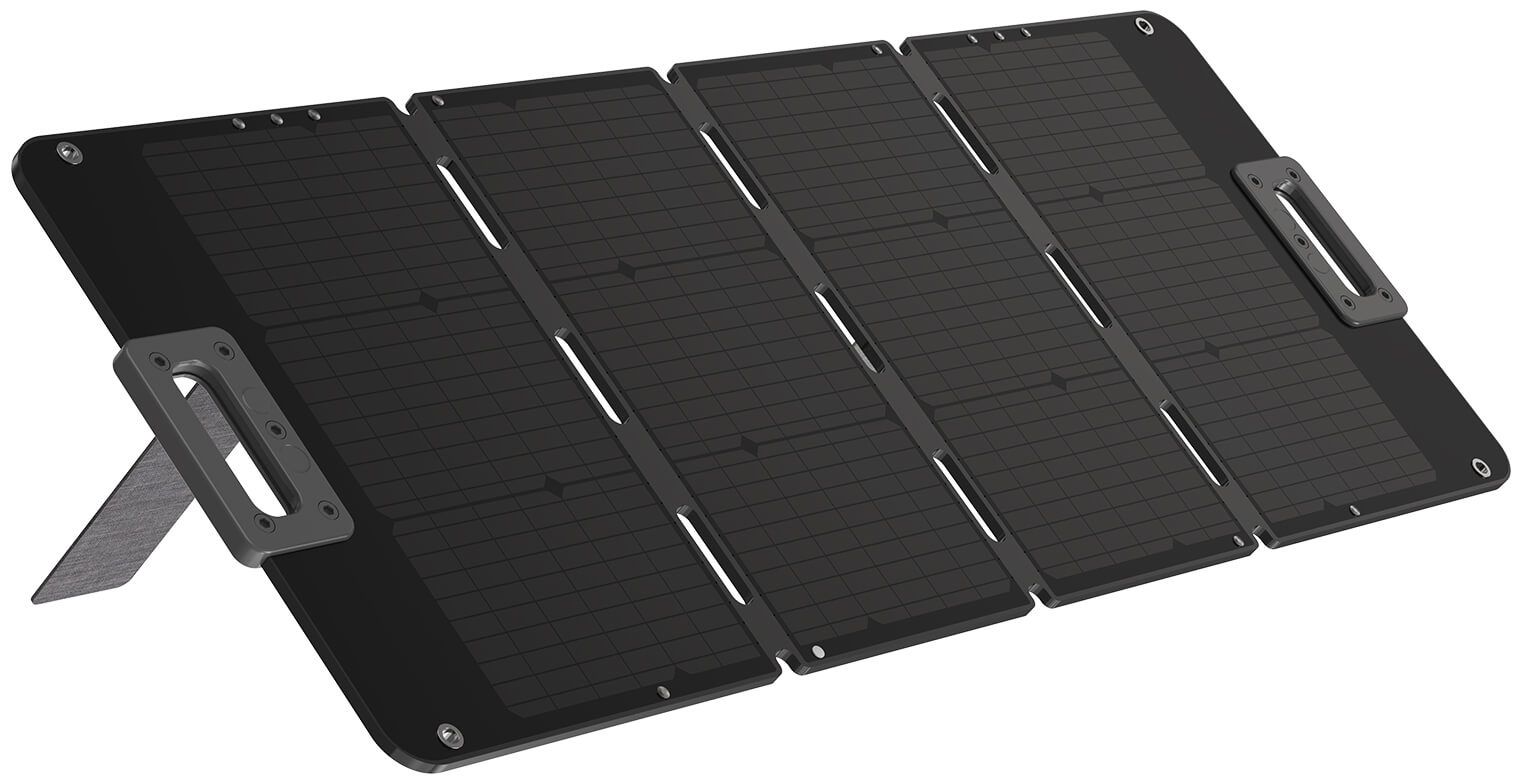

- Adjustable Stand: Simply use the built-in kickstand to prop up your solar panel at the best angle – from 25 to 60 degrees – to optimize the available sunlight.
