GJD IPAnything – GJD519
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
In depth product detail

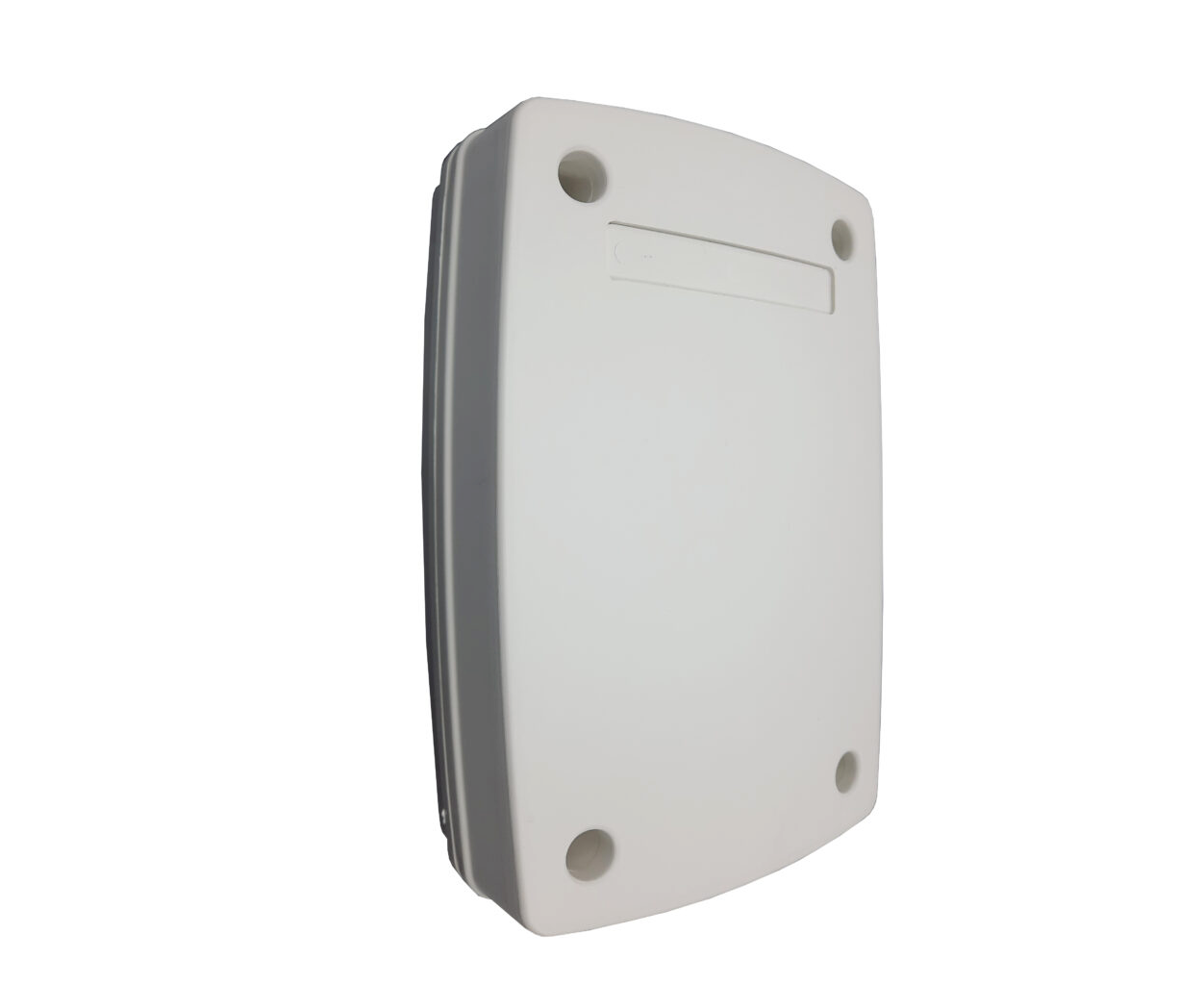

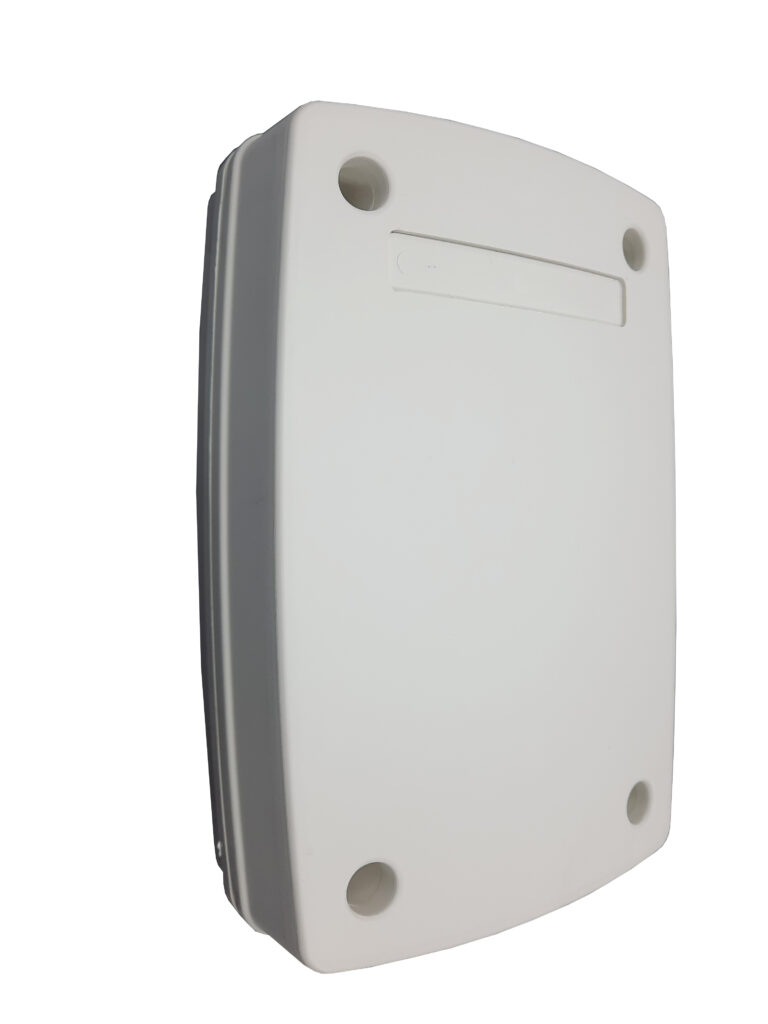

The IPA is a simple yet powerful input/output controller which is designed to convert any type of analogue sensor to an IP system, or vice versa. It is built in a compact, heavy duty waterproof housing and can be powered by PoE or 12/24V with four alarm inputs, three relay outputs and an analogue input, this ensures that the IPAnything can truly handle all types of equipment.
Key Features
-Convert input signals to IP alarms -Integrate alarms with VMS or control cameras directly -12V/24V DC output for powering external units -Network controlled relay outputs -Intuitive and powerful web based user interface -Heavy duty water proof design -Power over Ethernet
Supported VMS Software
AXIS, Milestone, Genetic, Mirasys, Wavestore, Network Optic, Bosch, SeeTec, Concept Pro, Embsec, QNAP, Griffid, Kentima, Qulu, M2M VX Pro, Hikvision
Supported Cameras for Direct Control
AXIS, LILIN, Hikvision, Dahua, Sony, Ernitec, Bosch, Genie, Mobotix
Supported Home Automation Software
Control 4, RTI, Crestron, Lutron, URC, Rako
