Haydon HAY-DC JACK PLUG FEMALE 12V DC Female Jack Plug Adapter – 2.1mm Screw Terminal Power Connector – Pack of 10
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-DC JACK PLUG FEMALE 12V DC Female Jack Plug Adapter – 2.1mm Screw Terminal Power Connector – Pack of 10

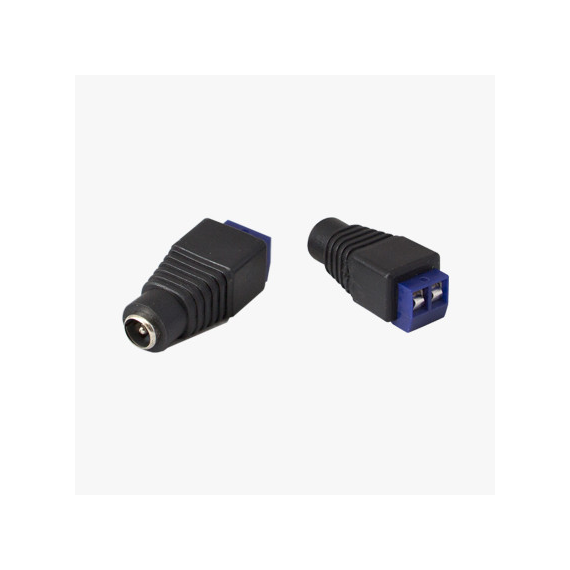

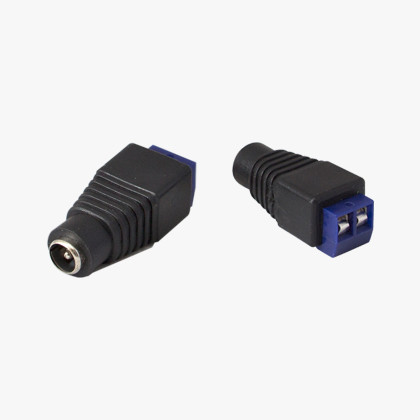

The Haydon HAY-DC JACK PLUG FEMALE is a professional 12V DC female power jack adapter designed to provide a fast, secure and solder-free method of connecting low-voltage power cables. Featuring a 2.1mm DC female barrel socket on one end and a 2-pin screw terminal on the other, it offers a practical solution for powering CCTV cameras, LED lighting, access control systems, alarm equipment and other 12V DC devices. Supplied in a convenient pack of 10, it is ideal for professional installers, electricians and maintenance engineers.
The integrated screw terminal allows stripped cable ends to be securely fastened using a standard screwdriver, eliminating the need for soldering or cutting factory-fitted power leads. This simplifies installation, reduces wiring time and provides a reliable electrical connection suitable for both temporary and permanent applications. The adapter is particularly useful when installing CCTV cameras or connecting low-voltage power supplies where quick cable termination is required.
Manufactured from durable plastic and metal components, the connector is built to withstand regular use in demanding security and electrical installations. The industry-standard 2.1mm DC female barrel connector is compatible with a wide variety of CCTV power supplies, LED drivers, DVRs, access control equipment and other low-voltage DC devices using standard barrel connectors.
KEY FEATURES
- Professional 12V DC female jack plug adapter
- Standard 2.1mm DC female barrel socket
- 2-pin screw terminal for quick cable connection
- Solder-free installation
- Secure screw terminal design
- Eliminates the need to cut factory-fitted power leads
- Ideal for CCTV camera power connections
- Suitable for LED lighting installations
- Compatible with access control and alarm systems
- Reliable low-voltage DC power connection
- Compact inline adapter design
- Durable plastic and metal construction
- Simple installation using a standard screwdriver
- Suitable for residential, commercial and industrial applications
