Haydon HAY-JB100 IP65 Weatherproof Junction Box – 100 × 100 × 50mm ABS Surface-Mount Electrical Enclosure
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-JB100 IP65 Weatherproof Junction Box – 100 × 100 × 50mm ABS Surface-Mount Electrical Enclosure

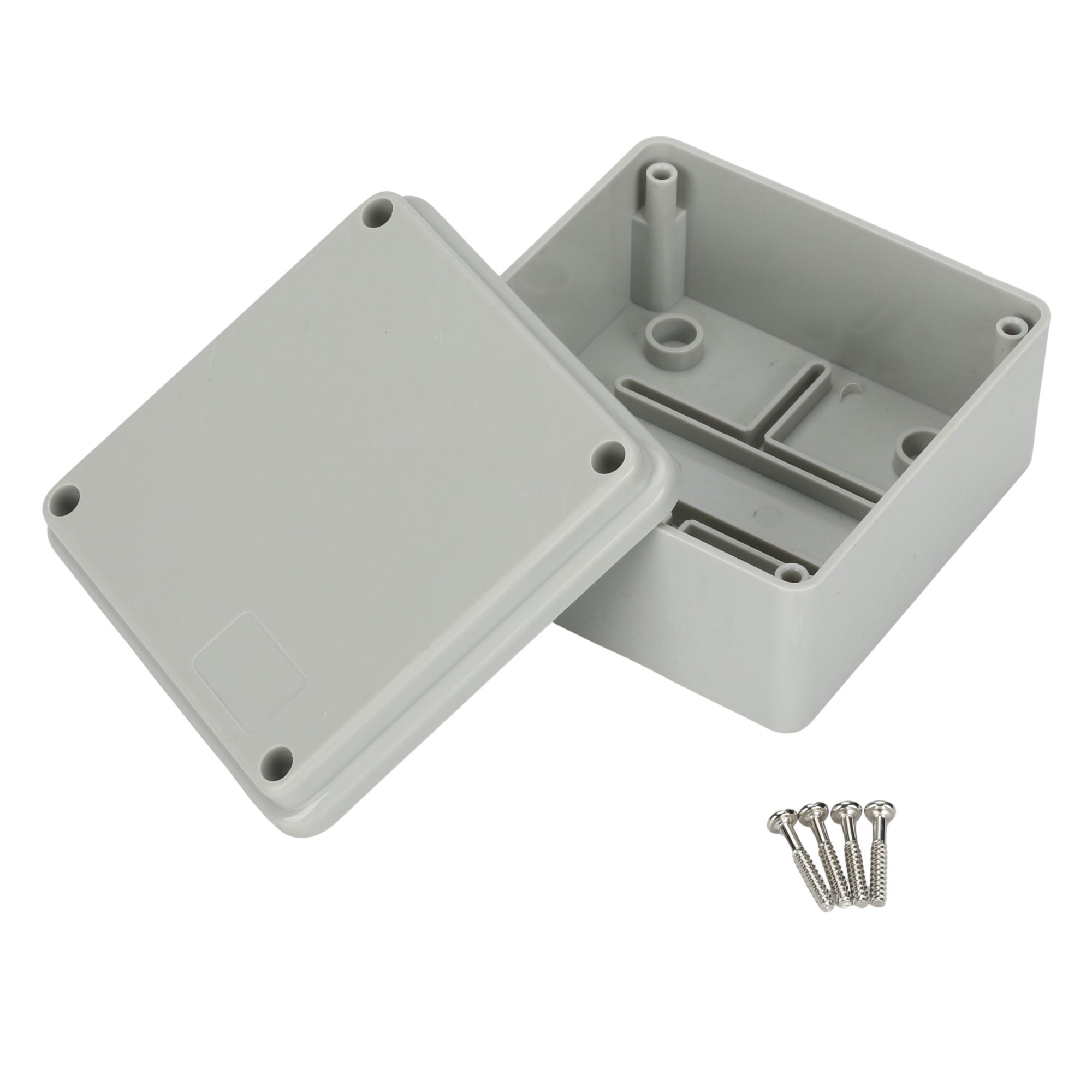

The Haydon HAY-JB100 IP65 Weatherproof Junction Box is a compact, professional-grade surface-mounted electrical enclosure designed to protect cable terminations and electrical connections in both indoor and outdoor installations. Measuring 100 × 100 × 50mm, this robust enclosure provides reliable protection for low-voltage wiring, CCTV systems, security equipment, networking infrastructure and general electrical applications where a sealed connection point is required.
Manufactured from high-quality halogen-free ABS, the HAY-JB100 combines excellent impact resistance with long-term durability whilst remaining lightweight and corrosion-resistant. Its IP65-rated construction protects internal wiring against dust ingress and water jets, making it suitable for exposed outdoor installations as well as demanding commercial and industrial environments. The enclosure also complies with Class II insulation requirements (IEC 61140), providing an additional level of electrical safety.
KEY FEATURES
- Professional IP65 weatherproof junction box
- Compact 100 × 100 × 50mm enclosure
- Durable halogen-free ABS construction
- Surface-mounted installation
- IP65 protection against dust and water jets
- Class II insulation (IEC 61140)
- Four metal lid fixing screws
- Secure weather-resistant cover
- Suitable for indoor and outdoor use
- Ideal for CCTV and security installations
- Perfect for low-voltage electrical wiring
- Suitable for alarm and access control systems
