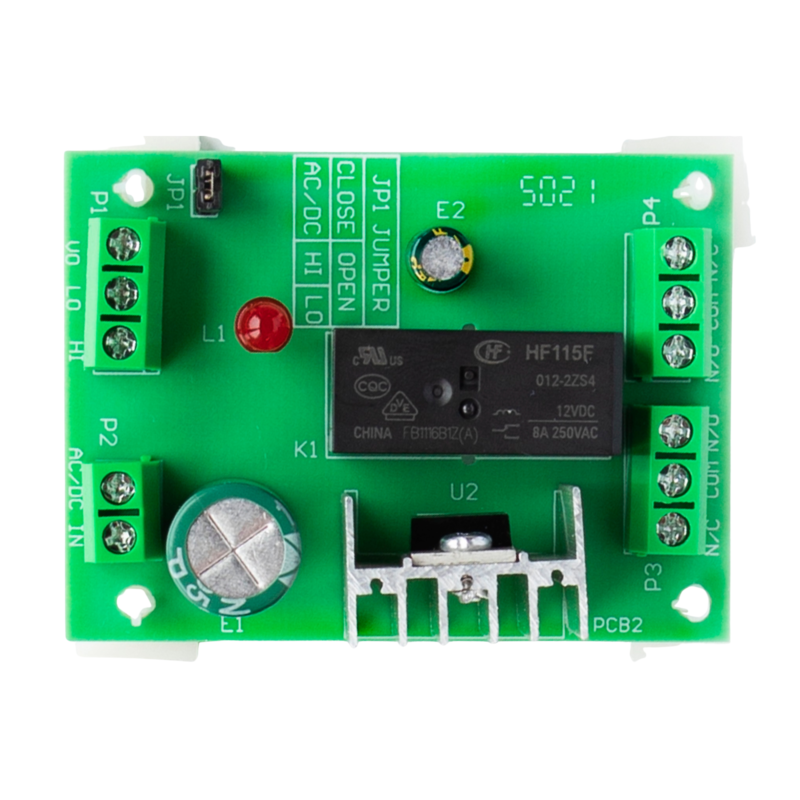

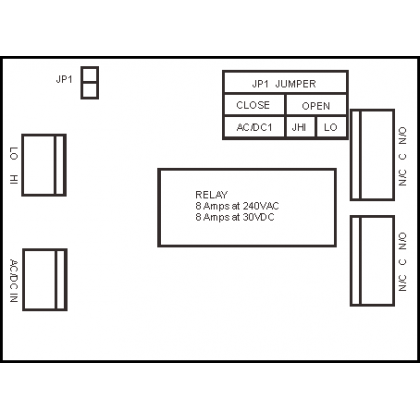

Haydon HAY-MPRACDC-8A Universal AC/DC DPDT Relay Module 8A with Automatic Voltage Selection
The Haydon HAY-MPRACDC-8A is a compact universal AC/DC relay module engineered for professional security, access control, CCTV and building management installations. Designed to provide reliable voltage-free (dry contact) switching, the module enables low-voltage control circuits to safely switch higher-current electrical loads whilst maintaining complete electrical isolation between the control and switching circuits.
Unlike conventional relay modules that require separate AC and DC versions, the HAY-MPRACDC-8A automatically detects the input supply, operating from 9–30V AC or 10.5–36V DC without requiring jumper links or manual configuration. Its non-polarity-sensitive design further simplifies installation, reducing wiring errors and making it suitable for a wide range of security and automation systems.
The module incorporates a DPDT (Double Pole Double Throw) relay with contacts rated at 8A, capable of switching loads up to 240V AC or 30V DC. This allows installers to control two independent circuits simultaneously or use changeover contacts for more advanced switching applications. The relay can be triggered directly from a power supply, high-level signal or low-level signal, providing exceptional installation flexibility.
KEY FEATURES
- Universal AC/DC relay module
- Operates on 9–30V AC or 10.5–36V DC
- Automatic voltage selection
- No jumper links required
- Non-polarity-sensitive input
- DPDT (Double Pole Double Throw) relay
- Contact rating up to 8A
- Switches up to 240V AC or 30V DC
- Triggered by power supply, high or low signal
- LED relay status indicator
- Energy-saving relay coil
- Low nominal coil current
- Compact installation design
- Ideal for CCTV, access control and automation systems
