Haydon HAY-PSU12V1ABB 12V DC 1A Boxed Switch Mode Power Supply with 13.8V Battery Backup for Security Systems

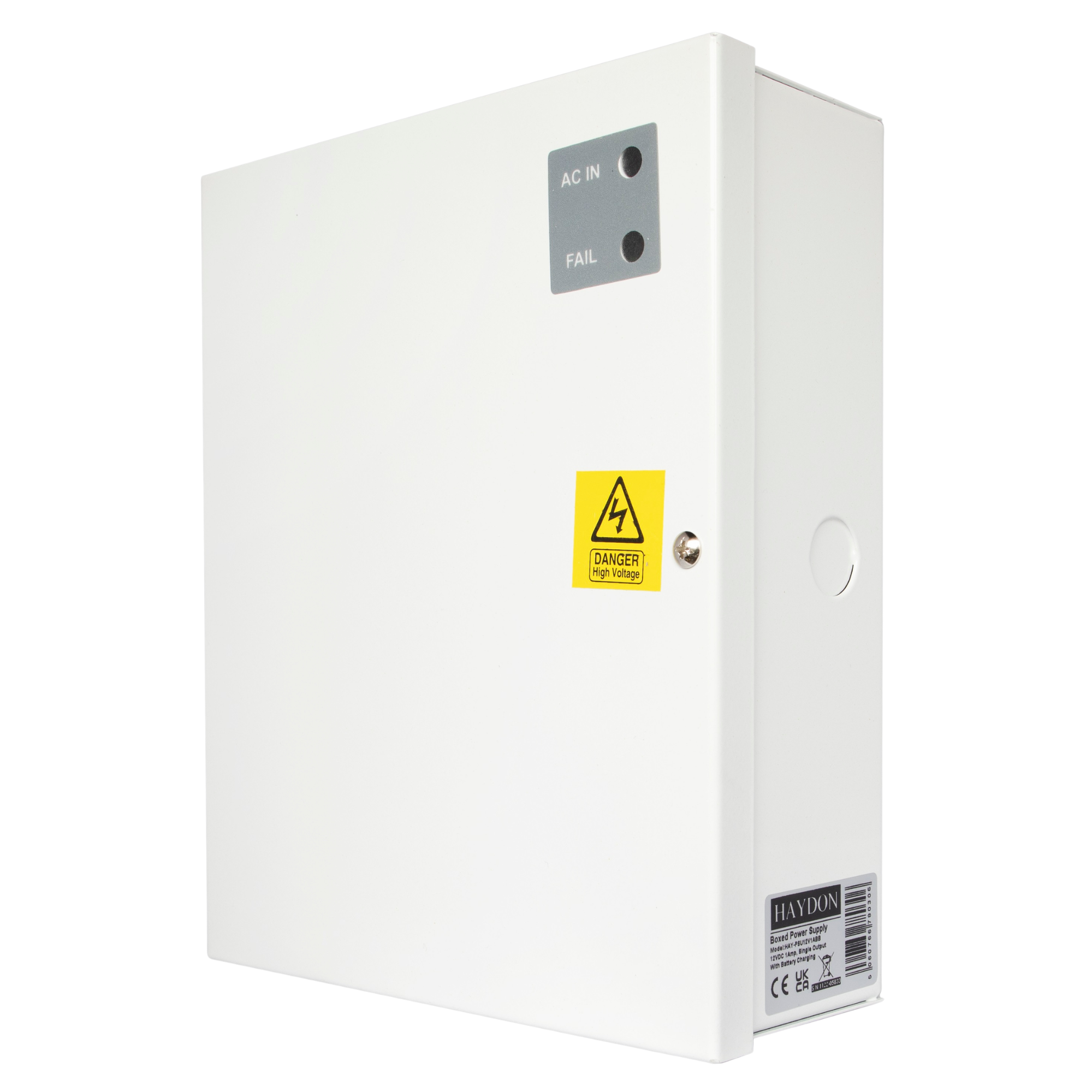

The Haydon HAY-PSU12V1ABB is a high-efficiency 12V DC boxed power supply with battery backup designed for professional security installations where reliable continuous power is essential. Suitable for intruder alarm systems, access control equipment, door controllers and other low-voltage security devices, the unit combines regulated DC output with intelligent battery charging in a compact, installer-friendly enclosure.
Powered from a universal 90–264V AC mains input, the PSU delivers a regulated 13.8V DC nominal output during normal operation with a maximum continuous load current of 1A. During a mains power failure, the unit automatically switches to the connected standby battery, supplying approximately 10.0–12.3V DC to maintain operation of connected equipment without interruption. It supports a 12V 7Ah sealed lead-acid battery and provides a dedicated 0.5A charging circuit to maintain the battery in optimum condition. Battery not included.
Designed for dependable long-term operation, the HAY-PSU12V1ABB incorporates electronic overload and short-circuit protection, automatically shutting down the output during fault conditions under mains operation to protect both the PSU and connected devices. Integrated mains transient protection helps reduce the impact of electrical surges and voltage spikes, improving overall system reliability.
KEY FEATURES
- Regulated 12V DC switch mode power supply
- 13.8V nominal output during mains operation
- Maximum continuous output current of 1A
- Universal 90–264V AC input
- Integrated battery backup charging circuit
- Supports one 12V 7Ah sealed lead-acid battery
- Maximum 0.5A battery charging current
- Automatic changeover during mains failure
- Electronic overload protection
- Electronic short-circuit protection
- Mains transient protection
- Lid and rear anti-vandal tamper detection
- Green mains present LED
- Red fault LED indicator

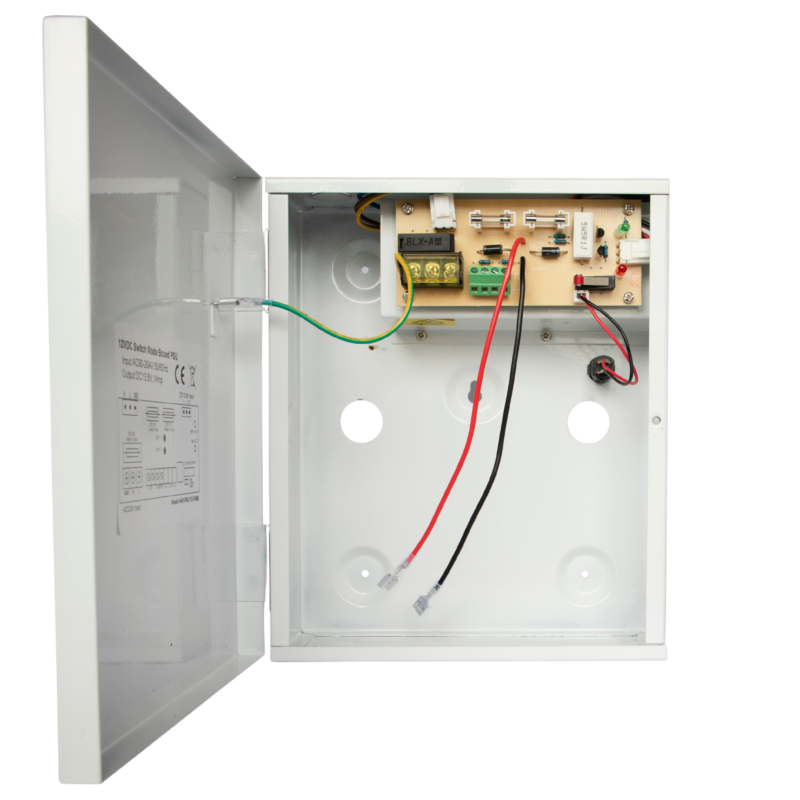

- Hinged steel enclosure
- Installer-safe fully shrouded high-voltage electronics
