Haydon HAY-PSU12V2ABB 12V DC 2A Boxed Switch Mode Power Supply with 13.8V Battery Backup for Security Systems
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

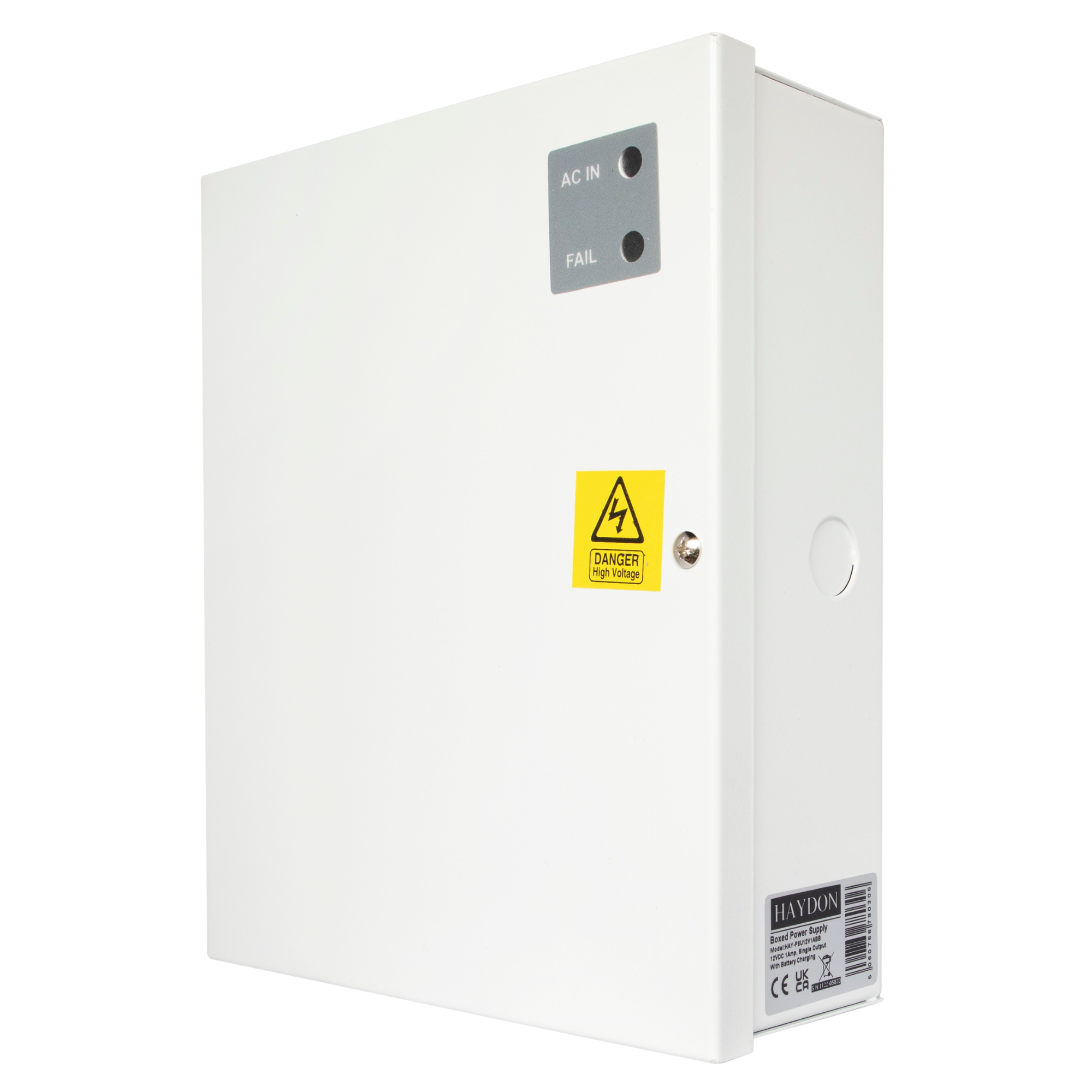

Haydon HAY-PSU12V2ABB 12V DC 2A Boxed Switch Mode Power Supply with 13.8V Battery Backup for Security Systems
The Haydon HAY-PSU12V2ABB is a high-efficiency 12V DC switch mode power supply with integrated battery backup designed specifically for professional security installations where uninterrupted power is essential. Suitable for intruder alarm panels, access control systems, door controllers and other low-voltage security equipment, it combines regulated power delivery with intelligent battery charging inside a compact steel enclosure.
Operating from a universal 90–264V AC mains input, the power supply delivers a stable 13.8V DC nominal output with a maximum continuous load current of 2A. During normal operation, the built-in charging circuit maintains a connected 12V 7Ah sealed lead-acid battery, ensuring it remains fully charged and ready for emergency use. If mains power is interrupted, the PSU automatically transfers to battery operation, maintaining power to connected equipment without interruption. Battery not included.
Designed for dependable long-term performance, the HAY-PSU12V2ABB incorporates electronic overload and short-circuit protection, automatically shutting down the load output under fault conditions during mains operation. Integrated mains transient protection further safeguards both the PSU and connected devices from voltage spikes and electrical disturbances, helping maximise equipment reliability.
KEY FEATURES
- Regulated 12V DC switch mode power supply
- 13.8V nominal output during mains operation
- Maximum continuous output current of 2A
- Universal 90–264V AC input
- Integrated 13.8V battery charging circuit
- Supports one 12V 7Ah sealed lead-acid battery
- Maximum battery charging current of 0.5A
- Automatic battery backup during mains failure
- Electronic overload protection
- Electronic short-circuit protection
- Mains transient protection
- Lid and rear anti-vandal tamper detection
- Green mains status LED
- Red fault LED indicator

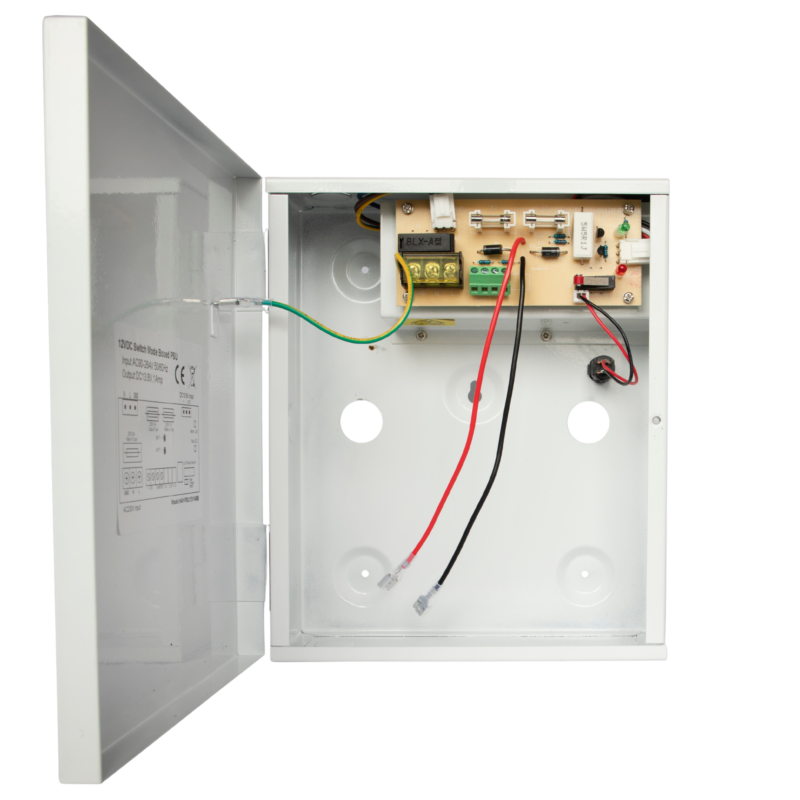

- Hinged steel enclosure
- Installer-safe fully shrouded high-voltage electronics
