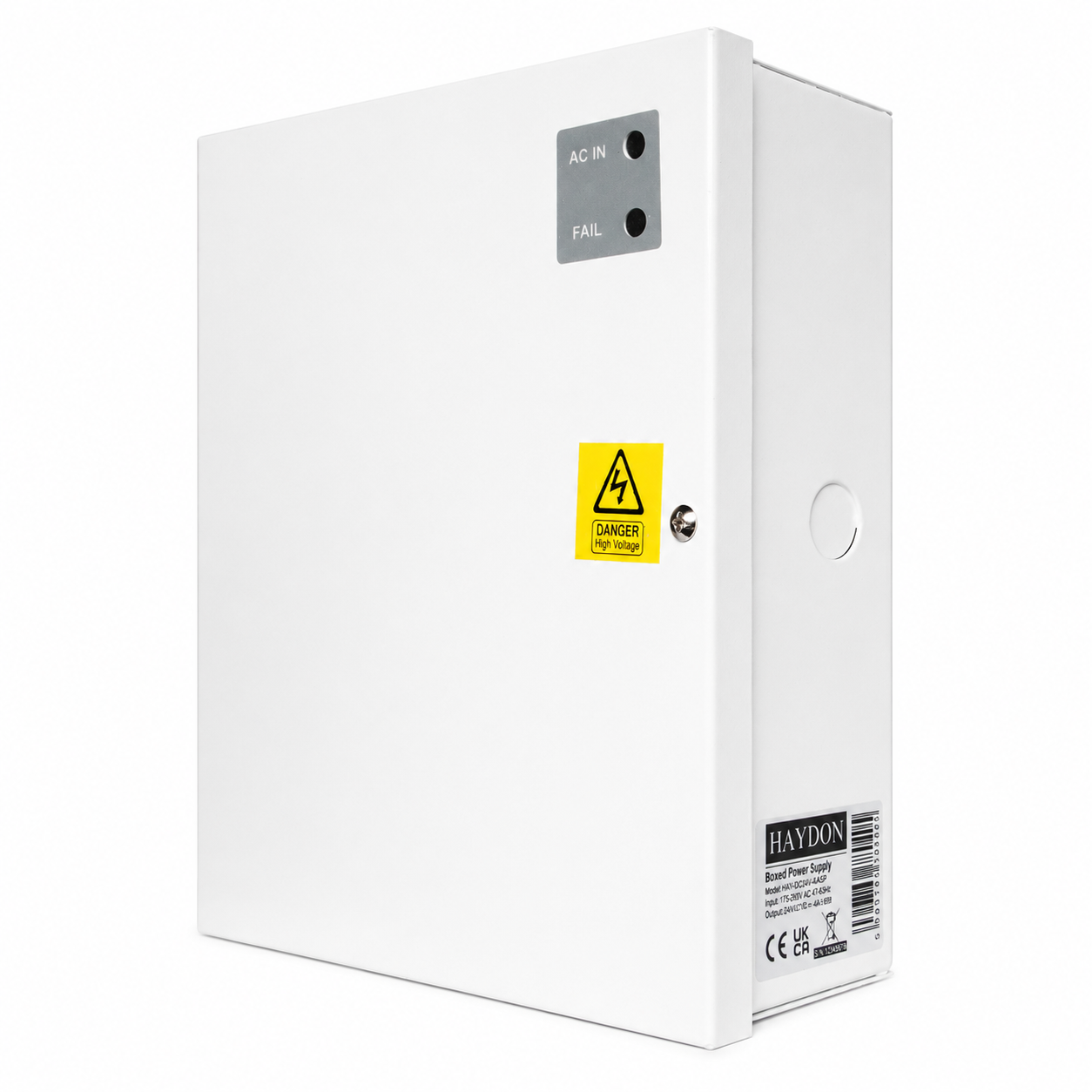

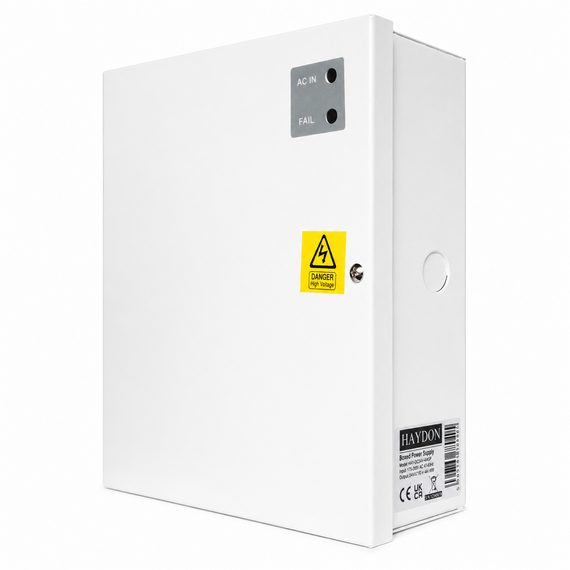

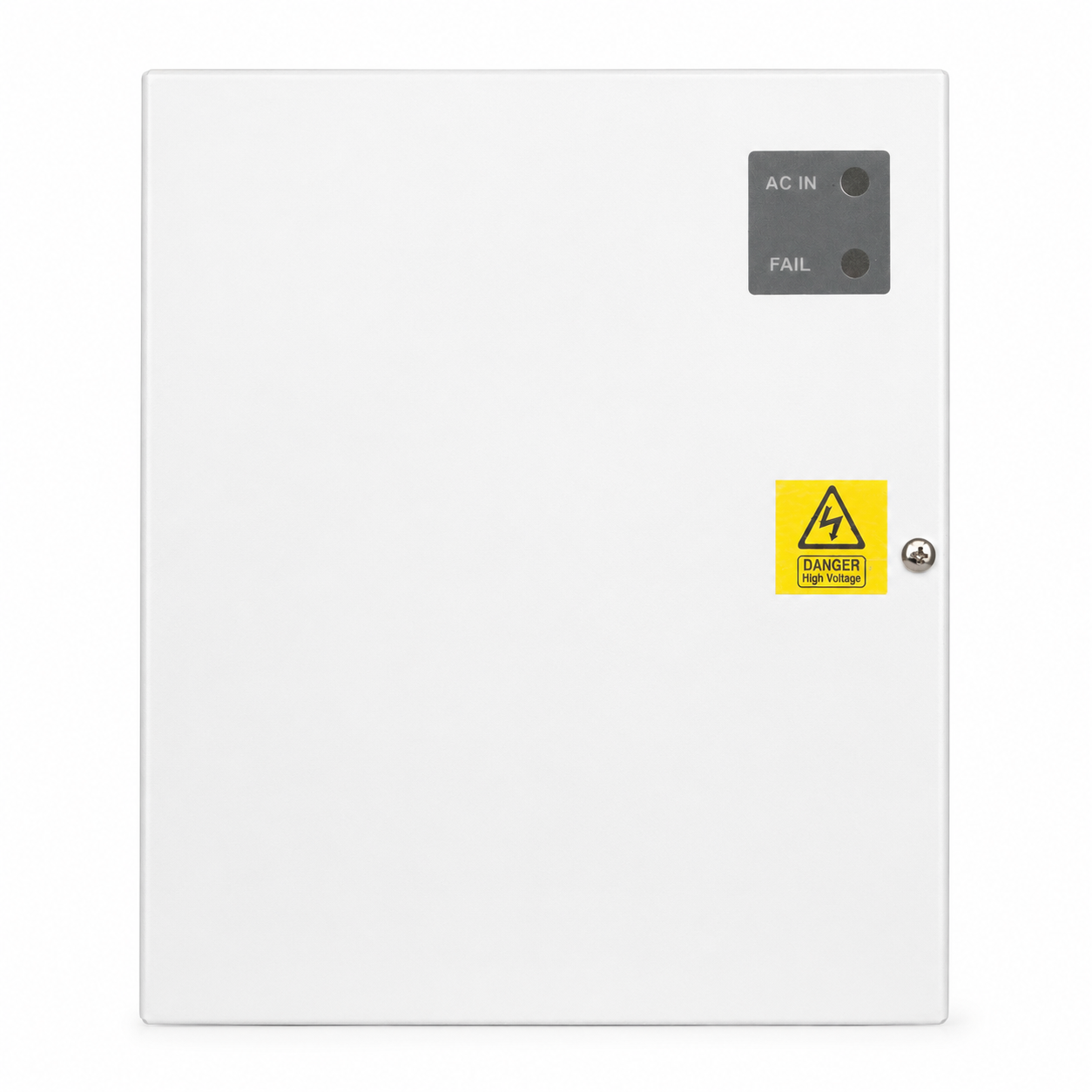

Haydon HAY-PSU24V1ASMSP 24V DC 1A Boxed Power Supply with Fire Alarm Input Relay

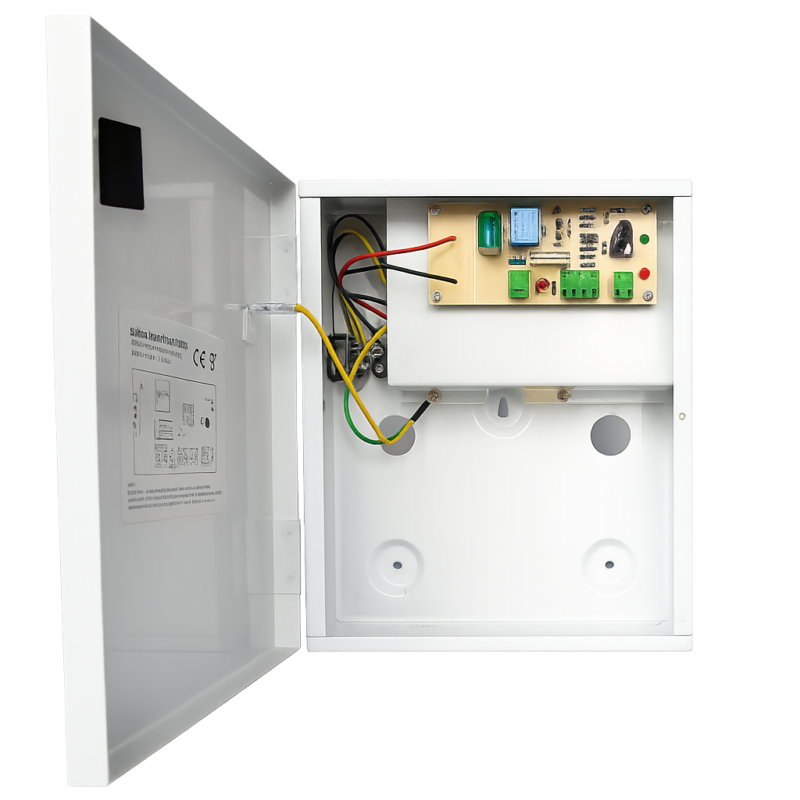

The Haydon HAY-PSU24V1ASMSP is a high-quality 24V DC boxed switch-mode power supply engineered to provide dependable power for access control systems, magnetic door retainers, emergency door release systems and other professional security applications. Designed for continuous operation, the unit delivers a stable 24V DC regulated output with the output limited to ±10% to ensure reliable voltage stability for connected equipment.
Powered from a 170–264V AC mains supply, the PSU delivers up to 1A of regulated DC output (24W), making it suitable for a wide range of security and life safety equipment requiring a consistent 24V DC supply. High-efficiency switch-mode electronics help reduce running costs while maintaining lower operating temperatures for improved long-term reliability.
A key feature of the HAY-PSU24V1ASMSP is its integrated fire alarm input relay, allowing seamless integration with fire alarm systems. The relay includes selectable Normally Open (NO) or Normally Closed (NC) operation together with an external 24V DC relay input, making the unit particularly suitable for magnetic door holders and emergency door release applications where power must be interrupted during a fire alarm event.
KEY FEATURES
- Regulated 24V DC output
- Maximum output current of 1A
- 24W maximum output power
- High-efficiency switch-mode power supply
- Output stability limited to ±10%
- Fire alarm input relay
- Selectable NO/NC relay input
- External 24V DC relay input
- Electronic short-circuit protection
- Electronic overload protection
- Lid tamper detection
- Green mains LED indicator
- Red fault LED indicator
- Durable steel enclosure
- Wall-mounted installation
- Ideal for access control and magnetic door retainers
