Haydon HAY-PSUIP1X2A 12VDC IP66 12V DC 2A Outdoor Single Output Power Supply
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

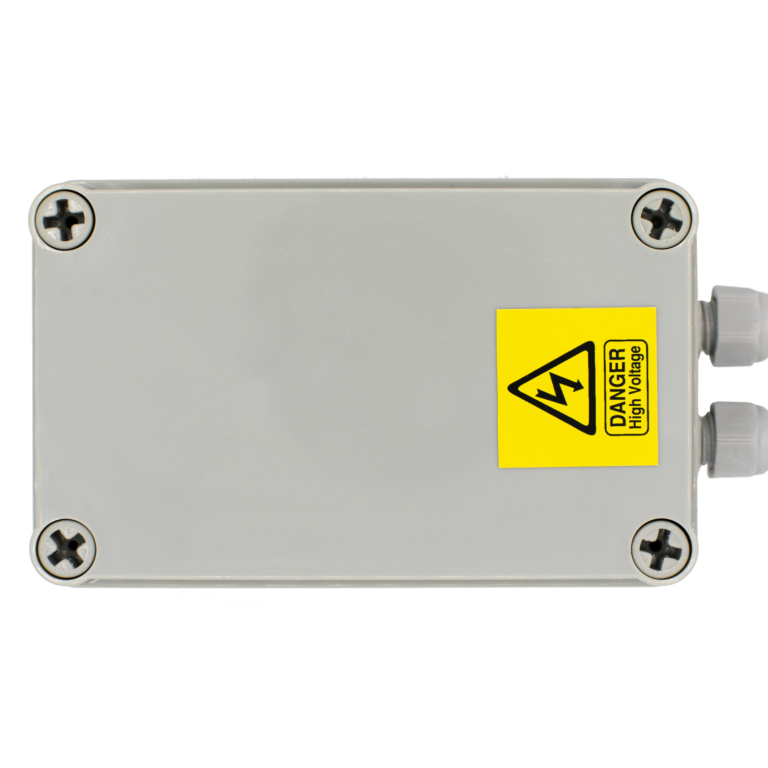

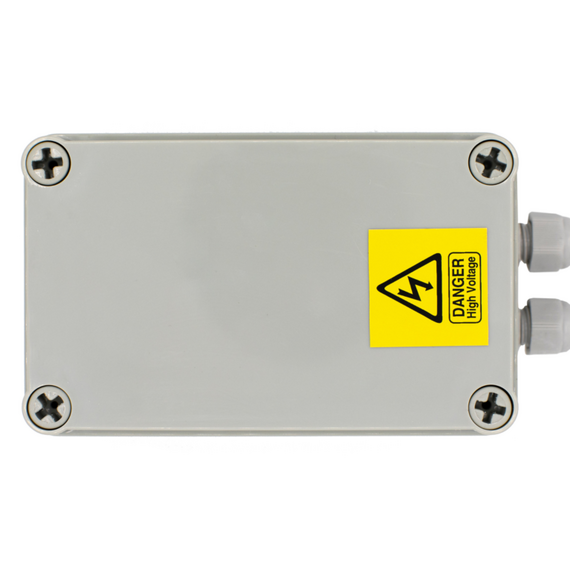

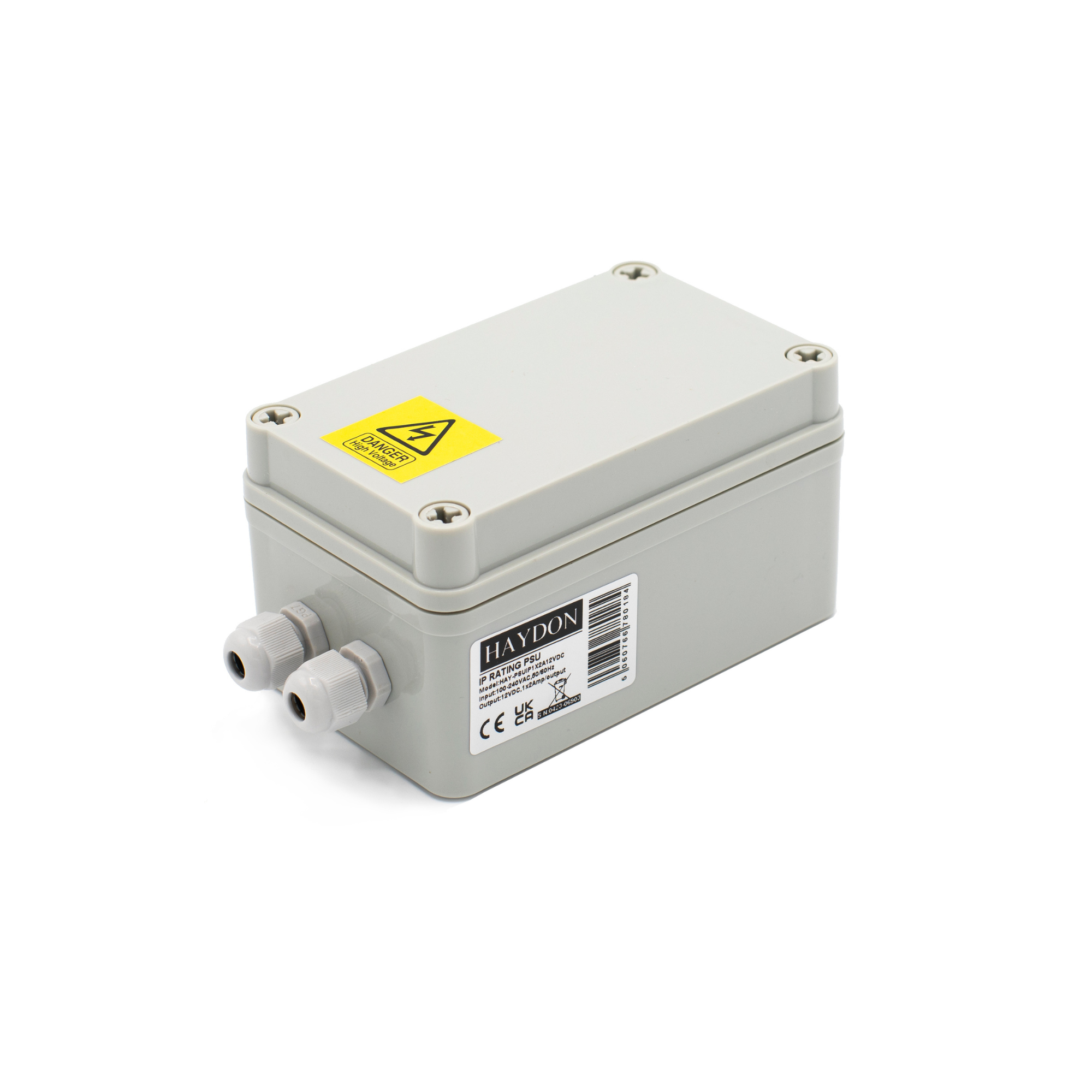

Haydon HAY-PSUIP1X2A 12VDC IP66 12V DC 2A Outdoor Single Output Power Supply
The Haydon HAY-PSUIP1X2A 12VDC is a high-quality IP66-rated outdoor power supply engineered to deliver reliable and regulated power for CCTV cameras, access control devices and other 12V DC security equipment installed in exposed environments. Its robust weatherproof construction eliminates the need for an additional waterproof enclosure, making installation faster, neater and more cost-effective.
Designed to operate from a universal 100–240V AC mains input, the unit provides a stable 12V DC regulated output with a maximum current of 2A, delivering up to 24W of power for compatible devices. This makes it suitable for fixed CCTV cameras, infrared cameras, external access control equipment, gate automation accessories and other low-voltage security systems.
KEY FEATURES
- IP66-rated weatherproof enclosure
- Regulated 12V DC single output
- Maximum output current: 2A
- 24W maximum output power
- Universal 100–240V AC input
- Auto-reset 2.5A PTC output fuse
- Built-in surge protection
- Durable grey polycarbonate enclosure
- Suitable for outdoor installation
- Compact wall-mount design
- Ideal for CCTV cameras and access control equipment
