Haydon HAY-RCAM-BNCM RCA Male to BNC Male Adapter – Professional Audio & CCTV Connector – Pack of 10
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-RCAM-BNCM RCA Male to BNC Male Adapter – Professional Audio & CCTV Connector – Pack of 10

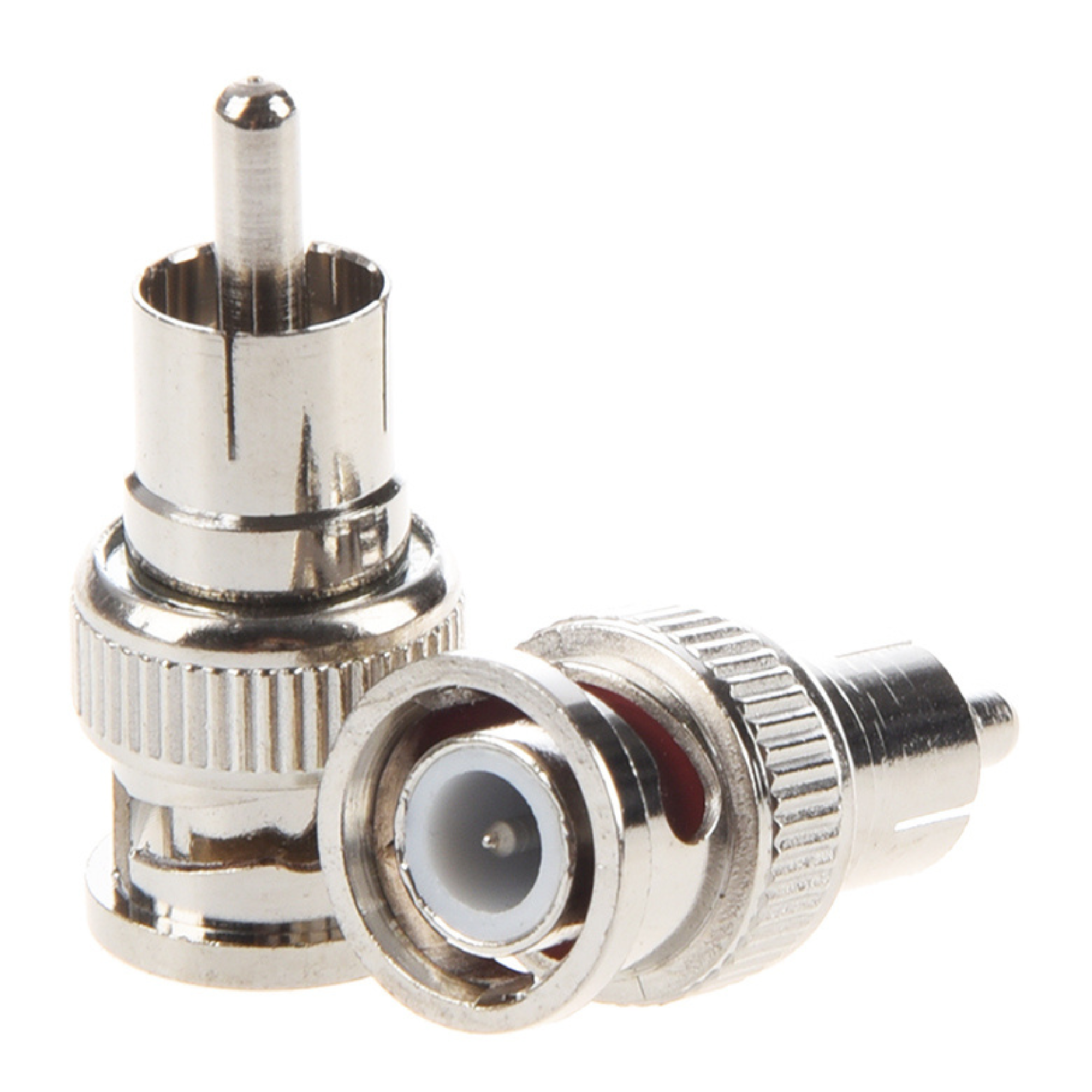

The Haydon HAY-RCAM-BNCM RCA Male to BNC Male Adapter is a professional-quality connector designed to provide a reliable interface between RCA and BNC connections in CCTV, analogue video, AV and broadcast applications. Featuring an RCA male connector on one end and a BNC male connector on the other, it offers a simple and effective solution for connecting equipment that uses different video connector standards.
Manufactured with a durable metal body, the adapter delivers dependable mechanical strength and long-lasting performance in both permanent and temporary installations. The BNC bayonet locking mechanism provides a secure connection that helps prevent accidental disconnection, whilst the RCA connector ensures a firm fit with compatible audio and video equipment.
Ideal for professional CCTV installers, AV engineers and system integrators, the HAY-RCAM-BNCM enables quick connection between CCTV cameras, DVRs, monitors, video capture devices, test equipment and legacy AV equipment. Its compact design allows for easy installation in confined spaces without the need for additional cables or complex adapters.
KEY FEATURES
- Professional RCA male to BNC male adapter
- Connects RCA equipment to BNC interfaces
- Suitable for analogue video and CCTV applications
- Durable metal body construction
- Secure BNC bayonet locking mechanism
- Reliable signal transmission
- Compact inline adapter design
- Quick plug-and-play installation
- No specialist tools required
- Ideal for CCTV cameras, DVRs and monitors
- Suitable for AV, broadcast and video testing equipment
- Perfect for system upgrades and maintenance
- Compatible with standard RCA and BNC connectors
- Suitable for residential, commercial and industrial installations
- Supplied in a pack of 10 adapters
No reviews found
