Haydon HAY-RJ45CAT5-50 RJ45 Cat5e Crimp Connectors – 8P8C Gold-Plated Ethernet Plugs – Pack of 50
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

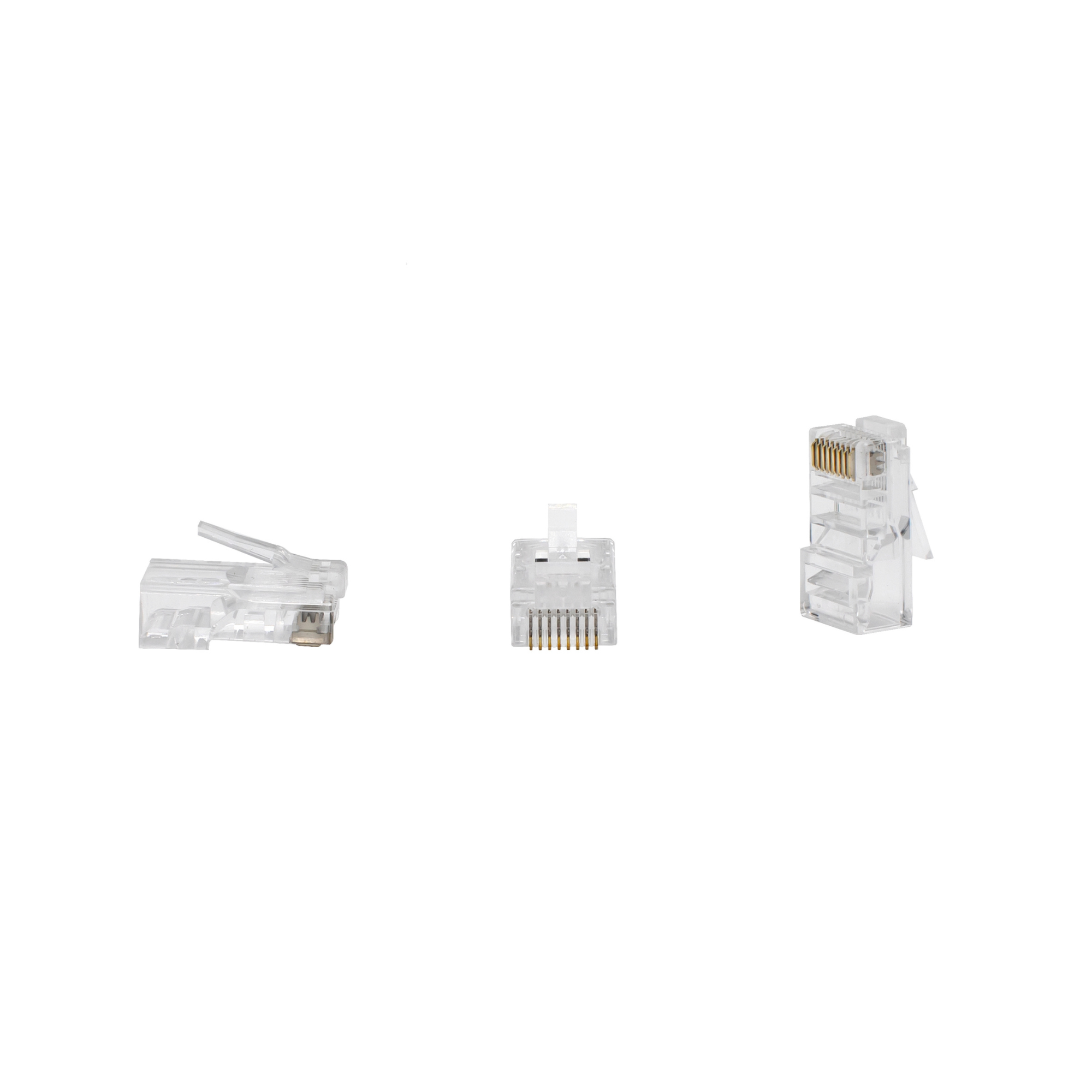

Haydon HAY-RJ45CAT5-50 RJ45 Cat5e Crimp Connectors – 8P8C Gold-Plated Ethernet Plugs – Pack of 50
The Haydon HAY-RJ45CAT5-50 RJ45 Cat5e Crimp Connectors are professional-quality 8P8C modular plugs designed for terminating Cat5e UTP network cables in data networking, CCTV, access control and structured cabling installations. Supplied in a convenient pack of 50, these connectors are ideal for installers, IT engineers and security professionals undertaking network installations and cable assembly.
Featuring gold-plated contacts, the connectors provide excellent conductivity and dependable signal transmission, helping to maintain reliable Ethernet performance across Cat5e networks. Designed for use with standard RJ45 crimping tools, they create a secure mechanical and electrical connection for long-lasting network reliability.
The industry-standard 8-position, 8-contact (8P8C) design ensures compatibility with a wide range of Cat5e networking equipment, including network switches, routers, patch panels, IP cameras, computers, VoIP phones and other Ethernet-enabled devices. Whether you're creating custom patch leads, replacing damaged connectors or installing structured cabling, these RJ45 plugs deliver consistent professional results.
Suitable for residential, commercial and industrial applications, the HAY-RJ45CAT5-50 connectors are manufactured to provide reliable performance in demanding networking environments. Their high-quality construction helps reduce connection failures whilst supporting stable data communication for CCTV systems, office networks and telecommunications infrastructure.
KEY FEATURES
- Professional RJ45 Cat5e crimp connectors
- Standard 8P8C (8-position, 8-contact) design
- Compatible with Cat5e UTP network cable
- Gold-plated contacts for improved conductivity
- Reliable Ethernet and network performance
- Suitable for standard RJ45 crimping tools
- Secure and durable cable termination
- Ideal for CCTV and IP surveillance systems
- Perfect for structured cabling installations
- Compatible with routers, switches and patch panels
- Suitable for network repairs and custom patch leads
- Professional-grade construction for dependable performance
- Designed for residential, commercial and industrial applications
- Easy to install with compatible crimp tools
- Supplied in a convenient pack of 50 connectors
