Haydon HAY-RJ45STRAIN50 RJ45 Cat5e/Cat6 Strain Relief Boots – Grey Network Cable Protection Sleeves – Pack of 50
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-RJ45STRAIN50 RJ45 Cat5e/Cat6 Strain Relief Boots – Grey Network Cable Protection Sleeves – Pack of 50

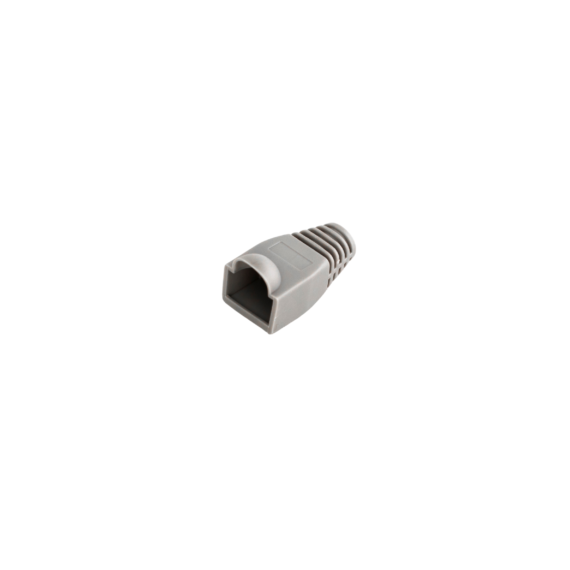

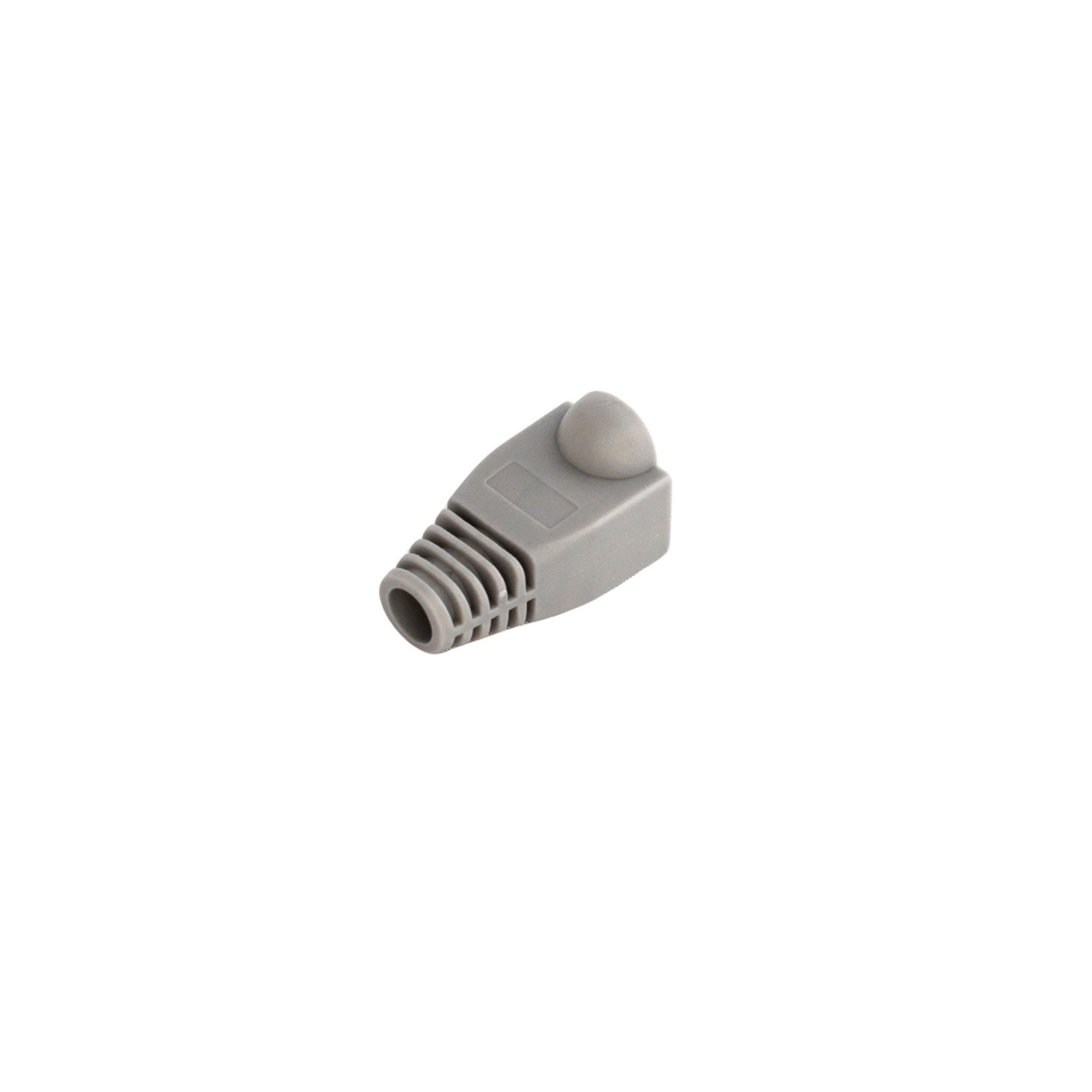

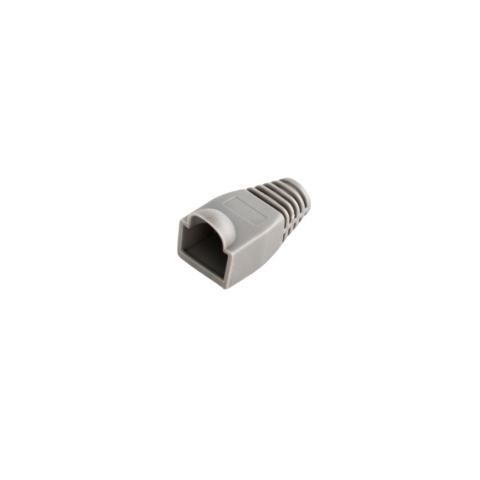

The Haydon HAY-RJ45STRAIN50 RJ45 Cat5e/Cat6 Strain Relief Boots are professional cable protection accessories designed to improve the durability and longevity of Cat5e and Cat6 Ethernet cable assemblies. Suitable for structured cabling, CCTV, IP surveillance, telecommunications and general networking applications, these strain relief boots help protect RJ45 connector terminations from excessive bending, pulling and mechanical stress.
Manufactured from a durable and flexible polymer, each boot slides over the network cable before the RJ45 connector is crimped into place. Once fitted, it provides additional support where the cable enters the connector, helping to reduce cable fatigue, minimise strain on the conductors and extend the service life of the cable assembly.
Finished in grey, these strain relief boots provide a neat and professional appearance whilst assisting with cable identification and organisation within network cabinets, patch panels, server racks and communications rooms. Their flexible design allows for quick installation without affecting the performance or accessibility of the RJ45 connector.
KEY FEATURES
- Supports tidy and organised cable installations
- Suitable for residential, commercial and industrial installations
- Perfect for patch leads and custom network cables
- Ideal for CCTV and IP surveillance networks
- Suitable for structured cabling systems
- Easy slide-on installation before connector termination
- Grey finish for professional cable management
- Durable and flexible polymer construction
- Extends the service life of Ethernet cable assemblies
- Helps reduce cable bending and fatigue
- Protects cable terminations from mechanical stress
- Designed for standard RJ45 connectors
- Compatible with Cat5e and Cat6 network cables
- Professional RJ45 strain relief boots
No reviews found
