Haydon HAY-SS350 350mm x 4.6mm Stainless Steel Self-Locking Cable Ties – Pack of 100
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

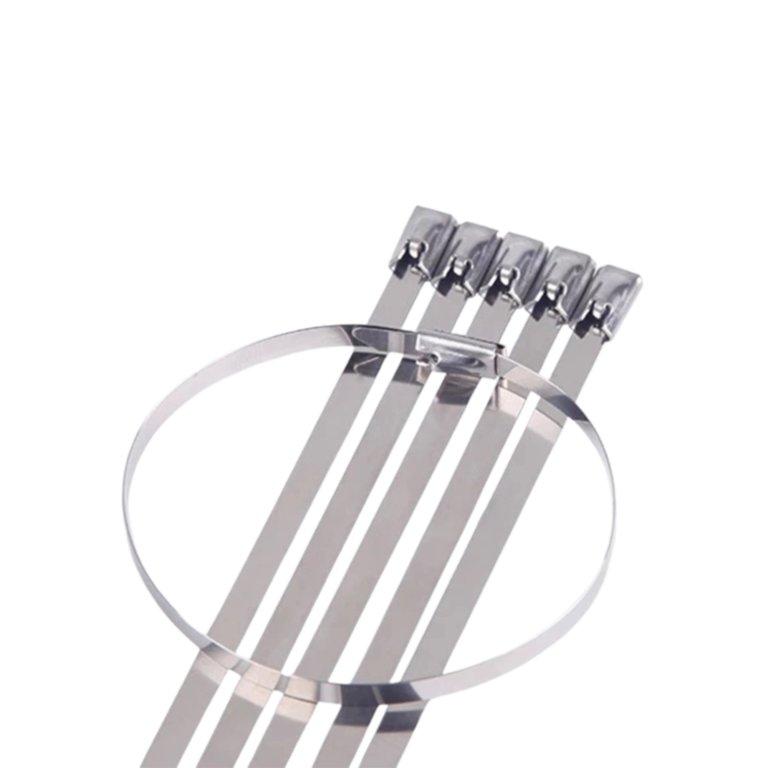

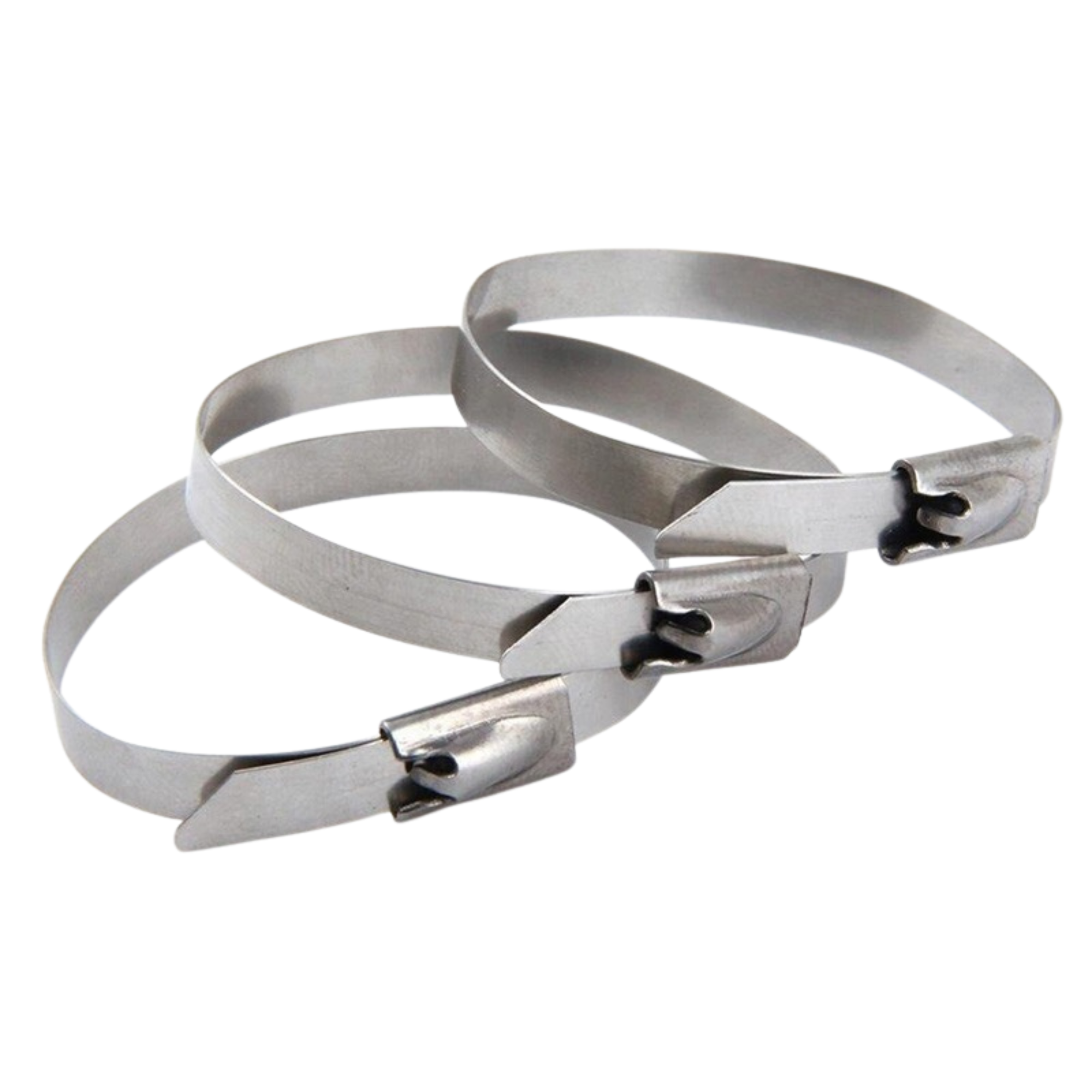

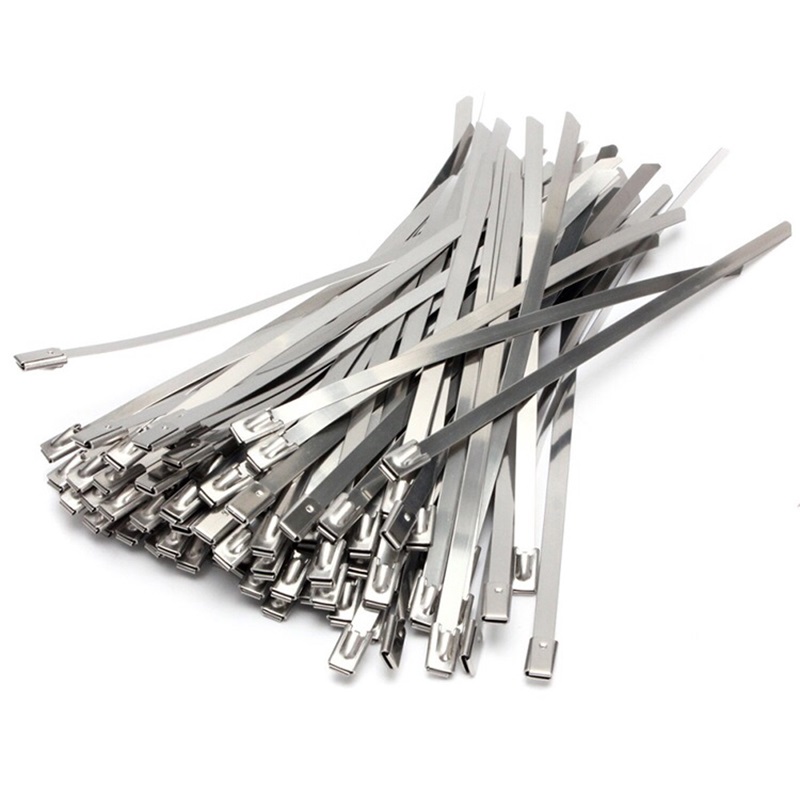

Haydon HAY-SS350 350mm x 4.6mm Stainless Steel Self-Locking Cable Ties – Pack of 100
The Haydon HAY-SS350 Stainless Steel Cable Ties are engineered to provide a reliable and durable fastening solution for professional cable management applications. Manufactured from high-quality stainless steel, these 350 mm x 4.6mm self-locking cable ties are designed for environments where high temperatures, corrosion resistance and mechanical strength are essential.
Featuring an integrated self-locking ball bearing mechanism, each cable tie provides fast, secure installation without the need for additional fasteners. Once tightened, the locking head ensures a permanent and tamper-resistant connection, making the ties suitable for long-term installations in demanding environments.
Unlike standard nylon cable ties, the HAY-SS350 is capable of operating in extreme temperatures ranging from -80°C to +500°C, making it particularly suitable for fire alarm systems, industrial equipment, marine installations, manufacturing facilities and outdoor applications. Its stainless steel construction also offers excellent resistance to corrosion, moisture, UV exposure and many chemicals, ensuring dependable performance even in harsh operating conditions.
KEY FEATURES
- 350mm × 4.6mm stainless steel cable ties
- Pack of 100 cable ties
- Self-locking ball bearing mechanism
- Manufactured from high-quality stainless steel
- High tensile strength of up to 80kg
- Excellent corrosion resistance
- Suitable for extreme temperatures from -80°C to +500°C
- Ideal for fire alarm and life safety installations
- UV and weather resistant
- Suitable for indoor and outdoor applications
- Quick and secure installation
- Designed for industrial, marine and commercial environments
