Haydon HAY-UY2 Gel-Filled 2-Wire IDC Splice Connectors – 19–26 AWG Waterproof Cable Connectors – Pack of 100
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-UY2 Gel-Filled 2-Wire IDC Splice Connectors – 19–26 AWG Waterproof Cable Connectors – Pack of 100

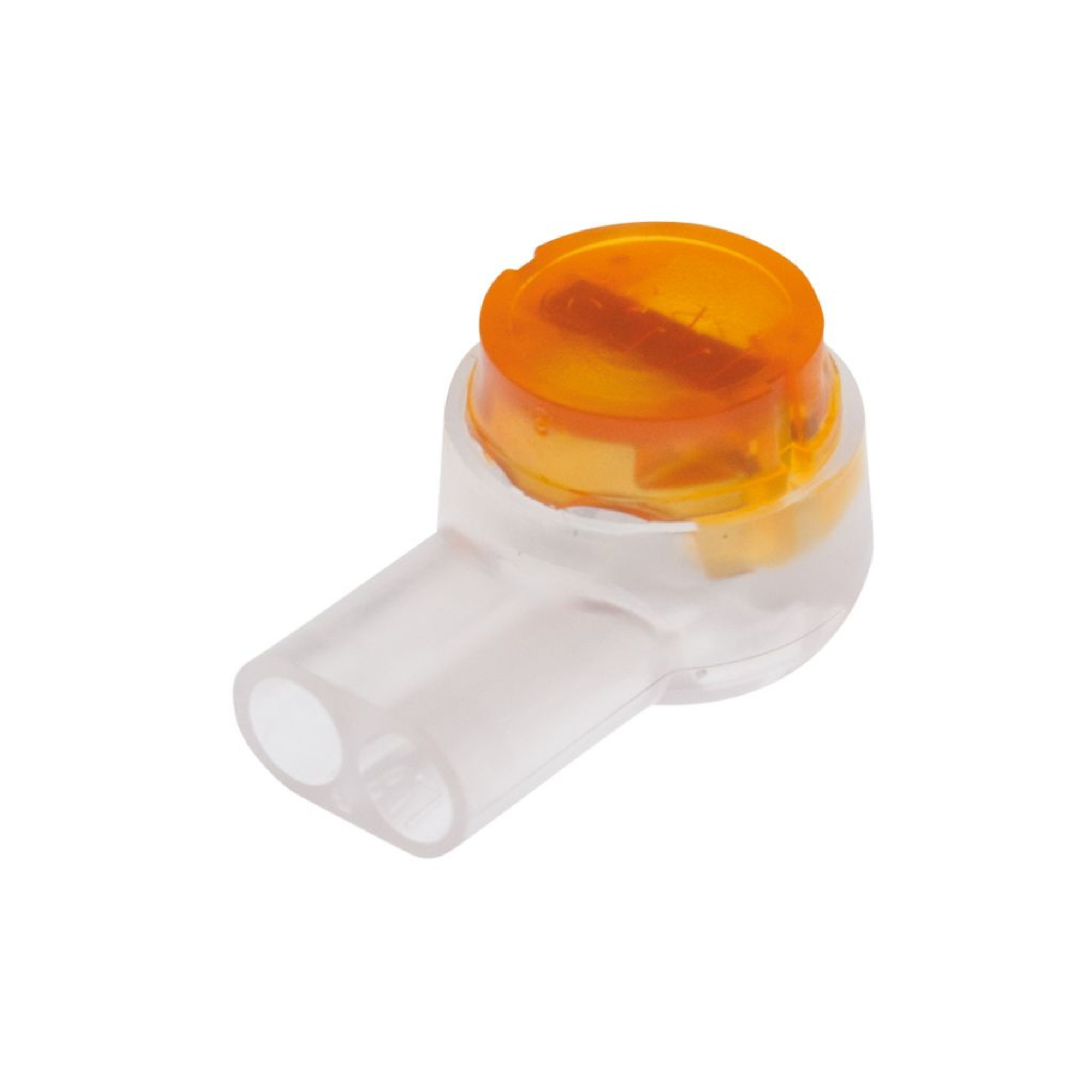

The Haydon HAY-UY2 Gel-Filled 2-Wire IDC Splice Connectors are professional-grade insulation displacement connectors (IDC) designed for fast, secure and moisture-resistant joining of two solid copper conductors. Suitable for 19–26 AWG (0.4–0.9mm) cable, these connectors eliminate the need for wire stripping, making them ideal for telecommunications, CCTV, alarm systems, intercoms, low-voltage wiring and signal cable repairs. They are supplied in a convenient pack of 100, making them perfect for installers, engineers and maintenance professionals.
Each connector is factory-filled with a protective gel sealant that helps resist moisture, corrosion and environmental contaminants, extending the lifespan of cable joints in both indoor and sheltered outdoor installations. During installation, the internal insulation displacement contact pierces the cable insulation to create a reliable electrical connection whilst maintaining a compact splice without requiring soldering or insulation removal.
Designed for solid copper conductors, the HAY-UY2 accommodates wire sizes from 19 to 26 AWG with a maximum insulation diameter of approximately 2.08mm. Its compact yellow housing reduces cable bundle size, making it ideal for installations where space is limited, such as junction boxes, communications cabinets, alarm panels and security equipment.
KEY FEATURES
- Professional gel-filled 2-wire IDC splice connector
- Joins two solid copper conductors
- Suitable for 19–26 AWG (0.4–0.9mm) cable
- No wire stripping required
- Insulation displacement contact (IDC) design
- Factory-applied gel seal for moisture resistance
- Helps protect against corrosion and contaminants
- Fast and reliable cable splicing
- Compact connector reduces cable bundle size
- Suitable for telephone and telecom wiring
- Ideal for CCTV, alarm and intercom systems
- Compatible with low-voltage signal cables
- Quick installation using an IDC crimping tool
- Suitable for indoor and sheltered outdoor applications
