Haydon HAY-VESA32-55 Vesa Monitor Bracket 400 x 400
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

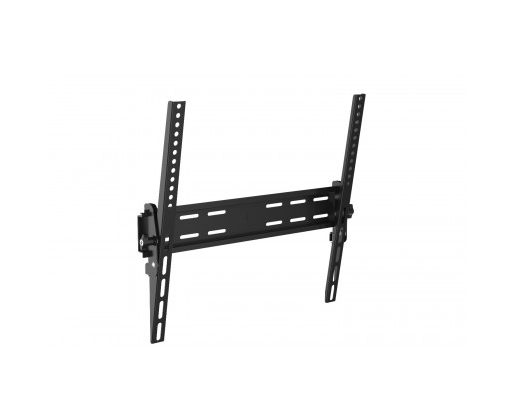

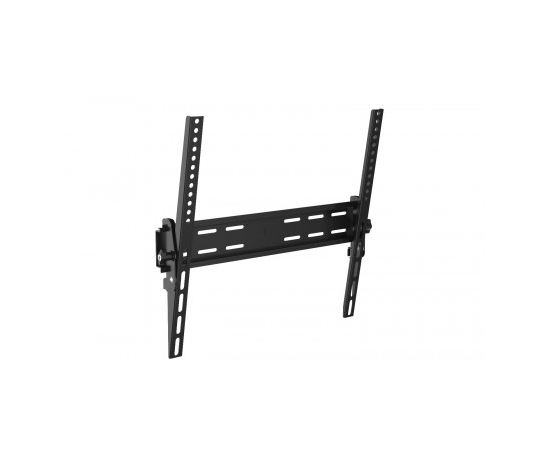

Haydon HAY-VESA32-55 VESA Monitor Bracket 400 x 400
The Haydon HAY-VESA32-55 is a large monitor wall mounting bracket designed for 32–55 inch screens with VESA mounting compatibility up to 400 × 400 mm. It provides a secure and practical mounting solution for commercial displays, CCTV monitoring stations, offices, and professional AV installations.
Designed for larger monitors and displays, the HAY-VESA32-55 features a robust construction capable of supporting screens up to 50 kg. Its tilt adjustment function allows users to optimise viewing angles, making it suitable for installations where screen positioning and visibility are important.
The bracket’s low-profile design helps keep displays securely mounted close to the wall while maintaining easy installation and adjustment. It is ideal for surveillance control rooms, meeting rooms, digital signage applications, and other professional display environments.
Key Features:
- Haydon large monitor wall mounting bracket
- Suitable for 32–55 inch screens
- Maximum VESA mounting pattern: 400 × 400 mm
- Maximum load capacity: up to 50 kg
- Tilt adjustment: -12° to +8°
- Strong and durable construction
- Black finish for a professional appearance
- Low-profile wall mounting design
- Suitable for monitors, displays, and CCTV viewing screens
- Ideal for commercial, office, and security monitoring installations
- Weight: approximately 1.7 kg
The Haydon HAY-VESA32-55 VESA Monitor Bracket is an ideal solution for installers and users requiring a reliable wall mount for larger displays. It provides secure support, flexible tilt adjustment, and compatibility with common VESA mounting standards for professional AV and surveillance applications.
Please note: Always confirm that the monitor size, weight, and VESA pattern are compatible with the bracket before installation. The mounting surface should be capable of supporting more than the combined weight of the display and bracket.
