Hikvision DS-1273ZJ-140-DM45 Wall Mount for Hikvision / HiLook Dome Range
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

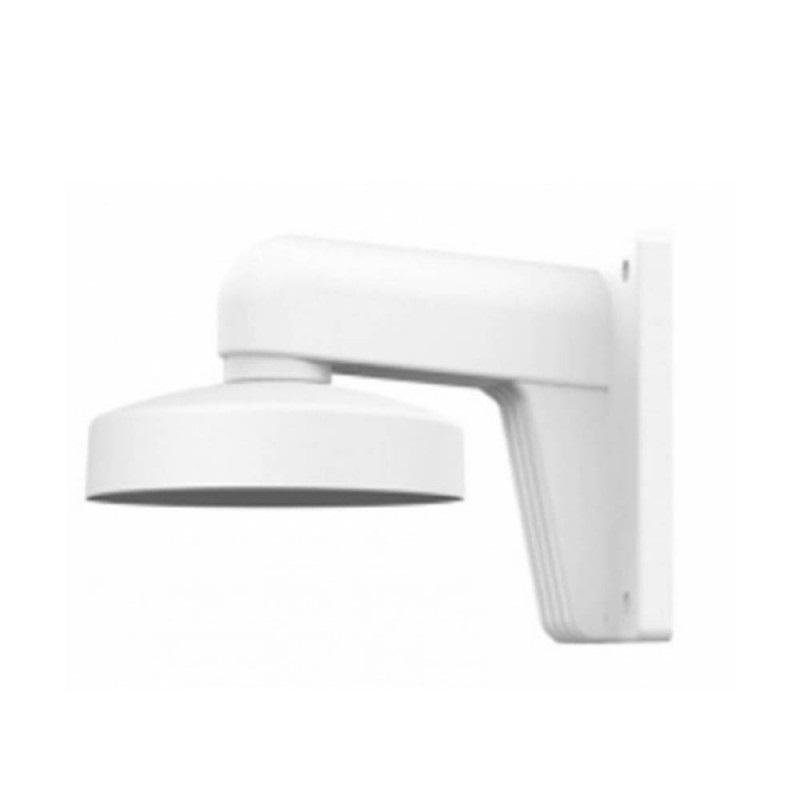

Hikvision DS-1273ZJ-140-DM45 Wall Mount Bracket
The Hikvision DS-1273ZJ-140-DM45 is a professional wall mounting bracket designed for compatible Hikvision dome and turret cameras. It provides a secure and reliable mounting solution, allowing cameras to be positioned for optimal surveillance coverage while maintaining a clean and professional installation. The integrated cap design also helps conceal and protect cable connections for a tidy finish.
Manufactured from high-quality aluminium alloy with a durable surface spray treatment, the DS-1273ZJ-140-DM45 offers excellent strength, corrosion resistance, and long-term reliability for both indoor and outdoor CCTV installations. Its robust construction ensures stable camera support while remaining lightweight and easy to install.
Designed for use with compatible Hikvision dome cameras, the bracket features concealed cable routing to improve installation aesthetics and help protect power and network cables from environmental exposure. It is commonly used in commercial, industrial, retail, and residential surveillance applications.
Key Features:
- Genuine Hikvision wall mount bracket
- Designed for compatible Hikvision dome and turret cameras
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish
- Cap design for concealed cable routing
- Suitable for indoor and outdoor installations
- Secure and stable wall-mounted installation
- Professional appearance with hidden cable management
- Dimensions: Ø140 × 183.5 × 231.5 mm
- Weight: approximately 907 g
- Maximum load capacity: up to 3 kg
The Hikvision DS-1273ZJ-140-DM45 Wall Mount Bracket is an ideal accessory for installers seeking a durable and professional mounting solution for compatible Hikvision dome cameras. Its strong aluminium construction, concealed cable management, and weather-resistant design make it well suited to a wide range of indoor and outdoor surveillance projects.
Please note: The bracket should be installed on a flat wall capable of supporting at least three times the combined weight of the camera and mounting bracket. For outdoor installations, Hikvision recommends using waterproof rubber or appropriate sealing to help protect cable entries from moisture ingress.
