Hikvision DS-2CE17H0T-IT3FS 5MP ColorVu Fixed Bullet Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

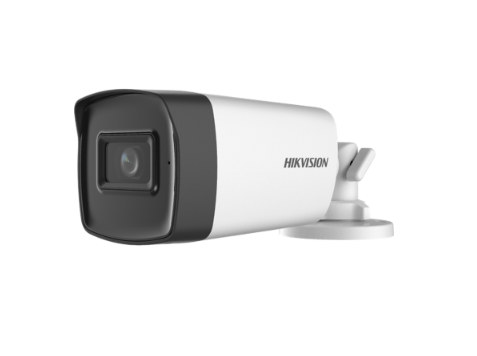

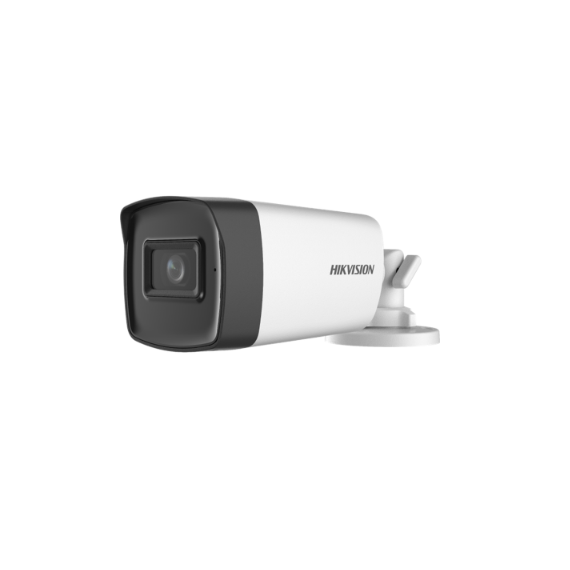

Hikvision DS-2CE17H0T-IT3FS 5MP ColorVu Fixed Bullet Camera
The Hikvision DS-2CE17H0T-IT3FS is a high-performance 5MP fixed bullet security camera designed to deliver clear, detailed surveillance footage in a wide range of lighting conditions. Featuring Hikvision’s ColorVu technology, the camera is capable of producing bright, full-colour images even in very low-light environments.
Its 5MP resolution provides excellent image detail, making it well suited for monitoring homes, commercial premises, offices, warehouses, retail environments and other security-sensitive areas. The integrated Smart Hybrid Light technology provides flexible illumination, helping maintain useful footage as lighting conditions change.
Key Features
- 5MP high-resolution imaging for detailed surveillance footage
- ColorVu technology for enhanced full-colour images in low-light conditions
- Smart Hybrid Light with intelligent switching between IR and white-light illumination
- Fixed bullet design suitable for indoor and outdoor surveillance applications
- Built-in microphone for audio capture alongside video
- Excellent night-time performance for 24/7 monitoring
- Wide dynamic range (WDR) to help maintain image clarity in challenging lighting
- Efficient H.265+ video compression to reduce storage and bandwidth requirements
- Robust weather-resistant housing for reliable outdoor installation
- Compatible with TVI, AHD, CVI and CVBS analogue video technologies
Ideal Applications
The DS-2CE17H0T-IT3FS is an excellent choice for residential, commercial and industrial CCTV installations where high-resolution video, reliable night-time performance and clear colour imagery are important.
With its combination of 5MP resolution, ColorVu technology, hybrid illumination and built-in audio, this camera provides a versatile surveillance solution for monitoring entrances, driveways, car parks, retail areas, warehouses and other critical locations.
