Hikvision DS-3WF5000-SI-5ACG/2P 5GHz 867Mbps 5KM Wireless Bridge Kit (Pair)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

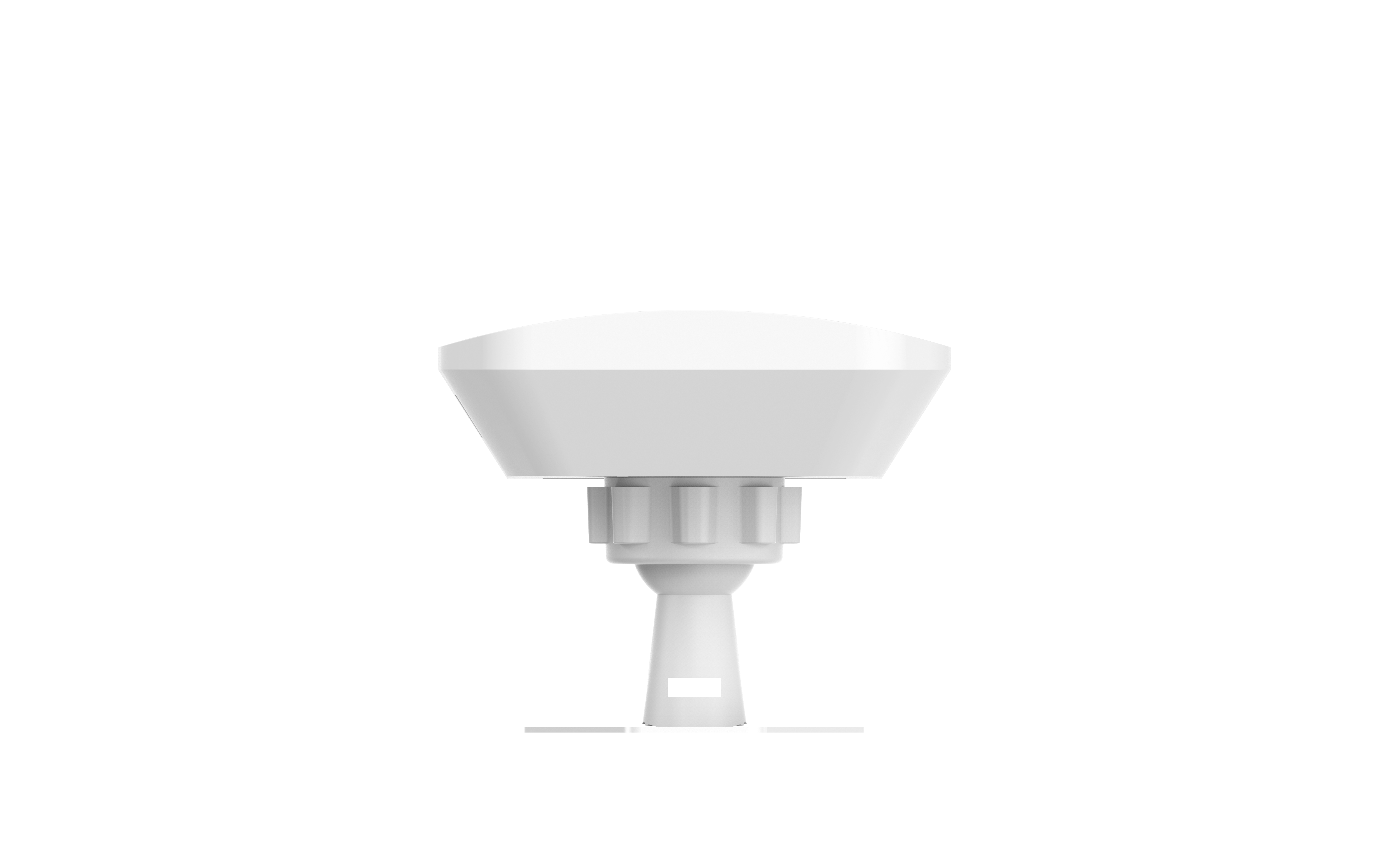

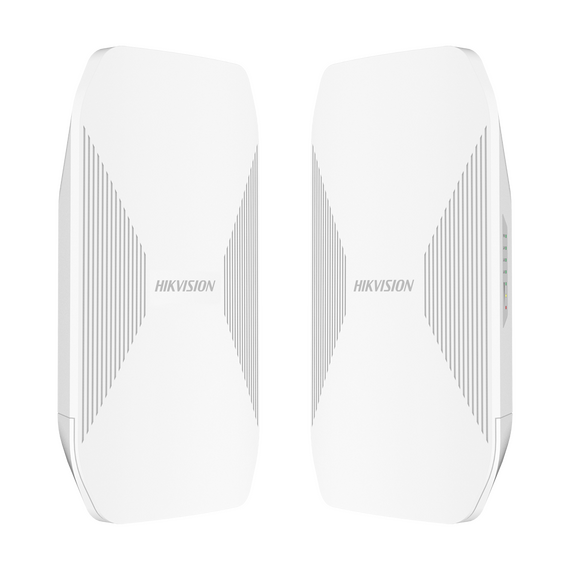

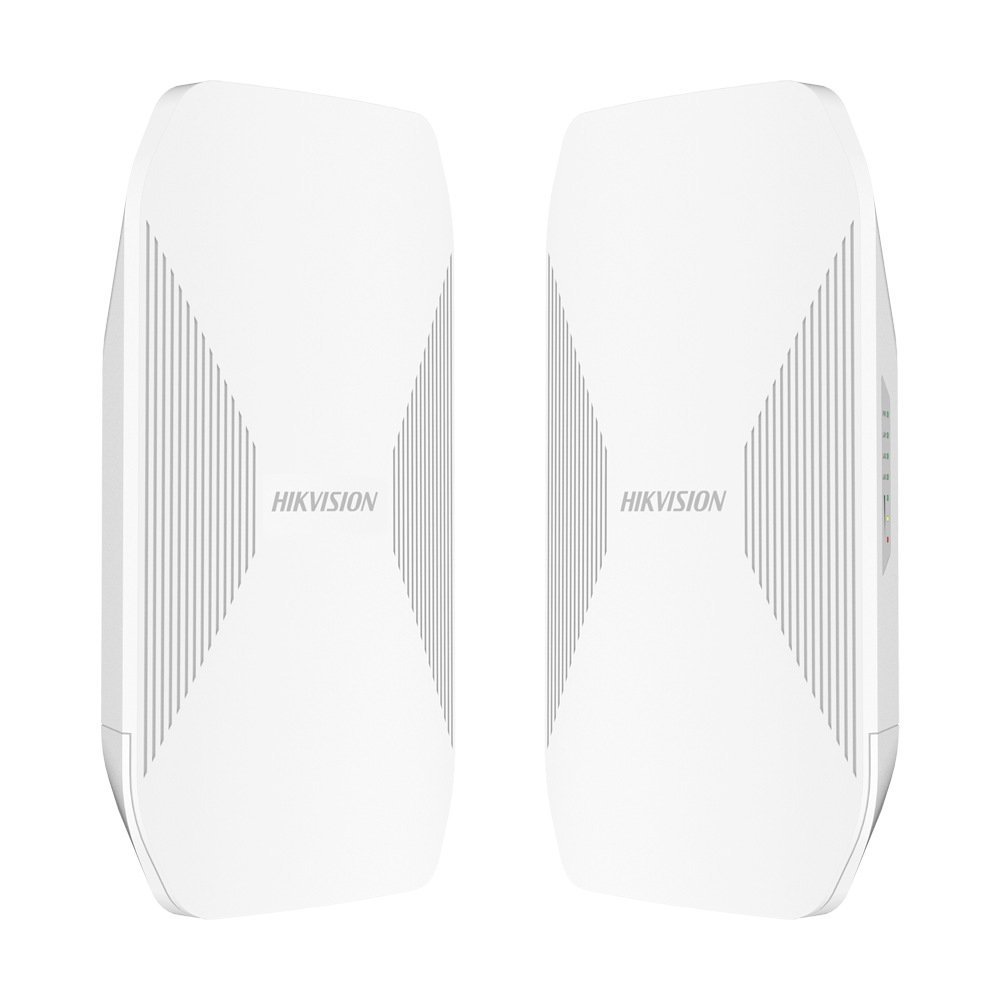

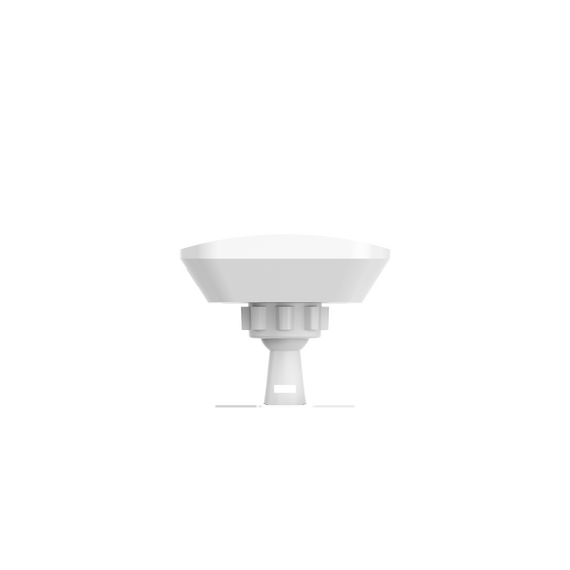

Hikvision DS-3WF5000-SI-5ACG/2P 5GHz 867Mbps 5KM Wireless Bridge Kit (Pair)
The Hikvision DS-3WF5000-SI-5ACG/2P is a high-performance 5GHz wireless bridge kit designed to provide reliable long-range network connectivity between locations where installing a physical network cable would be difficult or impractical.
Supplied as a complete pair, the kit supports wireless transmission distances of up to 5km and a maximum wireless rate of 867Mbps using IEEE 802.11ac technology. This makes it ideal for extending network connections between buildings, connecting remote CCTV cameras, linking outbuildings or creating secure point-to-point wireless connections across larger sites.
Each bridge features an integrated 16dBi 2 × 2 MIMO directional antenna to provide strong and stable wireless performance. Point-to-point throughput reaches up to approximately 250Mbps at 5km, providing ample capacity for CCTV video transmission and other network applications.
Plug-and-play operation helps simplify installation, while signal strength indicators and the supplied universal joint mounting brackets make alignment easier. The system also supports visualised network topology management, allowing installers to monitor connections and device status more effectively.
Three Gigabit RJ45 network ports provide flexible connectivity, while PoE support simplifies installation by allowing compatible network equipment to be powered through Ethernet cabling. The kit includes two wireless bridge units, two 48V PoE adapters, power leads and the required mounting hardware.
Designed for outdoor installations, the DS-3WF5000-SI-5ACG/2P features an IP55-rated enclosure and operates in temperatures from -30°C to 65°C, making it suitable for a wide range of commercial, industrial and CCTV networking applications.
Key Features:
- Complete wireless bridge kit supplied as a pair
- Up to 5km wireless transmission distance
- Maximum wireless rate up to 867Mbps
- IEEE 802.11a/n/ac wireless technology
- Integrated 16dBi 2 × 2 MIMO directional antenna
- Point-to-point throughput up to 250Mbps at 5km
- Three 10/100/1000Mbps RJ45 network ports
- Standard PoE input and output support
- Up to 40W PoE power budget
- Plug-and-play installation
- Signal strength LED indicators for easier alignment
- Visualised network topology management
- Remote management through Hik-Partner Pro
- WPA2-PSK wireless security
- Universal joint mounting brackets for easy adjustment
- Suitable for wall or pole mounting
- IP55-rated outdoor enclosure
- Operating temperature from -30°C to 65°C
- Two wireless bridges and two PoE adapters included
