Hikvision DVR-216Q-M1/T 16-ch 1080P 1U H.265 DVR with motion 2.0
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over ÂŁ240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

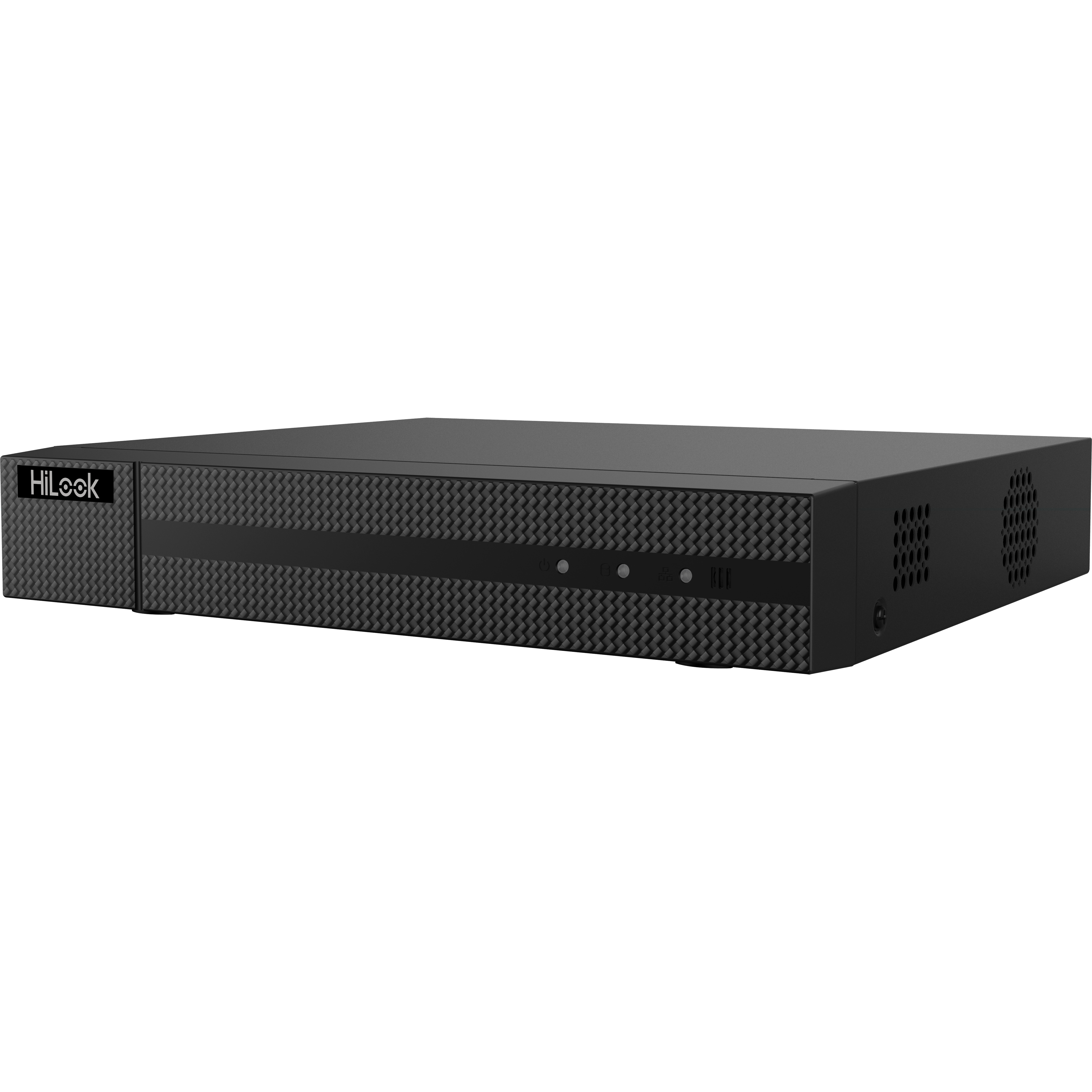

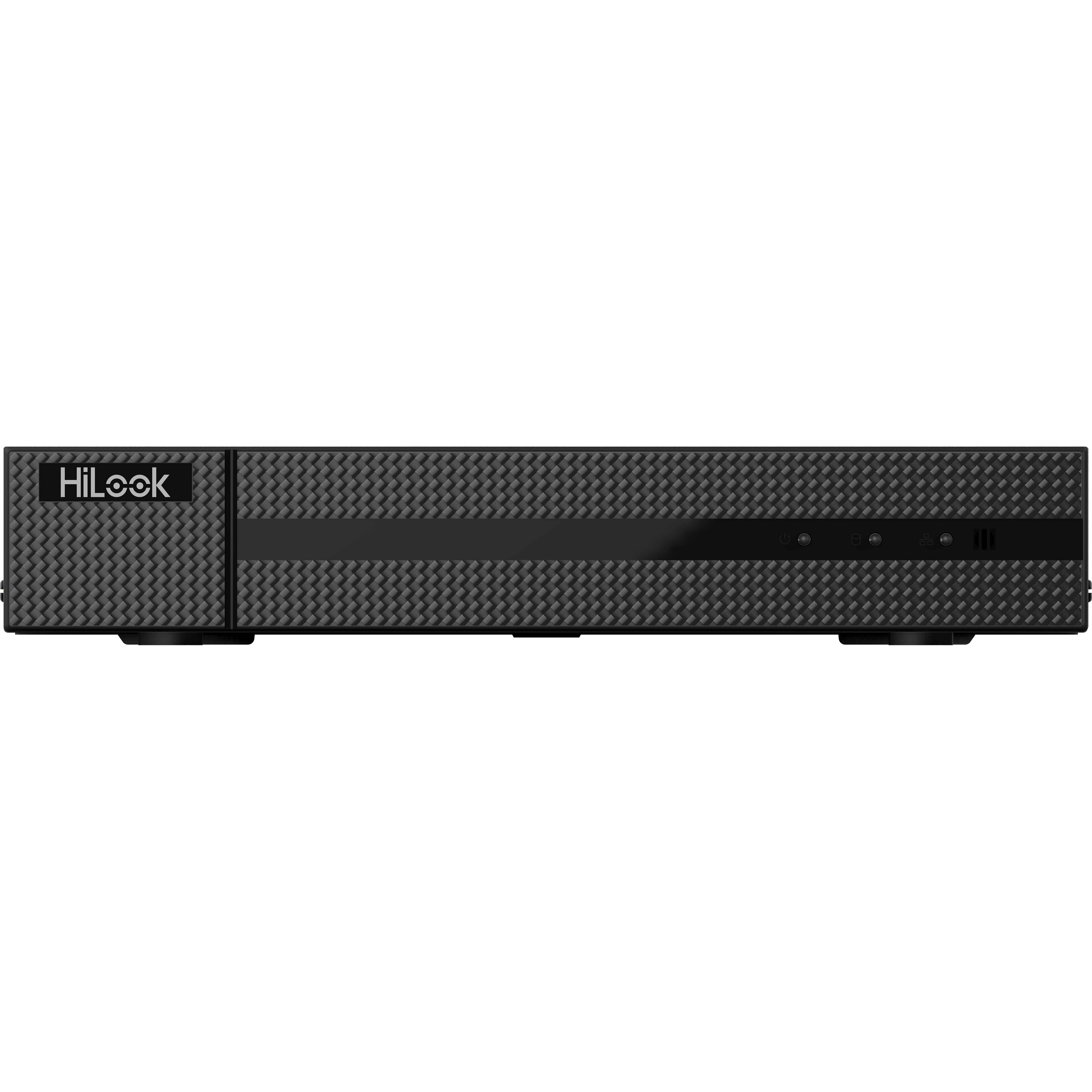

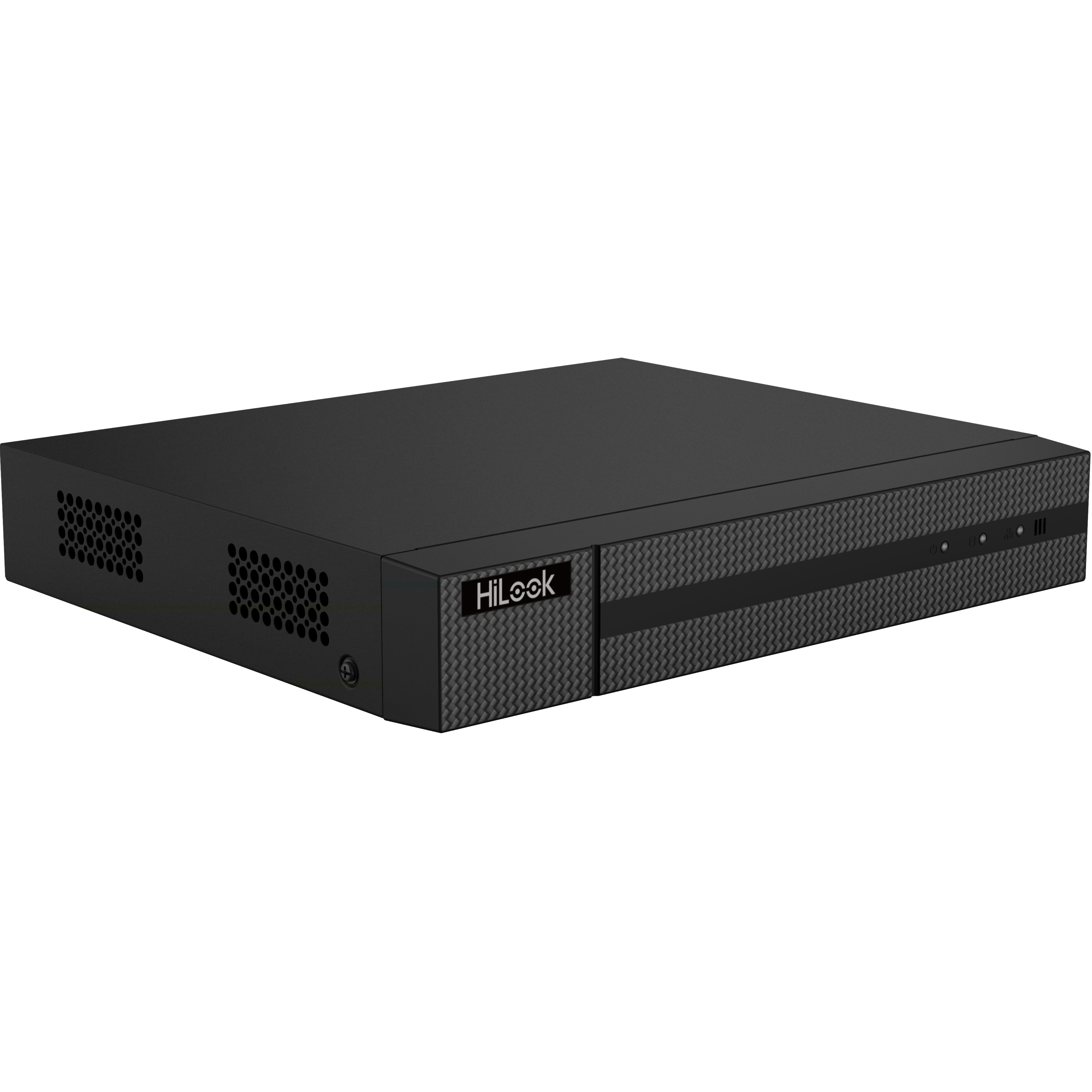

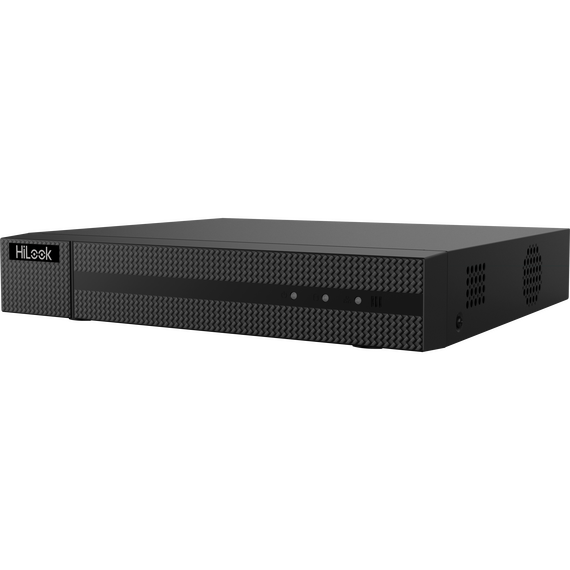

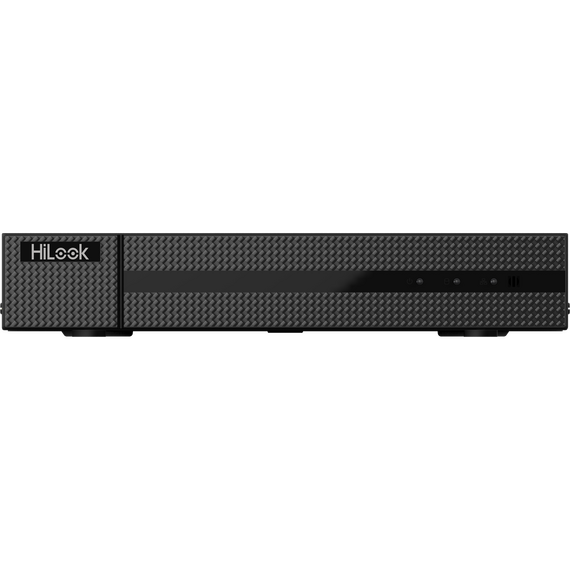

HiLook DVR-216Q-M1/T 16-Channel 1080p H.265 DVR
The HiLook DVR-216Q-M1/T is a robust 16-channel digital video recorder engineered for comprehensive surveillance systems requiring reliable performance, efficient storage, and smart detection capabilities. Designed for both analogue and IP camera environments, this recorder delivers clear Full HD recording and flexible connectivity for a wide range of CCTV deployments.
This DVR supports 16 analogue channels with deep learning-based Motion Detection 2.0, providing more accurate motion alerts by distinguishing between human and vehicle movement and reducing false triggers from irrelevant activity. That makes monitoring more efficient and enhances event relevance across all analogue inputs.
Featuring adaptive support for five input signal types — HDTVI, AHD, CVI, CVBS, and IP — the recorder offers exceptional compatibility with different camera technologies, simplifying upgrades or mixed installations without compatibility issues.
The DVR’s efficient H.265 Pro+ compression technology optimises storage use by significantly reducing file sizes while maintaining high-quality video. It is capable of encoding video at up to 1080p resolution at 15 fps, ensuring smooth and detailed footage capture for monitoring and playback.
In addition to analogue camera support, this recorder can connect up to 24 network cameras, enabling expanded surveillance coverage and future scalability. Whether integrating new IP cameras or adding more views across a site, the DVR-216Q-M1/T offers flexible network integration.
Overall, the HiLook DVR-216Q-M1/T combines deep learning motion analytics, efficient video compression, and broad compatibility to deliver a powerful and adaptable recording solution for modern CCTV installations.
