Hikvision HiLook - 5MP 8 Channel IP CCTV Camera System Builder
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
---|---|---|---|
2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
---|---|---|---|
1 | 44 | 11 | 36 |
2 | 22 | 5 | 18 |
3 | 17 | 4 | 14 |
4 | 11 | 3 | 9 |
5 | 9 | 2 | 8 |
6 | 8 | 2 | 6 |
8 (4K) | 5 | 1 | 4 |
12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.

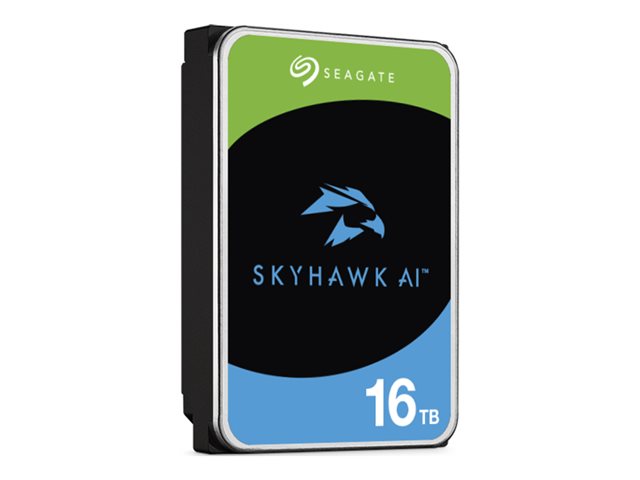

(All of our hard drives come fitted and are CCTV specific from one of the major brands)

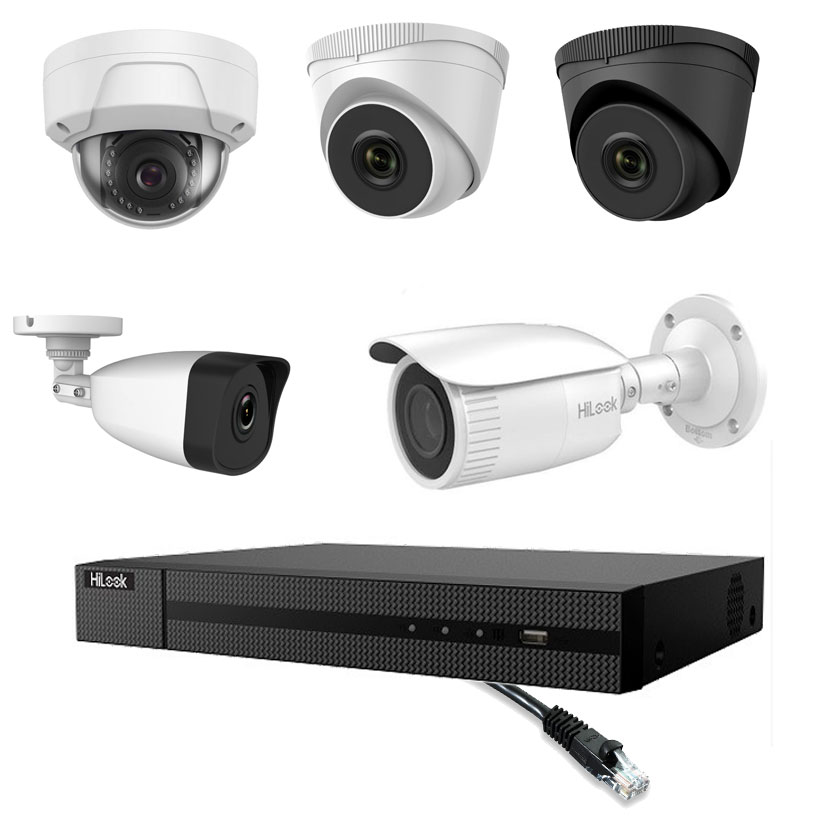

Hikvision HiLook - 5MP 8 Channel IP CCTV Camera System Builder
The new Hilook range of cameras from Hikvision are sleek, stylish and user friendly. Choose from bullet, turret or vandal dome type cameras with a variety of fixed lenses or vari focal options. The 5 MegaPixel sensor provides exceptional pin sharp images and the IR illumination allows for up to 30 metres of imaging in pitch black viewing conditions. All cameras are IP67 rated making them completely weatherproof.
All Hikvision products come with FREE access to remote viewing on your Android/iOS devices.
These kits now also include our 'Plain English Quick Start Guide' printout
Hikvision HiLook NVR-108MH-C/8P (D) 8 channel 4K NVR with 8 port POE
The Hikvision Hilook NVR-108MH-C/8P 8 channel 4K NVR with 8 port POE is a great plug and play unit for up to 8 IP cameras, with ease of use and mobile phone viewing.
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 8 IP cameras can be connected
- Recording at upto 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
Hikvision HiLook IPC-B150H-M 5MP IP Mini Bullet camera with 30M IR
- 1/2.7" progressive scan CMOS
- 2560 × 1920@15fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67

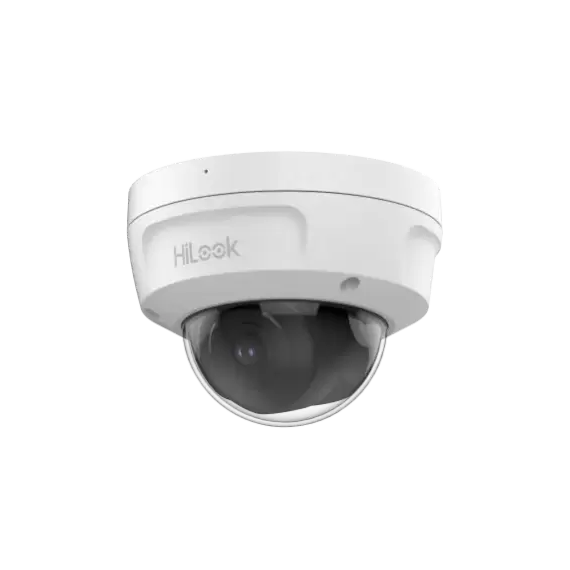

Hikvision HiLook IPC-D150H-M 5MP IP Vandal Dome camera with 30M IR + POE (Horizontal Mounting Only)
- 1/2.7" progressive scan CMOS
- 2560 × 1920@15fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67, IK10

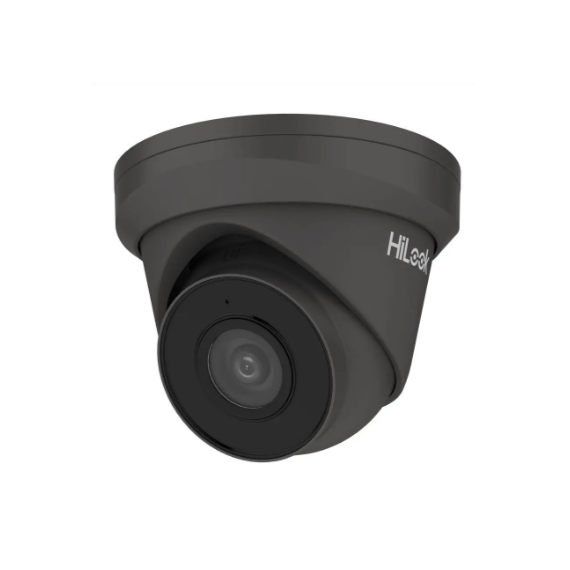

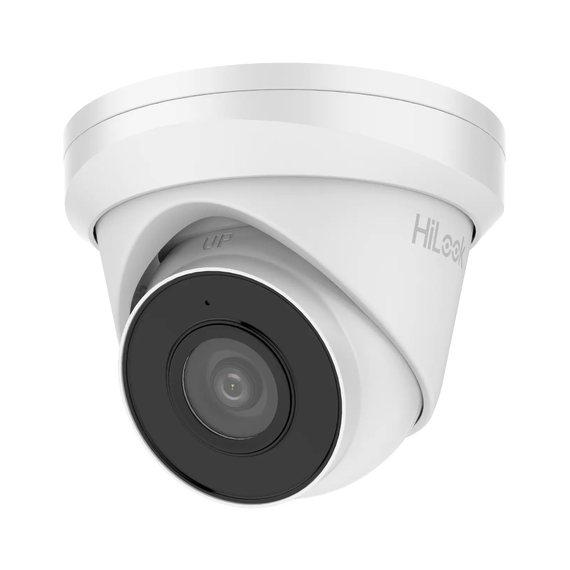

Hikvision HiLook IPC-T250H-M (2.8mm) 5MP IP Turret camera with 30M IR + POE
- 1/2.7" progressive scan CMOS
- 2560 × 1920@15fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67
Hikvision HiLook IPC-T250H (4mm) 5MP IP Turret camera with 30M IR + POE
- 1/2.7" progressive scan CMOS
- 2560 × 1920@15fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67

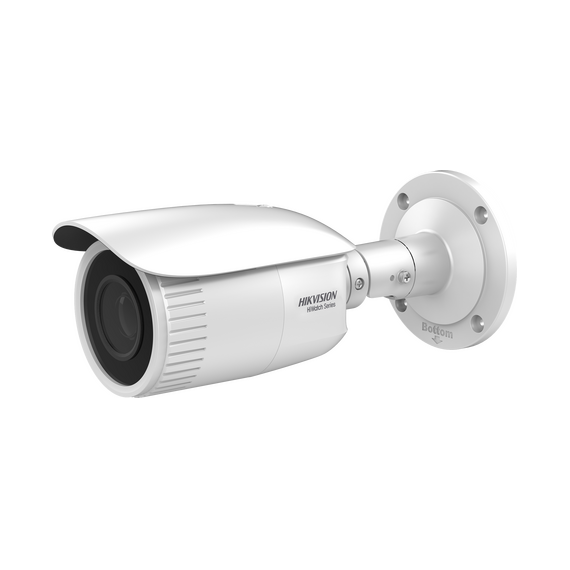

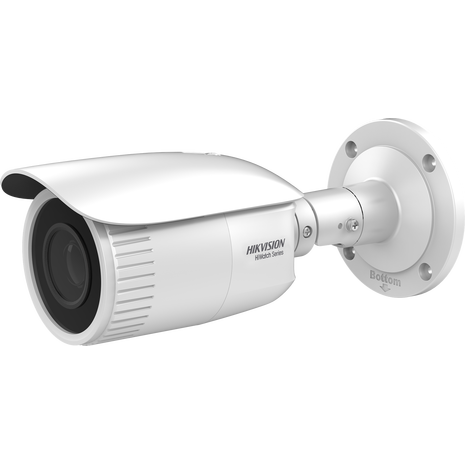

Hikvision HiLook IPC-B650H-Z 5MP IP motorized zoom Bullet camera with 30m IR & POE
- 1/2.7" progressive scan CMOS
- 2560 × 1920@15fps
- 2.8 mm to 12 mm varifocal lens
- H.265+, H.265, H.264+, H.264
- Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
- BLC/3D DNR/ROI
- Up to 30 m IR range
- IP67
Hikvision HiLook IPC-D650H-Z 5MP IP Motorized Zoom Vandal Dome Camera with 30m IR & POE
- 1/2.7" progressive scan CMOS
- 2560 × 1920 @15fps
- 2.8 mm to 12 mm vari-focal lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67
Hikvision HiLook IPC-T651H-Z 5MP IP motorized zoom Turret camera with 30m IR & POE
- 1/2.7" progressive scan CMOS
- 2560 × 1920 @15fps
- 2.8 mm to 12 mm vari-focal lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- IP67
