Hikvision HiLook - 8MP / 4K 4 Channel ColorVu Lite IP CCTV Camera System Builder
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.

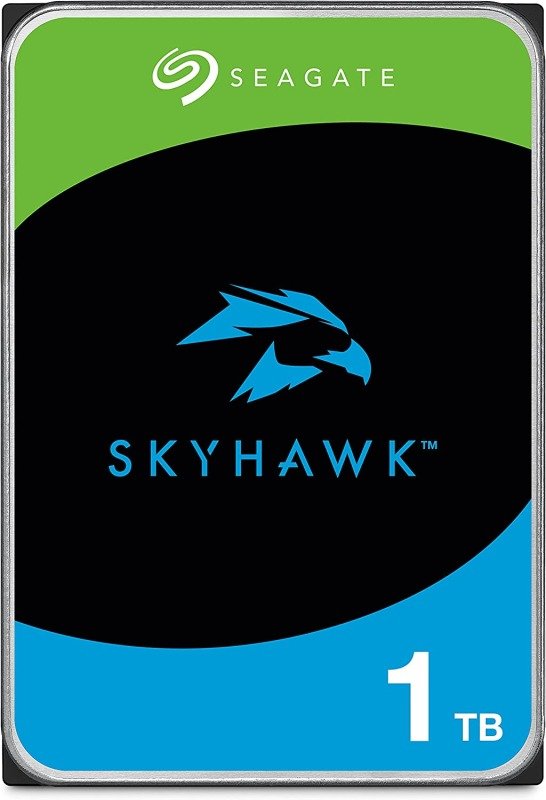

(All of our hard drives come fitted and are CCTV specific from one of the major brands)

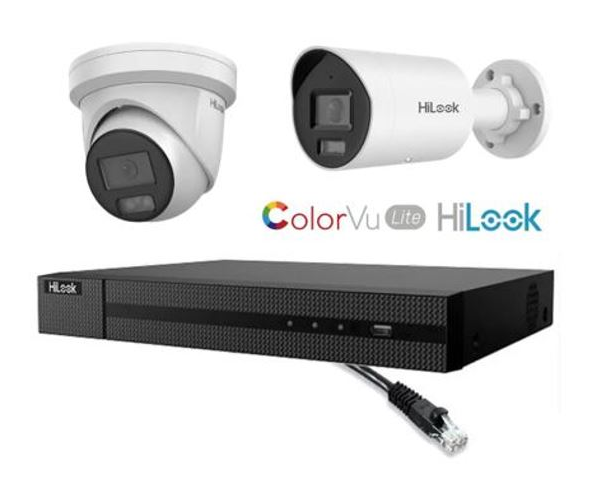

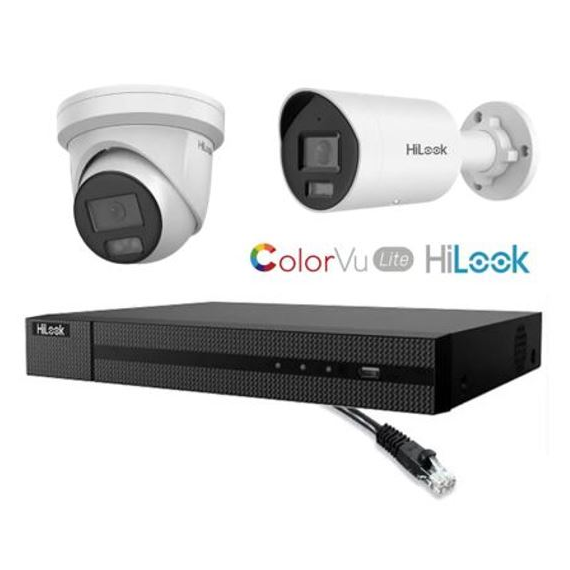

Hikvision HiLook - 8MP / 4K 4 Channel ColorVu Lite IP CCTV Camera System Builder
Mix and match from the latest 8mp Colorvu lite cameras from Hilook by Hikvision with this custom Kit builder.
Colorvu is the name for Hikvision's ultra-low light technology. ColorVu technology is designed to deliver clear colour images in scenes with almost no light without relying on infrared. ColorVu works by combining large image sensors with advanced image processing which in independent tests has proven to deliver the best images in scenes with very little light.

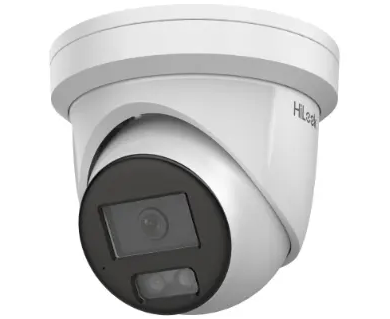

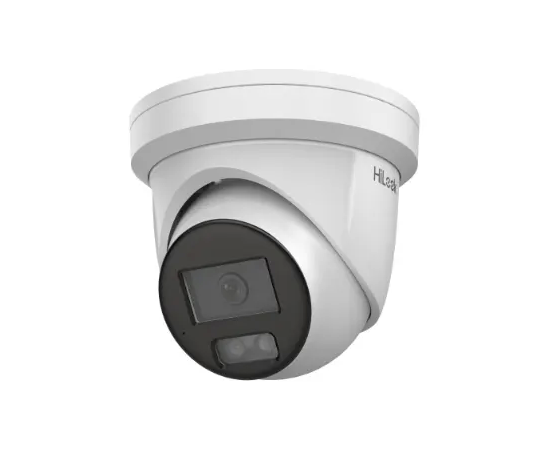

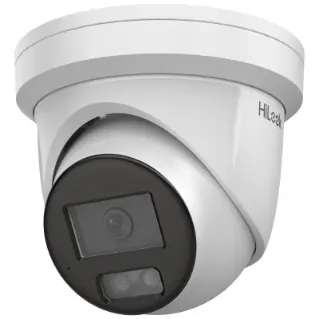

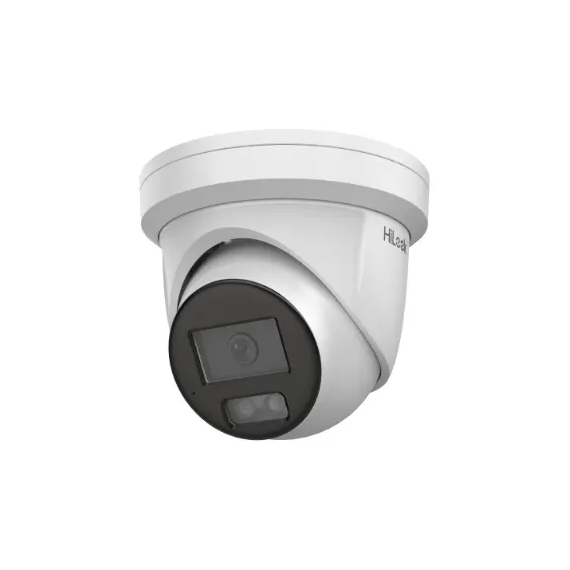

IPC-T289H-MU
The HiLook IPC-T289H-MU is an ultra-high resolution, 8MP 4K IP turret camera with a 2.8mm or 4mm fixed lens, 24/7 colour imaging thanks to ColorVu technology, and a built-in microphone for real time audio security. Digital WDR provides clear imaging, even in backlit conditions and the metal body is rated IP67 against dust and water ingress.
- High quality imaging with 8 MP resolution
- 24/7 colorful imaging
- Clear imaging against strong backlight due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)

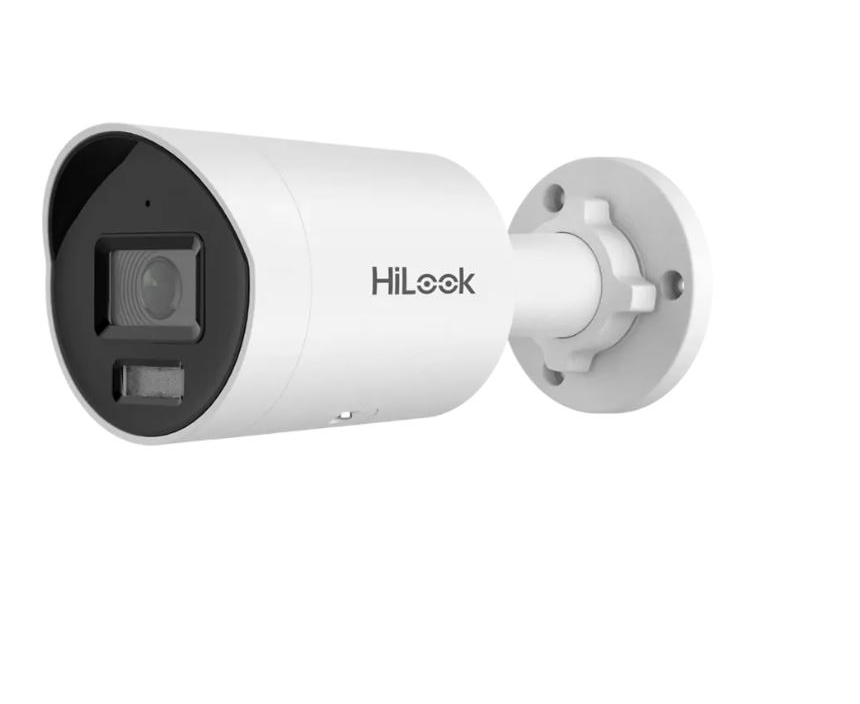

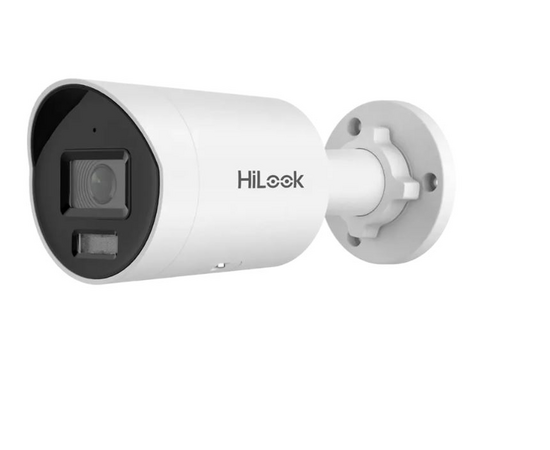

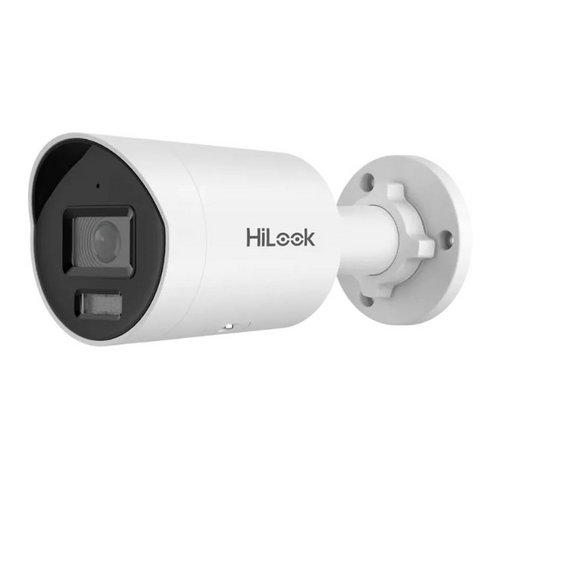

IPC-B189H-MU
The HiLook IPC-B189H-MU is an ultra-high resolution, 8MP 4K IP turret camera with a 2.8mm fixed lens, 24/7 colour imaging thanks to ColorVu technology, and a built-in microphone for real time audio security. Digital WDR provides clear imaging, even in backlit conditions and the metal body is rated IP67 against dust and water ingress.
- High quality imaging with 8 MP resolution
- 24/7 colourful imaging
- Focus on human and vehicle classification based on deep learning
- Clear imaging against strong backlight due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
NVR-104MH-C/4P
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 4 IP cameras can be connected
- Recording at upto 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI/VGA simultaneous output (NVR-104MH-C/4P)
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interface connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75>#/li###
HD Transmission
- 1 self-adaptive 10/100/1000Mbps network interface
