Hikvision HiLook IPC-B460HAD-LUF/ SL 6 MP Dual Lens Panoramic Smart Hybrid Light Fixed Bullet Network Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

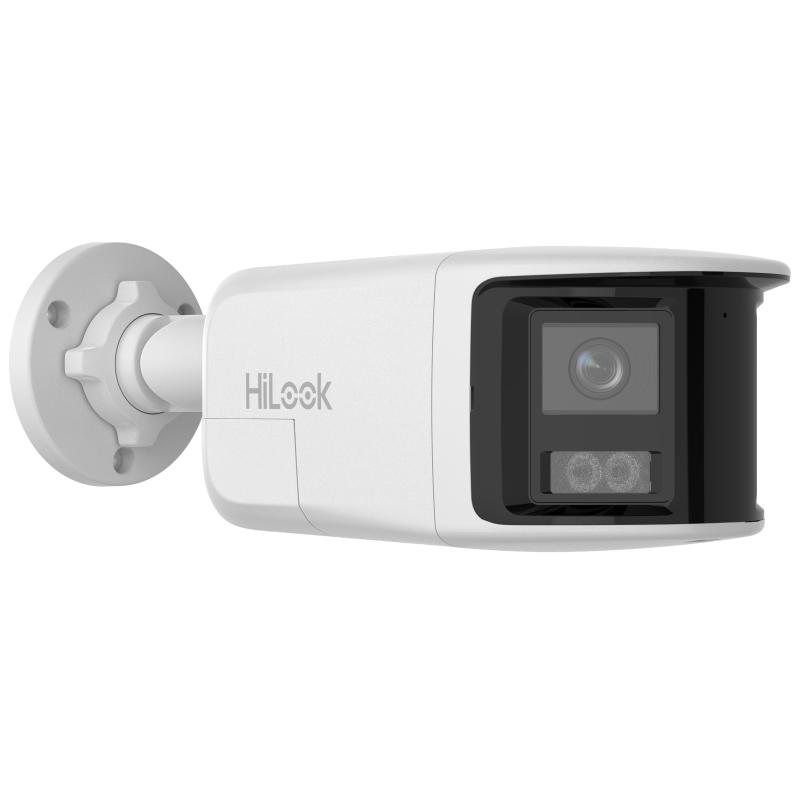

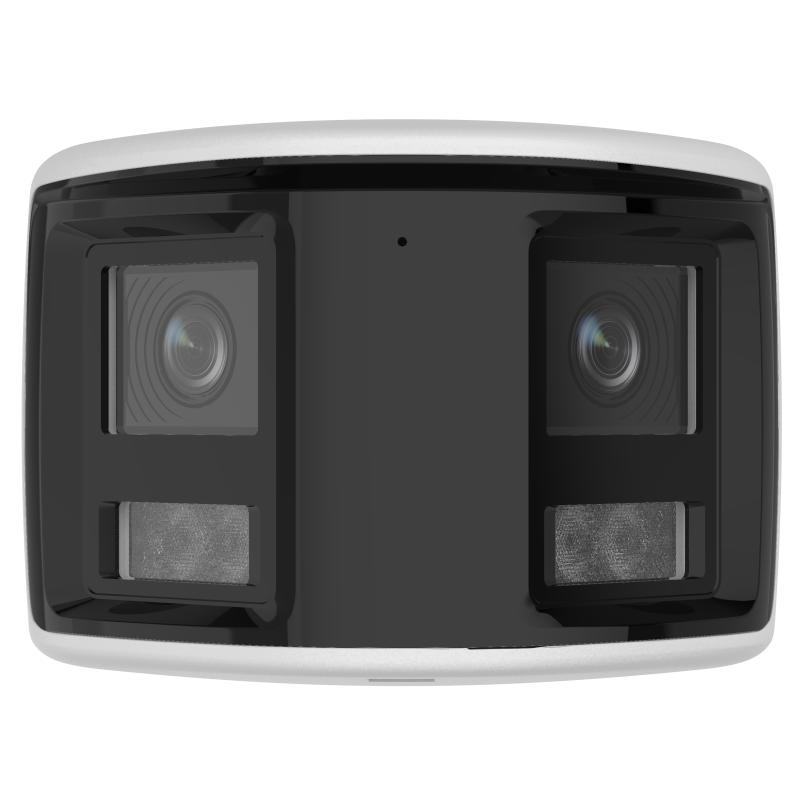

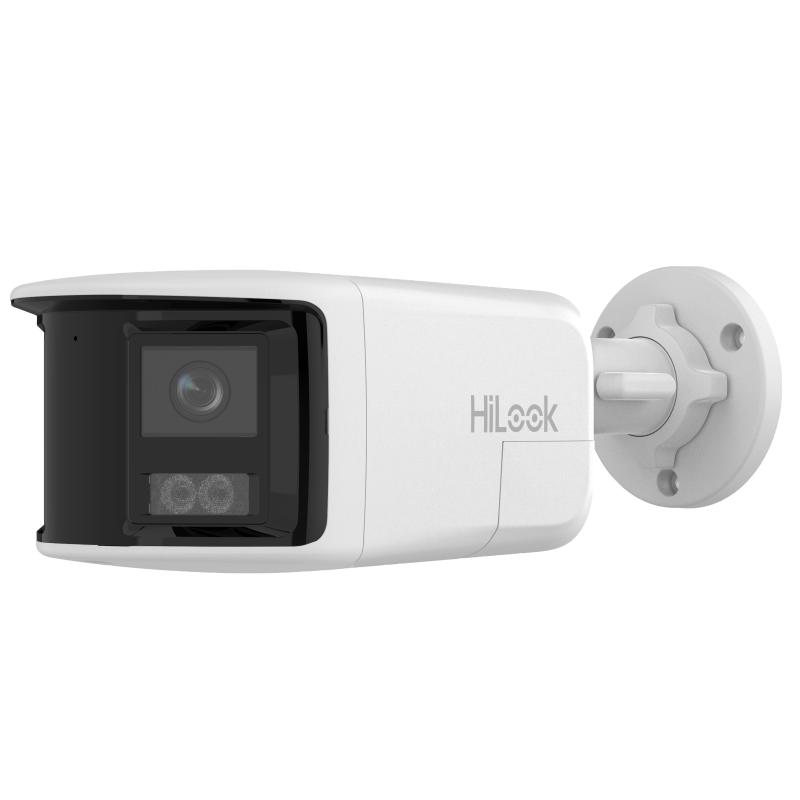

Hikvision HiLook IPC-B460HAD-LUF/SL 6MP Dual Lens Panoramic Smart Hybrid Light Fixed Bullet Network Camera
The Hikvision HiLook IPC-B460HAD-LUF/SL is a high-performance 6MP dual lens panoramic network camera that delivers a seamless 180° ultra-wide field of view, allowing a single camera to cover areas that would typically require multiple devices. With dual-lens image stitching technology, it provides clear, uninterrupted panoramic surveillance, making it ideal for building entrances, car parks, warehouses, retail premises, schools, and other wide-open environments.
Featuring Smart Hybrid Light technology, the camera automatically switches between infrared and warm white illumination to provide excellent image quality in all lighting conditions while deterring intruders when required. Intelligent Person and Vehicle Detection helps minimise false alarms by accurately identifying relevant targets, improving the efficiency of your security system.
The camera also includes built-in two-way audio, an active strobe light and audio alarm for proactive deterrence, and support for microSD cards up to 512GB for edge recording. With H.265+ compression, an IP67-rated weatherproof housing, and Power over Ethernet (PoE) support, the IPC-B460HAD-LUF/SL offers a reliable and cost-effective surveillance solution for both indoor and outdoor installations.
Key Features
- 6MP dual lens panoramic camera with seamless 180° field of view
- Smart Hybrid Light with IR and warm white illumination
- Intelligent Person and Vehicle Detection to reduce false alarms
- Built-in microphone and speaker for two-way audio communication
- Active strobe light and audio alarm for proactive intrusion deterrence
- H.265+ video compression for reduced bandwidth and storage requirements
- Built-in microSD card slot supporting up to 512GB of local storage
- 120 dB Wide Dynamic Range (WDR) for challenging lighting conditions
- IP67 weatherproof housing for reliable outdoor performance
- PoE (Power over Ethernet) for simplified installation
- Ideal for car parks, warehouses, commercial buildings, schools, and large residential properties
