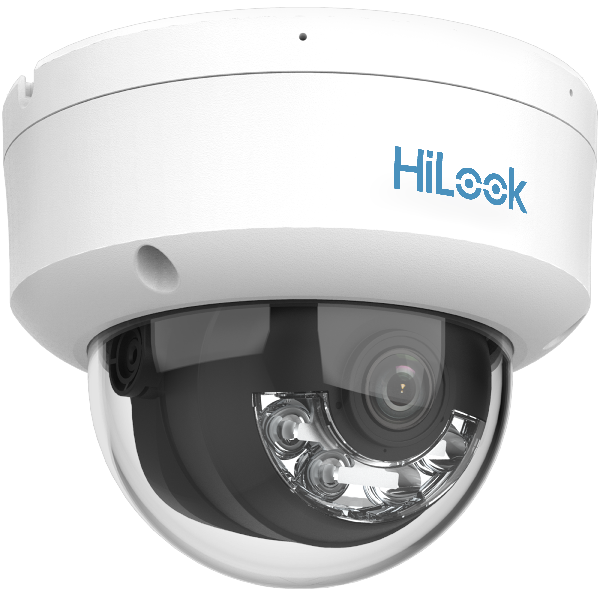

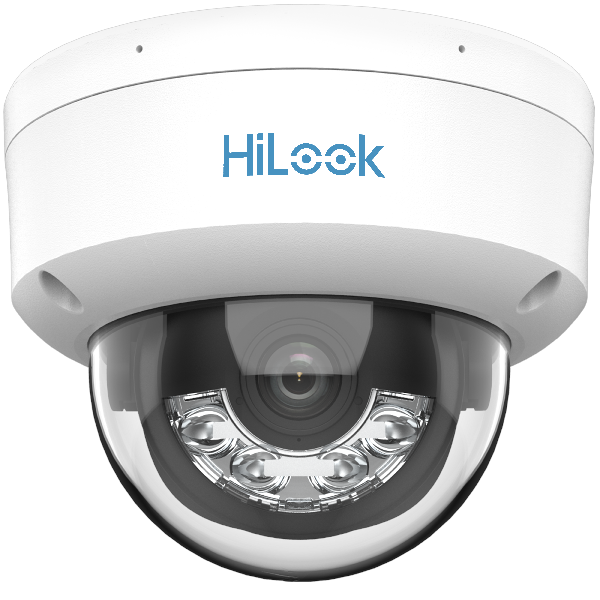

Hikvision HiLook IPC-D149HAA-LU 4MP ColorVu IP Vandal Dome Camera with 30M IR/White Light + POE (Horizontal Mounting Only) with In-built Mic
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
he IPC-D149HAA-LU delivers exceptional 4MP high-definition surveillance with advanced image processing for superior noise reduction and crystal-clear video quality. Featuring ColorVu technology, it provides vivid full-colour imaging 24 hours a day, even in low-light conditions.
Intelligent Motion Detection 3.0 enhances security by accurately distinguishing between humans and vehicles, reducing false alarms and improving event monitoring. A built-in microphone enables real-time audio capture, adding an extra layer of situational awareness.
Equipped with Smart Hybrid Light technology, the camera offers extended illumination range and optimal image performance in challenging lighting environments. Optional onboard storage supports microSD cards up to 512GB for reliable edge recording.
Designed for demanding outdoor installations, the IPC-D149HAA-LU features an IP67-rated weatherproof enclosure and IK08-rated vandal resistance, ensuring dependable operation in harsh environments.
Key Features
- 4MP high-resolution imaging for clear and detailed video surveillance
- ColorVu technology delivers vivid 24/7 full-colour imaging
- HikAI-ISP image processing provides excellent noise reduction and enhanced clarity
- Motion Detection 3.0 with intelligent human and vehicle classification
- Built-in microphone for real-time audio monitoring and recording
- Smart Hybrid Light technology for improved night-time visibility and extended illumination range
- Supports onboard storage up to 512GB via microSD card (optional)
- IP67-rated weatherproof design for reliable outdoor operation
- IK08-rated vandal-resistant housing for added durability
- Ideal for residential, commercial, and perimeter security applications
