Hikvision HiLook NVR-108MH-K/8P 8 channel 4K NVR with 8 port POE
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

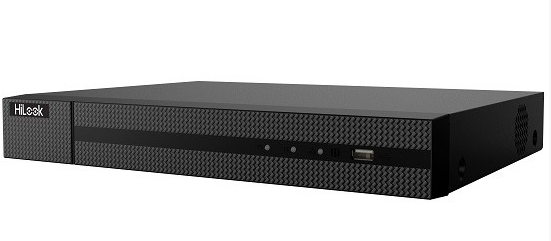

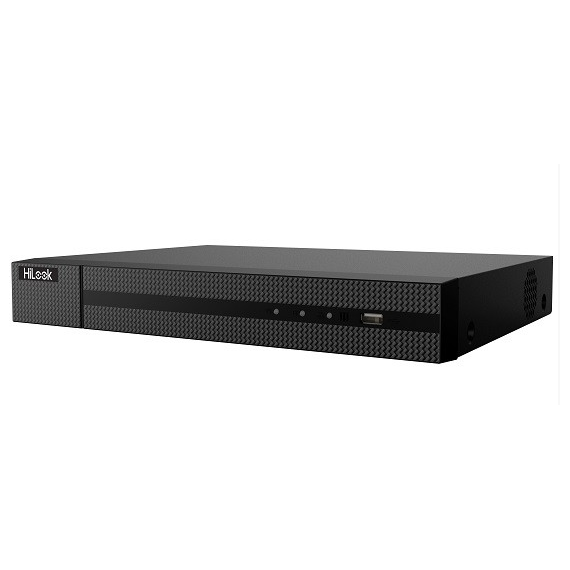

HiLook NVR‑108MH‑K/8P – 8-Channel PoE Network Video Recorder
The HiLook NVR-108MH-K/8P is a reliable and cost-effective network video recorder designed to form the backbone of your IP CCTV system. Built for small-to-medium surveillance installations, this recorder supports up to 8 IP camera inputs with Power over Ethernet (PoE), delivering true plug-and-play convenience — simply connect PoE cameras directly to the back of the unit for both data and power over a single cable.
Key Features:
-
8-Channel PoE Support: Eight integrated PoE ports simplify setup and eliminate the need for a separate PoE switch, making deployment quick and space-efficient.
-
High-Resolution Recording: Supports IP camera resolutions up to 12 MP, with flexible recording for 8 MP, 6 MP, 5 MP, 4 MP, 2 MP and lower — accommodating a wide range of camera types and quality levels.
-
H.265+/H.265/H.264 Support: Advanced video compression reduces file sizes and storage requirements while maintaining clear, smooth footage.
-
4K Video Output: HDMI output supports up to 4K (3840×2160) resolution for detailed live viewing and playback on compatible displays, alongside VGA output for additional monitor flexibility.
-
Decoding Performance: Capable of decoding multiple high-resolution streams simultaneously, including up to 2 channels at 12 MP or 8 channels at 4 MP for efficient playback.
-
Network & Connectivity: Built-in gigabit Ethernet port for network access, supporting remote viewing and management via standard browsers and mobile apps.
-
Single Drive Support: One SATA interface for a hard drive (sold separately) with capacity of up to 16 TB, ideal for long-term recording and archival.
-
Audio Integration: Includes one audio output for monitoring and one two-way audio channel for compatible cameras.
Designed for dependable 24/7 operation, the HiLook NVR-108MH-K/8P offers a balanced mix of performance, ease of installation, and flexibility — making it an excellent choice for homes, offices, shops, and other IP CCTV setups where straightforward surveillance with PoE simplicity is key.
