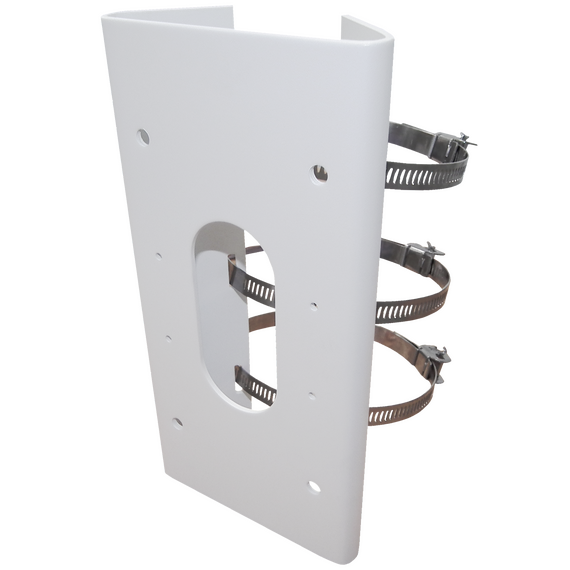

Hikvision Pole mount DS-1475ZJ-SUS
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

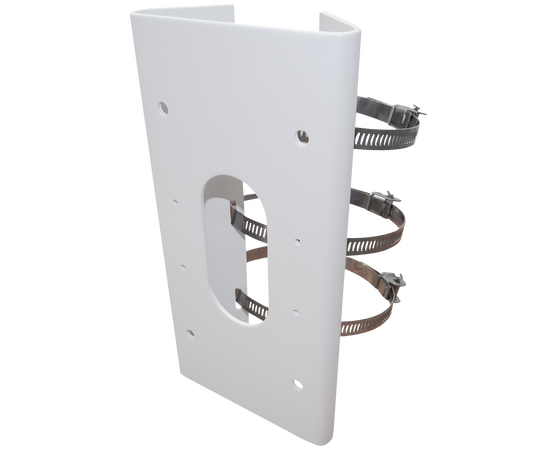

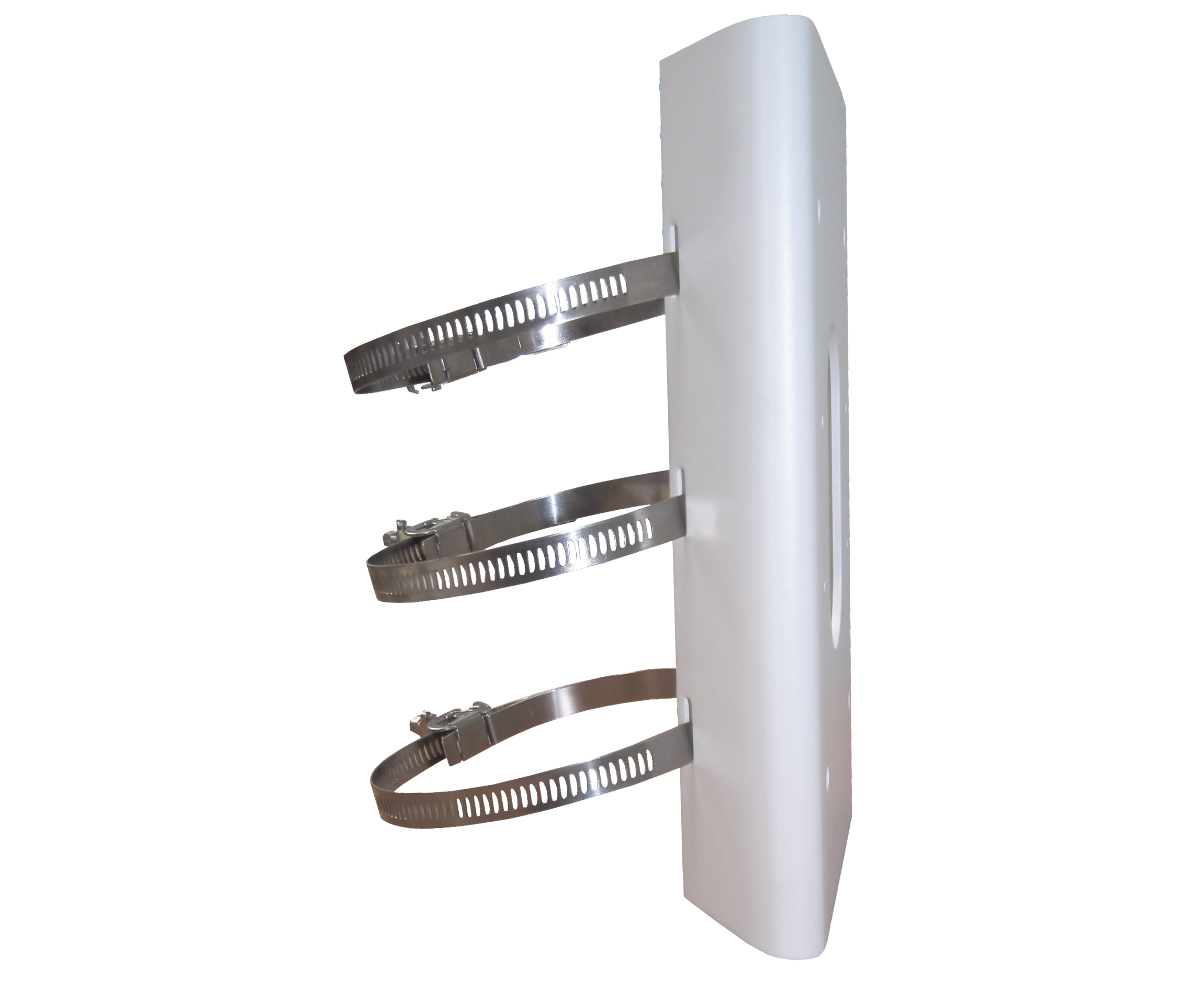

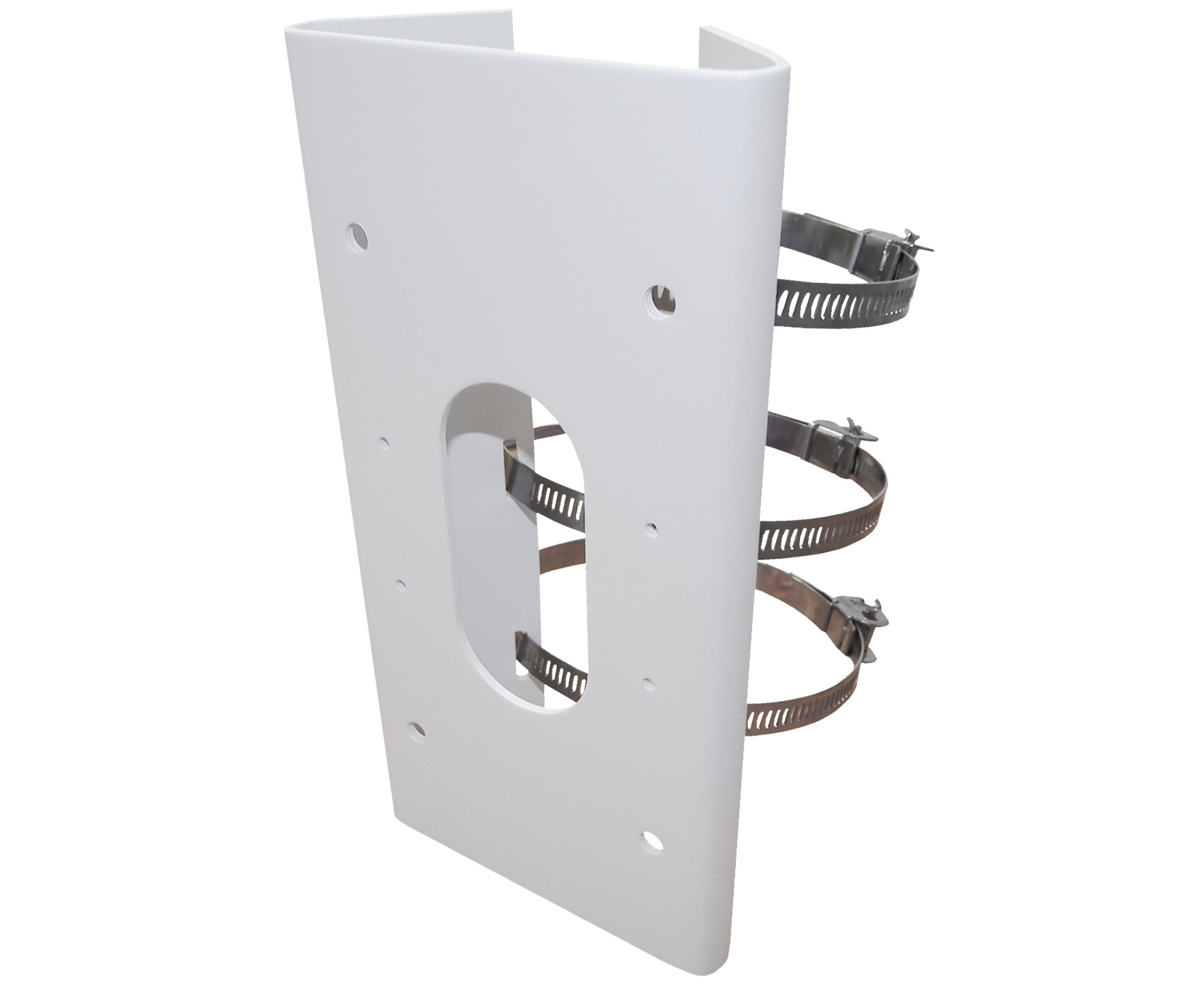

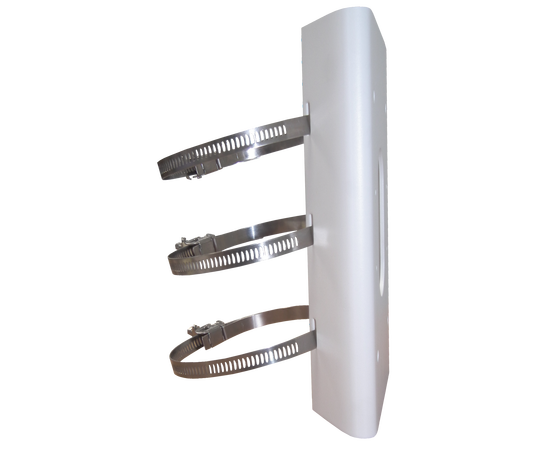

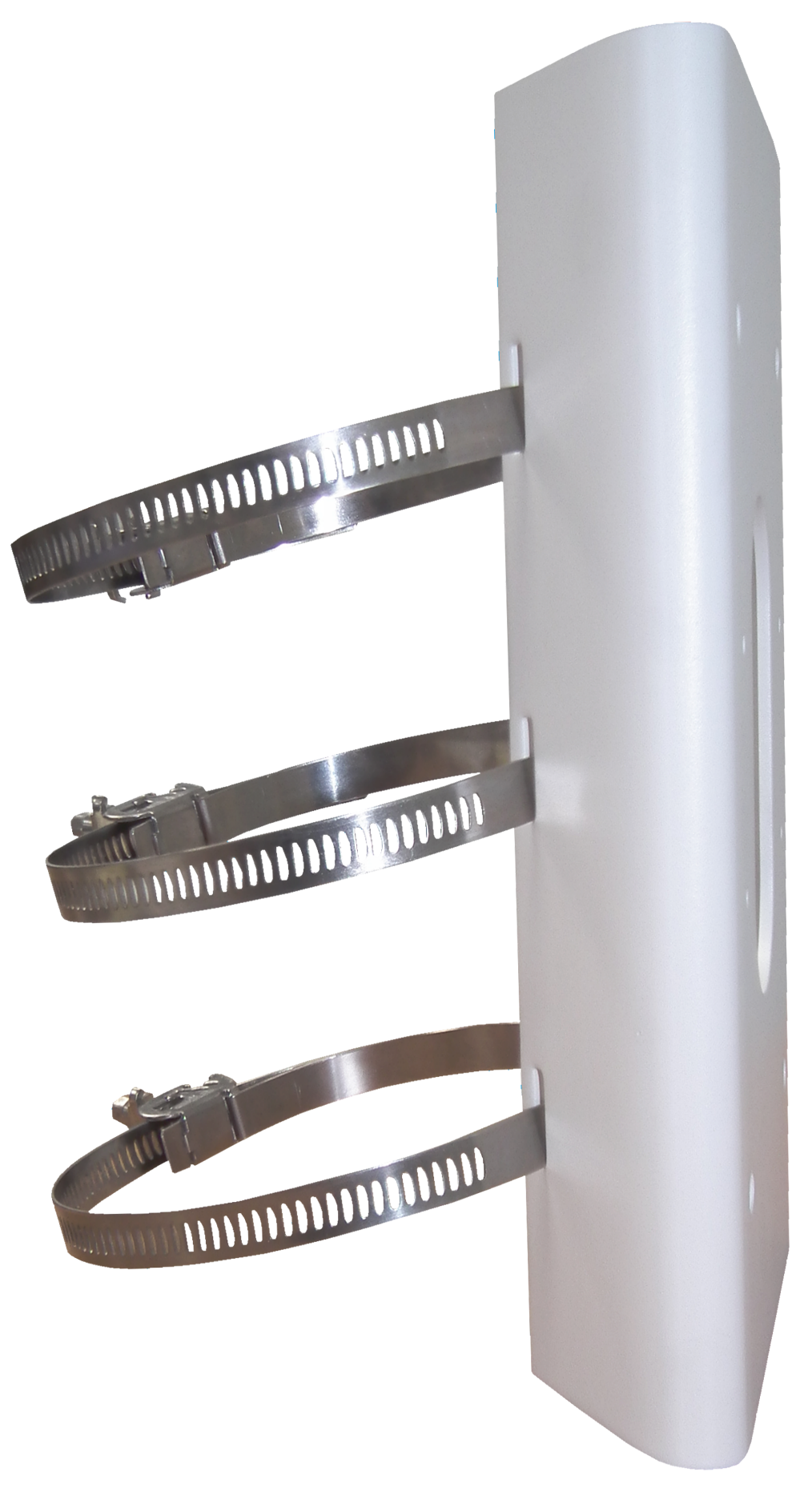

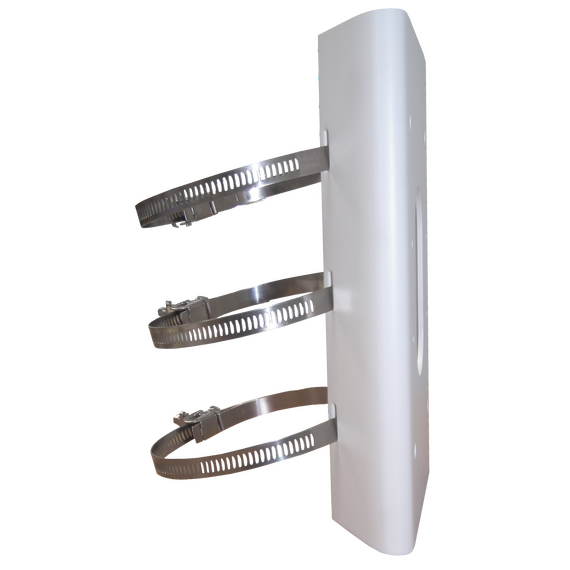

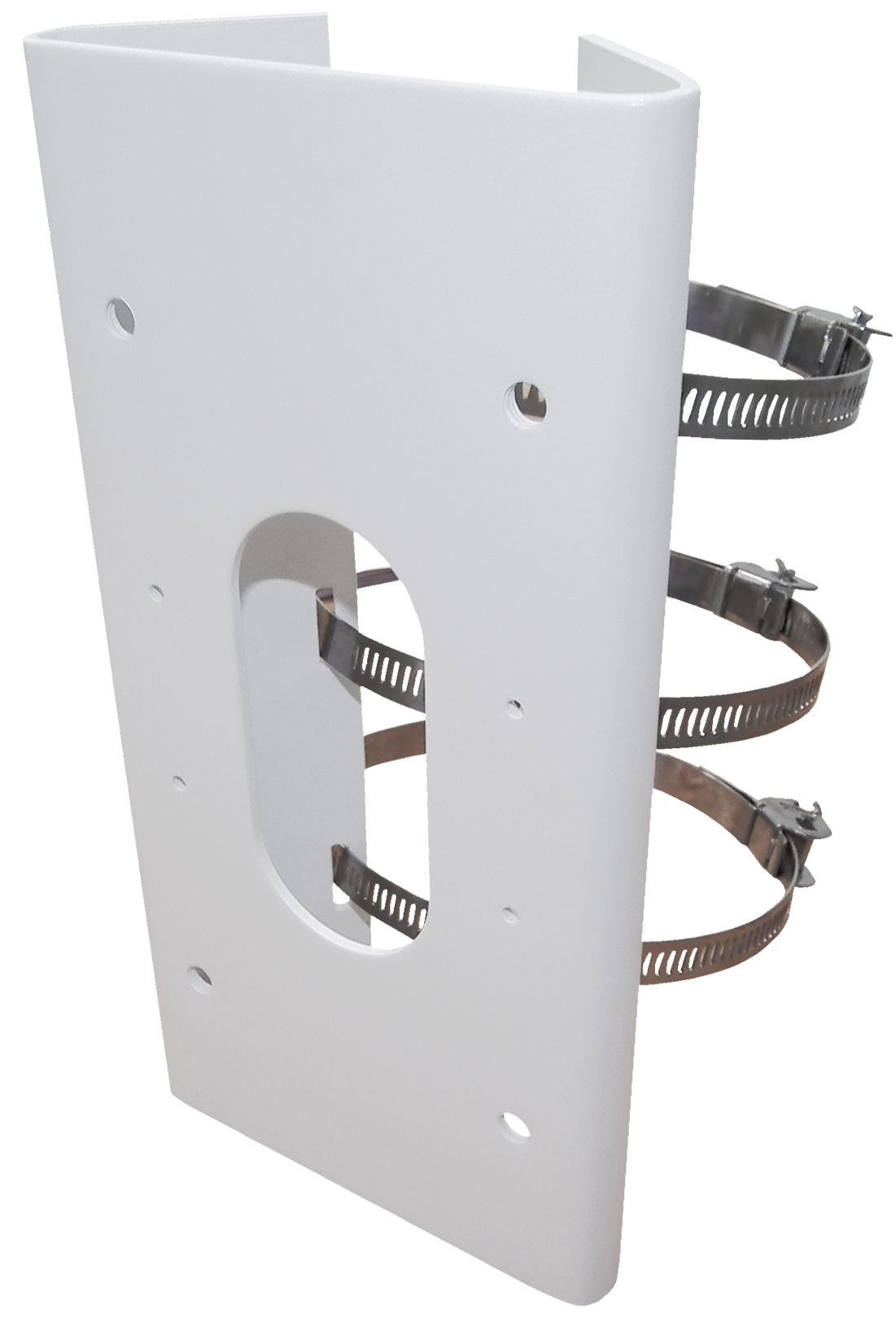

Hikvision DS-1475ZJ-SUS Vertical Pole Mount Bracket
The Hikvision DS-1475ZJ-SUS is a professional stainless steel vertical pole mounting bracket designed for compatible Hikvision CCTV camera installations. It provides a secure solution for mounting cameras onto poles, columns, and other vertical structures where direct wall mounting is not suitable.
Manufactured from stainless steel with a surface spray treatment, the DS-1475ZJ-SUS offers excellent durability and resistance for professional surveillance installations. Its adjustable design allows it to fit a range of pole diameters, providing flexibility during installation.
The bracket is designed for vertical pole mounting applications and supports compatible Hikvision camera brackets and accessories. It is suitable for outdoor CCTV installations when installed with appropriate weather protection and sealing measures.
Key Features:
- Genuine Hikvision vertical pole mount bracket
- Designed for compatible Hikvision CCTV camera installations
- Stainless steel construction with surface spray treatment
- Adjustable pole diameter range: 67 mm to 127 mm (2.64" to 5")
- Hikvision White finish
- Strong and durable design for professional installations
- Provides secure and stable camera positioning
- Suitable for outdoor surveillance applications

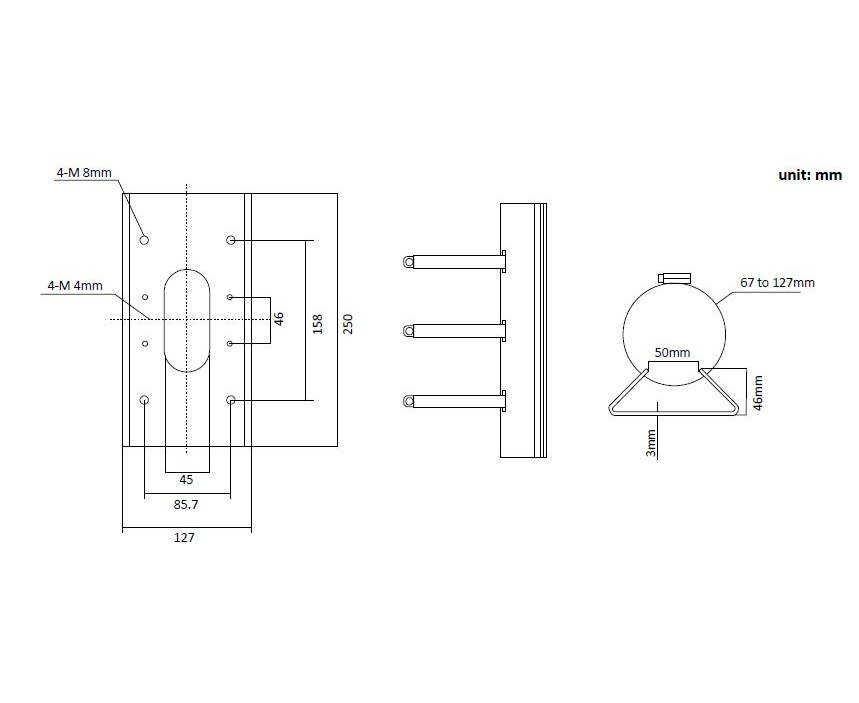

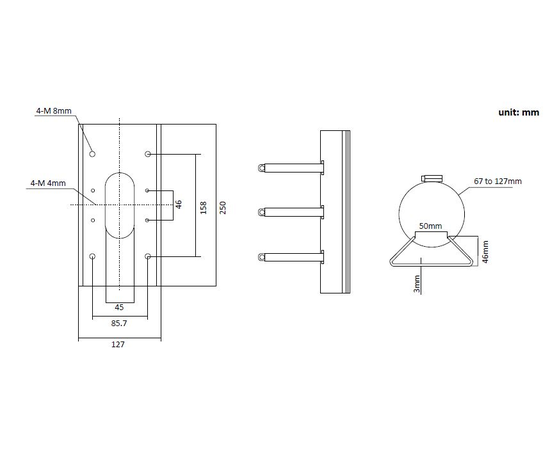

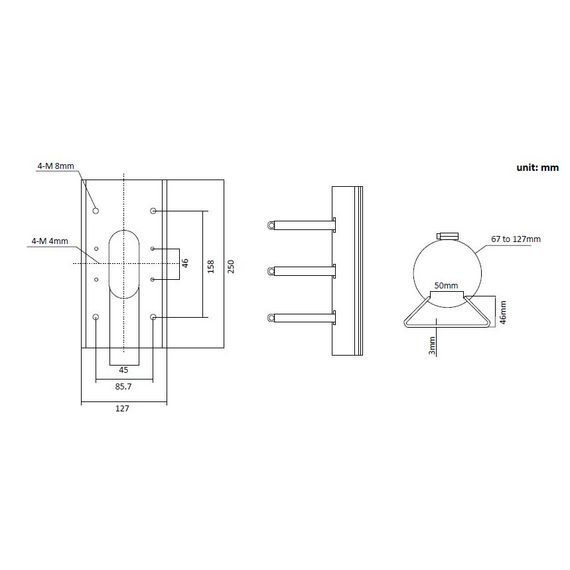

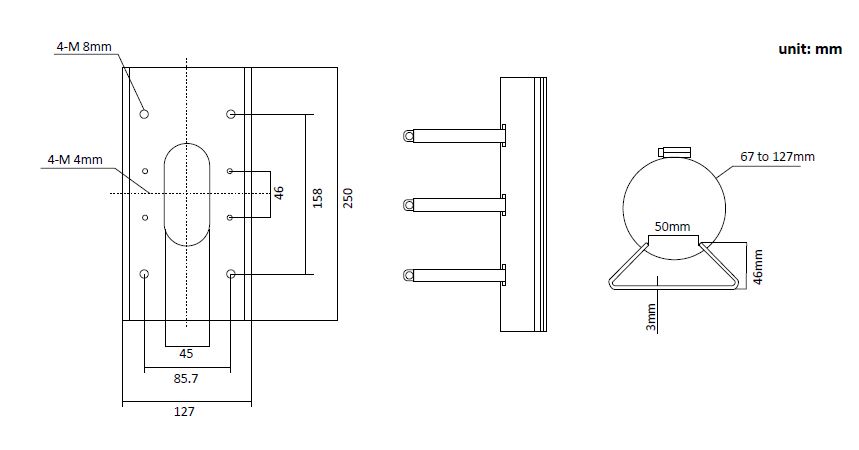

- Dimensions: 250 × 127 × 46 mm
- Weight: approximately 1205 g
- Maximum load capacity: up to 10 kg
The Hikvision DS-1475ZJ-SUS Vertical Pole Mount is an ideal accessory for installers requiring a robust and adjustable pole mounting solution. Its stainless steel construction, flexible pole compatibility, and professional design make it suitable for a wide range of commercial, industrial, and perimeter surveillance projects.
Please note: For outdoor installations, suitable waterproof sealing should be used. The supporting pole must be capable of safely supporting at least three times the combined weight of the camera and mounting accessories.
