Hilook by Hikvision- 4/5MP ColorVu Lite 4 Channel IP CCTV Kit Builder
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

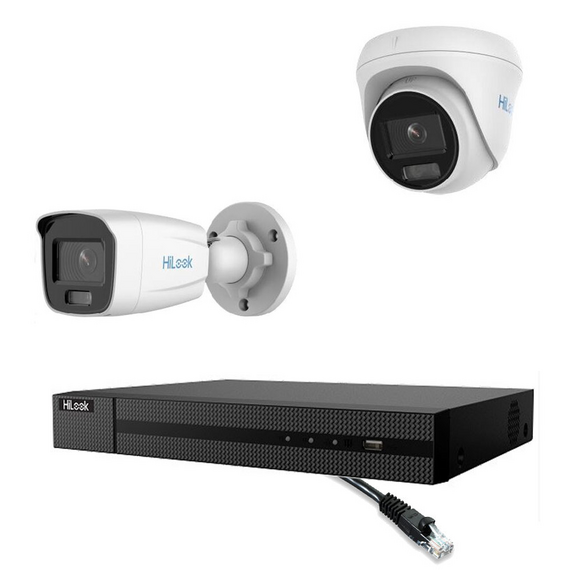

Hikvision HiLook ColorVu Lite 4 channel 4/5MP custom IP kit builder

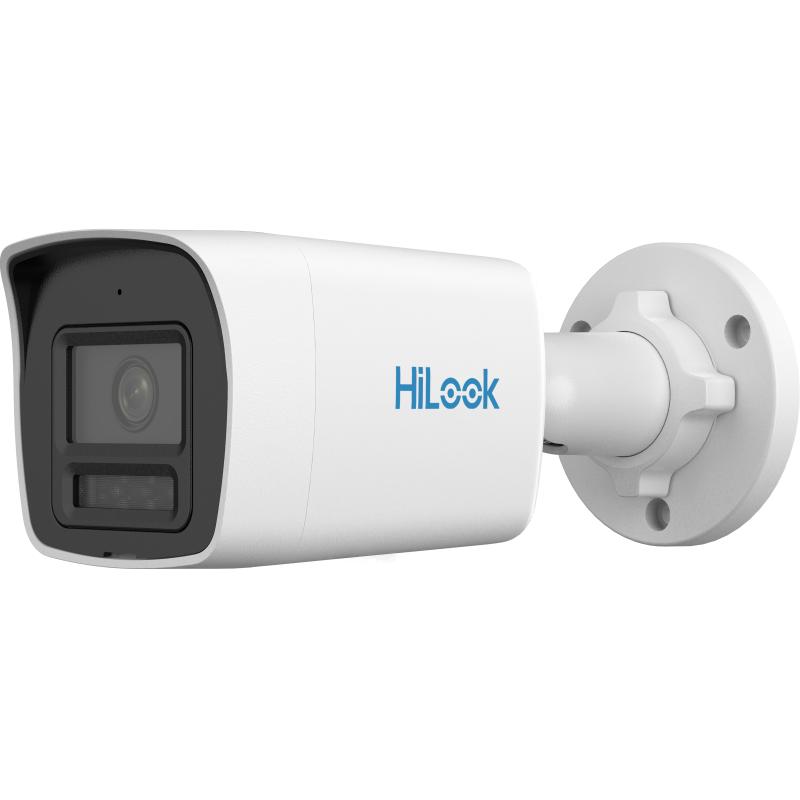

Now includes new 4mp Hybrid light option: IPC-T249HA-LU
Mix and match, up to 4 cameras, from the latest Colorvu lite cameras from Hilook by Hikvision with this custom kit builder.
The new range of Hilook by Hikvision colorVu Lite series for full time-time colour images day and night offers excellent performance in low light situations, with balanced brightness and richer details captured compared to a black and white infrared camera. The super-fast f/1 fixed lens and advanced imaging sensor render realistic and accurate colour day and night.
- High-quality imaging with 5 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colourful images
Hikvision HiLook NVR-104MH-C/4P 4 channel 4K NVR with 4 port POE
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 4 IP cameras can be connected
- Recording at upto 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI/VGA simultaneous output (NVR-104MH-C/4P)
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interface connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75>#/li###
HD Transmission
- 1 self-adaptive 10/100/1000Mbps network interface
- 4 independent PoE network interfaces are provided
Various Applications
- Centralized managementof IP cameras, including configuration, information import/export, real-time informationdisplay, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management

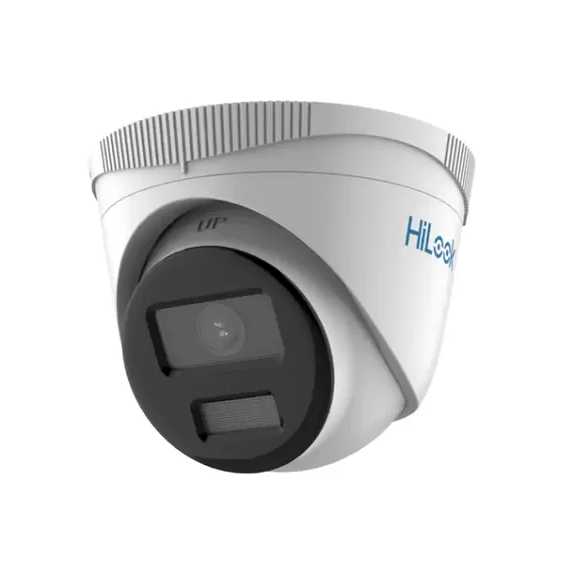

Hikvision HiLook ColorVu Lite IPC-T259H 5MP Full-Time Colour Half Metal Turret Camera 30m White Light Range
- High-quality imaging with 5 MP resolution
- Excellent low-light performance
- Water and dust resistant (IP67)
- h265+ encoding
- 24/7 colourful images

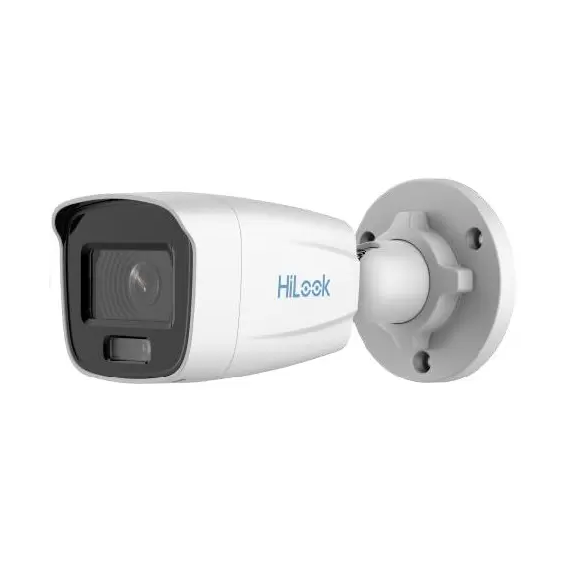

Hikvision HiLook ColorVu Lite IPC-B159H 5MP Full-Time Colour Half Metal Bullet Camera 30M White Light Range
- High-quality imaging with 5 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colourful images
