HiLook IPC-B469HAD-LUF/SL 6MP Dual Lens Panoramic Smart Hybrid Light Fixed Bullet Network Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

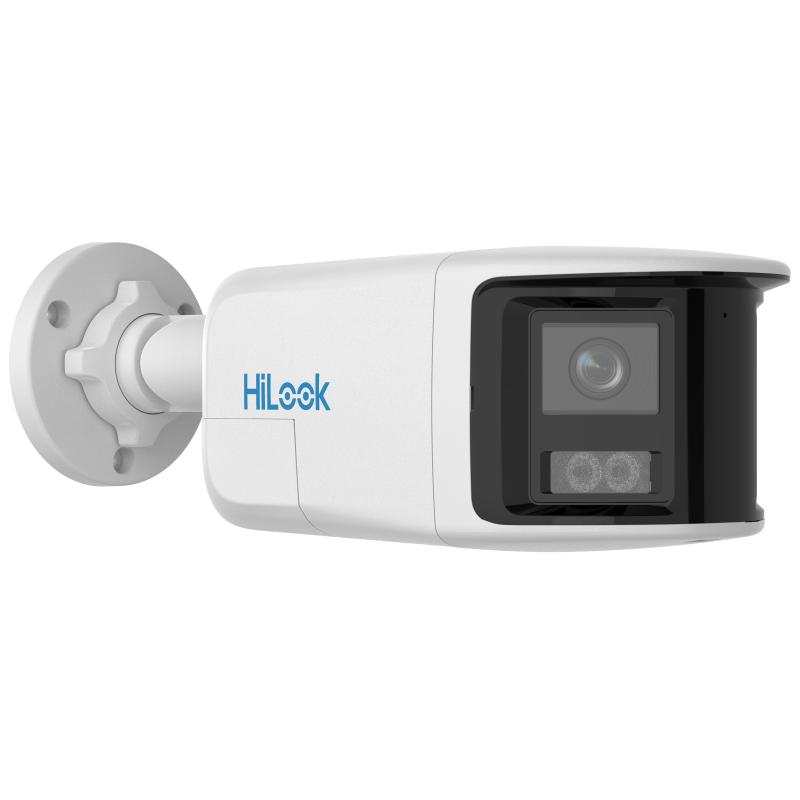

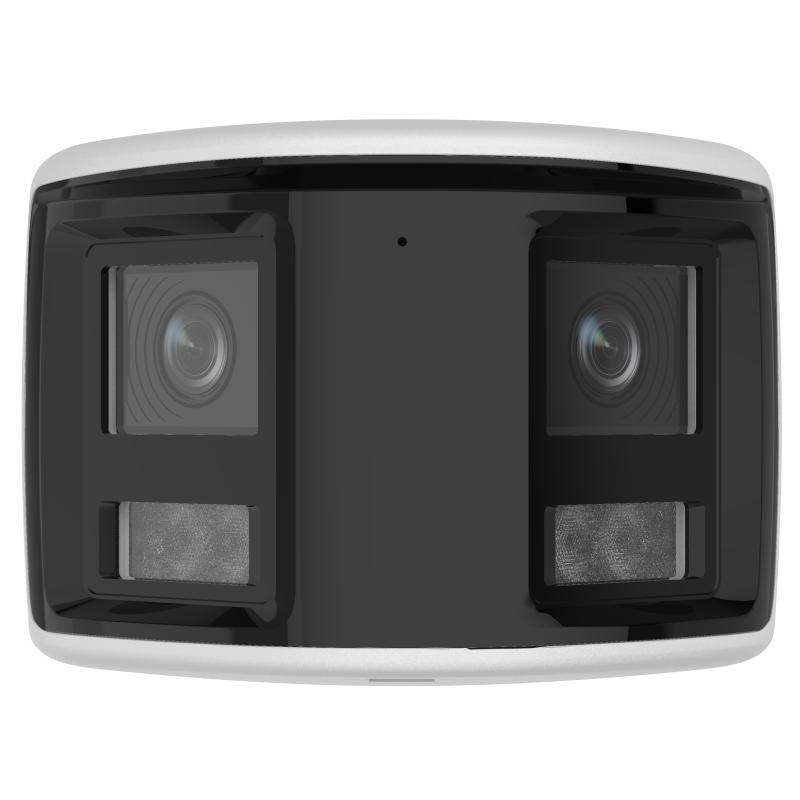

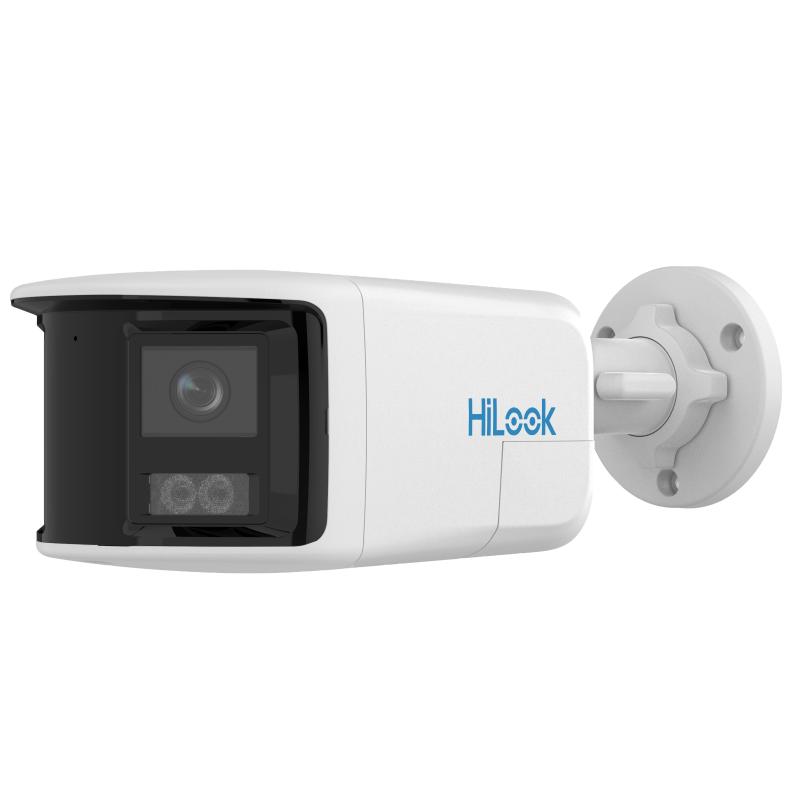

HiLook IPC-B469HAD-LUF/SL 6MP Dual Lens Panoramic Smart Hybrid Light Fixed Bullet Network Camera
The HiLook IPC-B469HAD-LUF/SL is a powerful 6MP dual lens panoramic network camera designed to provide seamless 180° wide-angle coverage from a single device. Using advanced dual-lens image stitching technology, it delivers a continuous panoramic image, making it an ideal solution for monitoring large open areas such as car parks, warehouses, retail parks, schools, industrial sites, and commercial premises.
Featuring 24/7 Colour imaging and Smart Hybrid Light technology, the camera automatically switches between infrared and warm white illumination to deliver clear, detailed footage in all lighting conditions while providing a visible deterrent when required. Intelligent Person and Vehicle Detection helps reduce false alarms by accurately identifying relevant targets, improving the efficiency of your surveillance system.
The built-in microphone and speaker enable two-way audio, while the integrated white strobe light and audible alarm provide active deterrence against potential intruders. H.265+ video compression reduces storage and bandwidth requirements, and support for up to 512GB microSD local storage offers additional recording flexibility. Built with an IP67-rated weatherproof housing and PoE support, the IPC-B469HAD-LUF/SL is a reliable and versatile solution for demanding indoor and outdoor security applications.
Key Features
- 6MP dual lens camera with seamless 180° panoramic viewing
- 24/7 full-colour imaging for enhanced night-time visibility
- Smart Hybrid Light with infrared and warm white illumination
- Intelligent Person and Vehicle Detection to minimise false alarms
- Built-in microphone and speaker for two-way audio communication
- Active white strobe light and audible alarm for proactive deterrence
- H.265+ video compression for efficient bandwidth and storage usage
- Supports microSD cards up to 512GB for edge recording
- IP67 weatherproof housing for reliable outdoor performance
- Power over Ethernet (PoE) for simplified installation
- Ideal for warehouses, car parks, schools, retail sites, industrial premises, and large residential properties
