Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

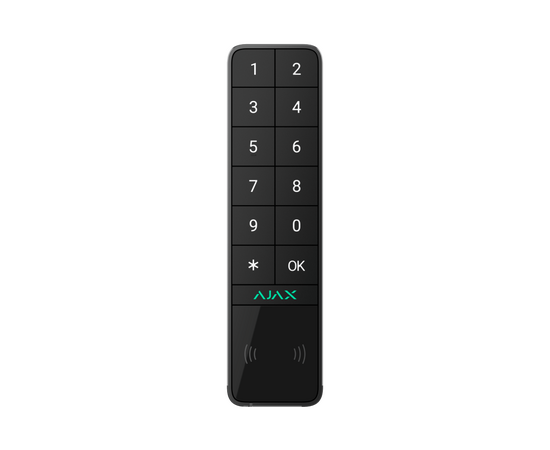

KeyPad Outdoor Jeweller
Wireless keypad supporting authentication via Pass, Tag, smartphones, and codes. For outdoor and indoor use.
Control your space, rain or shine
KeyPad Outdoor Jeweller is the first wireless Ajax keypad for managing security and automation outdoors. With multiple authentication methods, the device ensures convenient and secure system control in any scenario. A solid radio communication range and pre-installed batteries make the device ideal for hard-to-wire site and off-grid locations. The sturdy enclosure with large mechanical buttons is built to withstand extreme weather and physical impact. Clear sound and LED indication provide intuitive feedback, enhancing the overall user experience.
With KeyPad Outdoor Jeweller, security management is always within reach. The keypad can control the entire facility or specific groups and supports Night mode. Additionally, the device can operate in bypass mode, activating an entry/exit delay before the system is disarmed using the main keypad.
Fast and secure authentication
KeyPad Outdoor Jeweller supports multiple authentication methods — Pass and Tag access devices, smartphones, and codes — providing maximum convenience for any use case. All events, including user activity and authentication details, are logged and can be viewed in Ajax apps.
Contactless access devices
Both Pass cards and Tag key fobs feature original DESFire® chips and provide identical functionality in different form factors. A single access device can control up to 13 security systems. Pass and Tag devices are sold separately in batches of 3, 10, or 100 units.
Access codes for unregistered users
KeyPad Outdoor Jeweller supports up to 99 codes for users without Ajax accounts, depending on a hub model. Configurable in the hub settings, these codes are ideal for granting access to verified temporary visitors, such as office staff or cleaning personnel.
