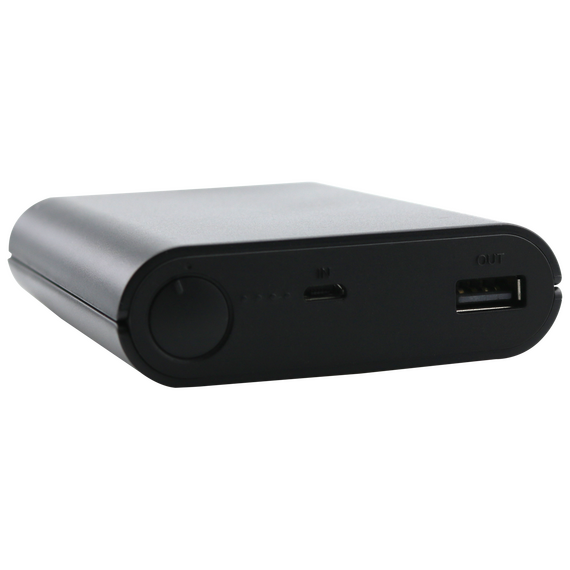

LawMate PV-PB20i Power Bank IP Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

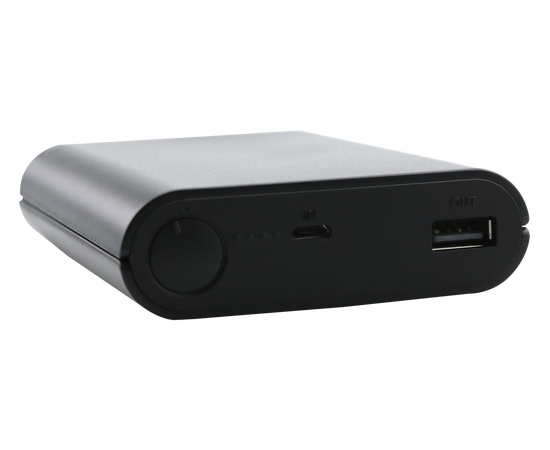

This is the new LawMate PV-PB20i, a full HD 1080p covert recording solution that functions and appears as an external USB power bank.
The Lawmate PV-PB20i recorder appears to be a generic external USB power bank, it is actually a Wi-Fi & IP enabled complete video recording system. The Wi-Fi connection permits full user control via your smart phone or tablet, the IP connection will allow you to view, record, stream and download content from anywhere in the world.
The built-in rechargeable lithium battery will power the PB20i recorder for approximately 8 hours at full HD 1080p. The recorder also has the option to capture using motion detection or continuous recording. The supplied 16gb card will provide approximately 4 hours of full HD video (1080p HD), close to 15 hours at WVGA resolution (800x640). A maximum 32gb Micro SD card can be used with this recording system.
Features:
- Will charge any USB powered device
- 1/ 2.9” inch CMOS sensor
- 0.03 Lux sensory sensitivity
- Recording resolutions, 1080p, 720p & WVGA
- 2MP photo capability (Jpeg)
- 500 minute recording time @ 1080p HD
- Watermarked time-stamped evidential grade video
- Free 16gb SD card supplied, up to 32gb SD card supported
- H.264 .MOV video file format
Wi-Fi Application features:
- Live view
- Ability to switch between standard or motion detection recording
- Start/stop recording
- Set the time & date / synchronise with your smart device time
- 1080p/720p/WVGA switch
- 30 frames per second & 60 frames per second option (not 1080p)
- Card formatting function
- SSID visible/hide switch
Contents:
USB Power bank DVR
USB connection cable
16gb Micro SD card
