Nice Solemyo SYKCE Solar Power Kit
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

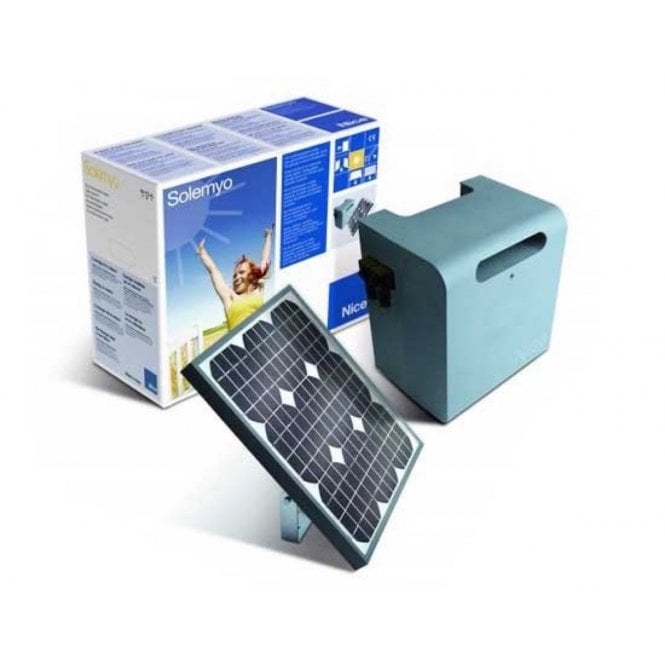

The SOLEMYO-KIT is a comprehensive solar power solution designed for gate, garage door, and road barrier automation systems. This self-contained kit enables installations in remote locations without mains power connection or excavation requirements. The system combines high-efficiency photovoltaic technology with extended battery reserves to ensure reliable operation even during prolonged overcast conditions.
Key Features
- Complete solar power system for 24V automation systems
- Installable anywhere without mains power connection
- No excavation or wiring required for power supply
- Extended energy reserves for continuous operation
- Low power consumption design
- Weather-resistant components
- LED indication of full charge status
- Alternative mains charging capability
- Environmentally friendly clean energy solution
- Compatible with all Nice 24V automation systems
- Carrying handles for easy transportation
- Smart charging control circuit
Specifications
| Component | Parameter | Value |
|---|---|---|
| PSY24 Battery Box | Voltage (V) | 24 |
| Maximum Current (A) | 10 | |
| Battery Capacity (Ah) | 20 | |
| Protection Class | IP44 | |
| Operating Temperature (°C) | -20 to +50 | |
| Dimensions (mm) | 235 x 170 x 258h | |
| Weight (kg) | 14 | |
| SYP Solar Panel | Maximum Power (Wp) | 15 |
| System Voltage (V) | 24 | |
| Operating Temperature (°C) | -40 to +85 | |
| Dimensions (mm) | 390 x 28 x 415h | |
| Weight (kg) | 1.9 | |
| SYA1 Mains Adapter | Power Supply (VAC) | 110-240 50/60Hz |
| Maximum Power (W) | 60 | |
| Operating Temperature (°C) | 0 to +40 | |
| Dimensions (mm) | 132 x 58 x 30h | |
| Weight (kg) | 0.345 |
Accessories
Kit includes:
- 1x SYP photovoltaic solar panel (15W, 24V)
- 1x PSY24 battery box with control circuit and carry handles
- 1x SYA1 mains adapter for manual charging
- Charging control circuit with LED indicators
- Installation hardware and documentation
