Nice LFAB4024HS-DKIT 24v double leaf high speed underground kit for gates up to 4m per leaf
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
High speed electric swing gate kit for underground installation.
High quality and reliable kit. Internal components of motors are fabricated in metal and bronze alloy.
Flexible installation options: Possible to release from inside or outside, two key or lever operated models, freely combinable and easy to operate with just one hand.
Simple Installation: built-in mechanical stop system on closure. Standard opening to 110°, or optional 360° with the BMA1RO3
Ideal for intensive use: LFAB4024HS is compatible with the control unit Moonclever MC824H, with BlueBUS technology, Solemyo and Opera systems:
- Underground installation.
- Irreversible electromechanical gear motor 24Vdc, with magnetic encoder and mechanical stop.
- 90° opening in about 6* seconds.

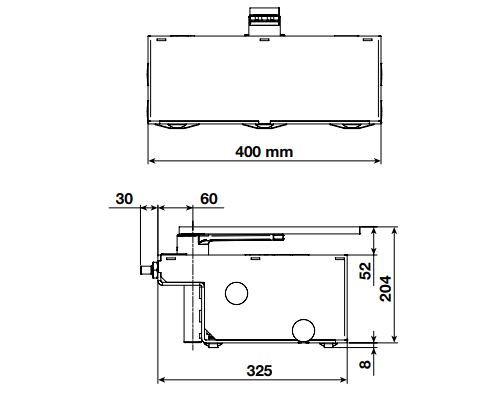

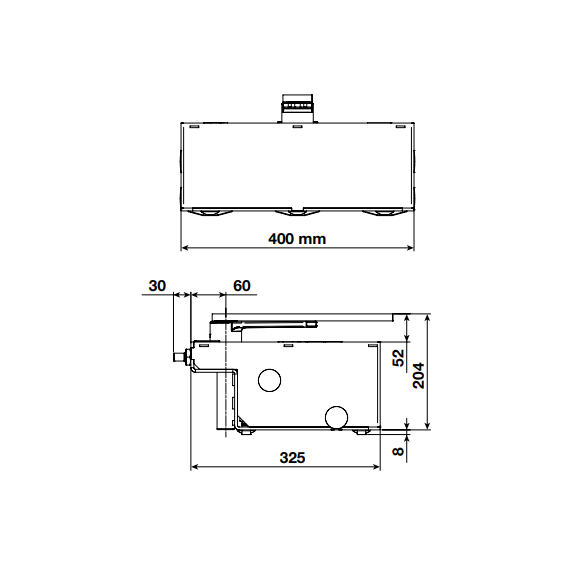

- Foundation boxes with a mechanical stop on opening in stainless steel (LFABBOX4I), ideal for use in extreme conditions.
- With cataphoresis, paint finish (LFABBOX4) highly resistant to corrosion.
- Simple to programme with a single key
- Self learning of travel limits on opening and closing.
- Self- diagnostics of fault
- Programming of pause time
- Pass door
- Deceleration on opening and closing
- Dual technology obstacle detection
- Battery operation (PS324) in the event of a power failure
- Provision for connection of latest generation sensitive edges

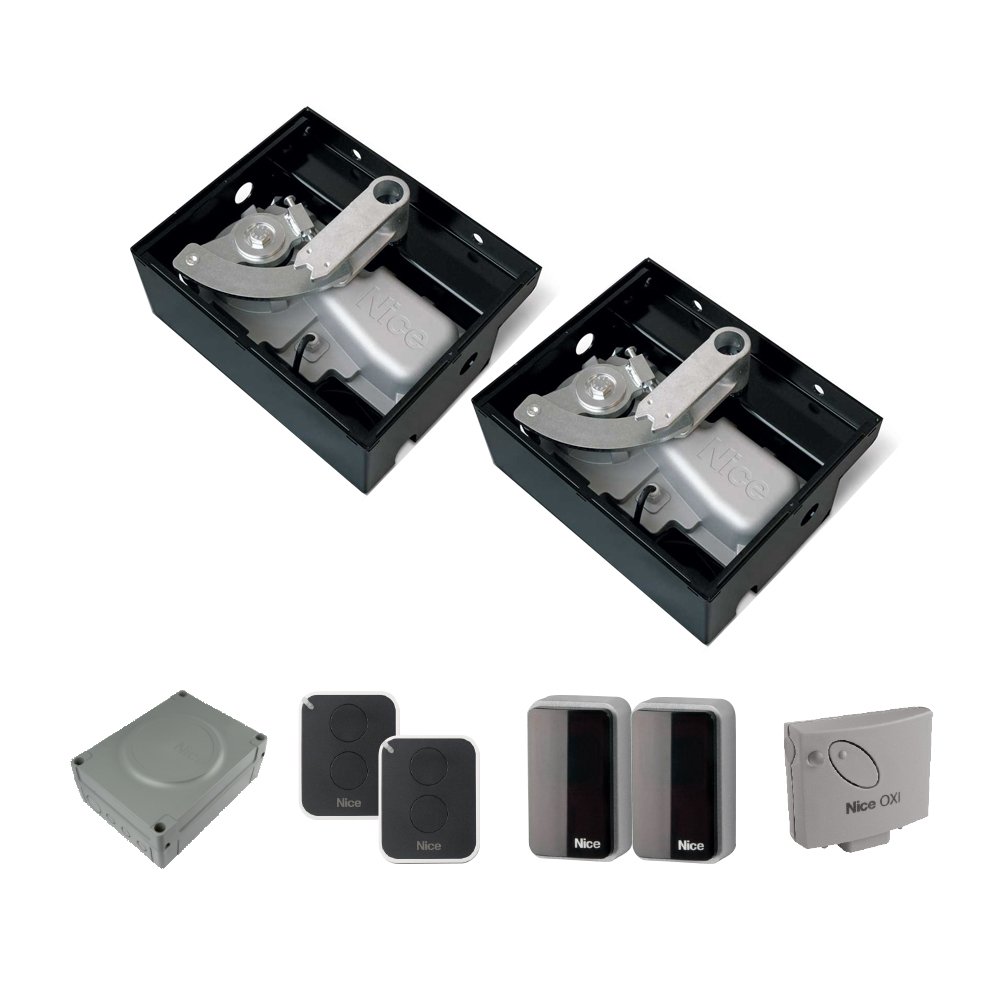

Product Contains
2 x LFABBOX4
Foundation Boxes
2 x LFAB4024HS
24v Motors
1 x MC824H
Control Panel
2 x MYGO4
4 Channel Transmitters
1 x OXIBD
4 Channel Receiver
1 x Pair
EPM Photocells
2 x BMA3
Manual release mechanisms
