Nice RBS400BDKCE Sliding Gate Automation Kit (24V DC) up to 400kg – ROBUS 400 Series
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

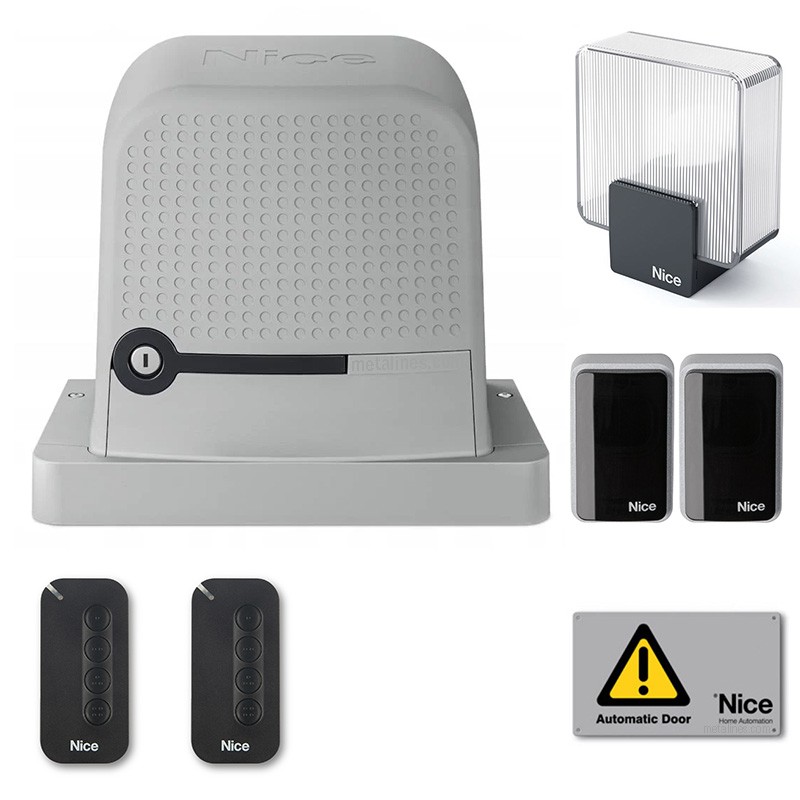

Nice RBS400BDKCE Sliding Gate Automation Kit (24V DC) up to 400kg – ROBUS 400 Series
The Nice RBS400BDKCE (Robus 400 series) is a reliable and compact sliding gate automation system designed for medium-duty residential and light commercial applications. It combines a 24V DC electromechanical gear motor with an integrated control unit, ensuring smooth, efficient, and safe gate operation. This system supports sliding gates up to 400kg and delivers stable performance even under frequent daily use. Its non-reversible motor design provides strong mechanical locking, improving security when the gate is closed. The integrated control board includes advanced features such as automatic travel programming, obstacle detection, soft start/stop, and adjustable force and speed control. The BlueBUS system simplifies wiring by allowing safety and control accessories to connect using just two wires, reducing installation time and complexity.
KEY FEATURES
- Sliding gate automation kit for up to 400kg gates
- 24V DC electromechanical motor with integrated control unit
- Magnetic limit switch system for precise stopping
- BlueBUS technology for simplified 2-wire accessory connection
- Built-in obstacle detection and auto-reverse safety
- Soft start and soft stop for reduced mechanical wear
- Non-reversible motor for added security locking
- Self-learning travel programming
- Supports photocells, flashing lights, and accessories
- Compatible with MyNice / BiDi-WiFi smart modules
- Intensive-duty cycle for frequent operation
- Compact design for easy installation and maintenance
- Suitable for residential and light commercial use
