Nice ROBUS1000P-KIT Sliding Gate Automation Kit (24V DC) up to 1000kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

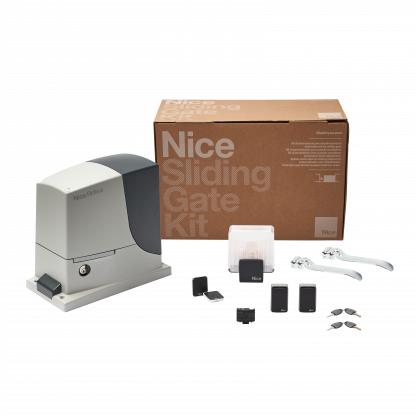

Nice ROBUS1000P-KIT High-Speed Sliding Gate Automation Kit (24V DC) up to 1000kg
The Nice ROBUS1000P-KIT is part of the premium ROBUS sliding gate range designed for large and heavy gate automation. It uses a 24V DC electromechanical gear motor with an integrated control unit, ensuring smooth, safe, and powerful operation even under intensive daily use. This model supports sliding gates up to 1000kg and is ideal for commercial buildings, industrial entrances, and large residential properties. The inductive limit switch system (P version) provides non-contact position detection, improving accuracy and reducing mechanical wear over time. The system incorporates Nice BlueBUS technology, which allows all accessories such as photocells, safety devices, and signal lights to connect using a simple two-wire system. This reduces installation complexity and improves reliability.
KEY FEATURES
- Sliding gate automation kit for up to 1000kg gates
- 24V DC electromechanical motor with integrated control unit
- Inductive (non-contact) limit switch system
- BlueBUS technology for simple 2-wire accessory connection
- Built-in obstacle detection and auto-reverse safety
- Soft start and soft stop operation
- Self-learning travel programming
- Non-reversible motor for enhanced security locking
- Thermal adaptive motor force control
- Intensive-duty cycle for frequent operation
- Compatible with photocells, receivers, and accessories
- Supports battery backup (PS124 optional)
- Quiet and smooth gear operation
- Suitable for residential, commercial, and industrial use
