Nice RUN1200HS-KIT High-Speed Sliding Gate Automation Kit (24V DC) up to 1200kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

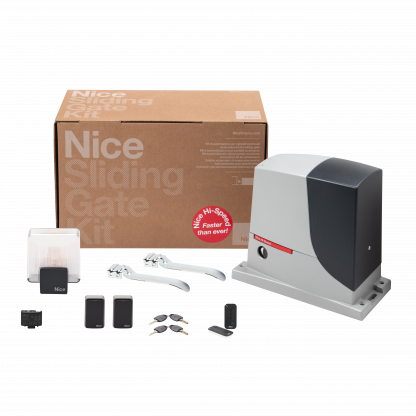

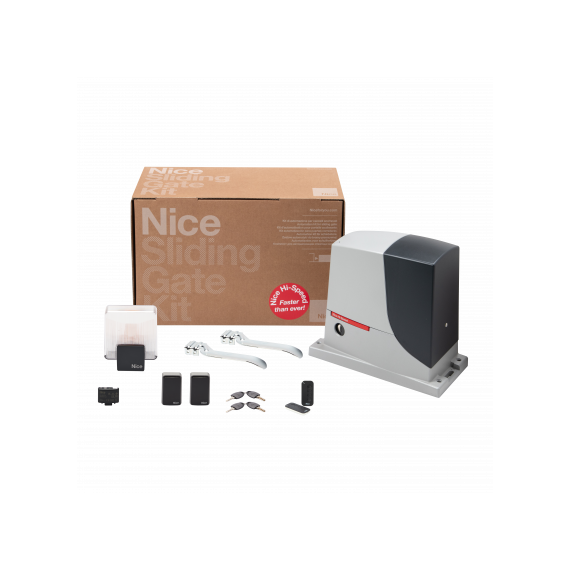

Nice RUN1200HS-KIT High-Speed Sliding Gate Automation Kit (24V DC) up to 1200kg
The Nice RUN1200HS-KIT is one of the most powerful high-speed sliding gate automation systems in the Nice Hi-Speed range. It is engineered for large, heavy, and frequently used sliding gates, offering fast, smooth, and reliable movement even under demanding conditions. Powered by a 24V DC electromechanical gear motor, the system supports gates up to 1200kg and long gate spans up to approximately 14m (depending on installation). Despite its heavy-duty capability, it maintains high-speed operation, achieving fast opening and closing cycles—typically around 18 seconds for a 7m gate. The integrated control unit provides intelligent automation with features such as obstacle detection, automatic travel programming, adjustable acceleration and deceleration, and self-diagnostics. The BlueBUS system simplifies wiring by allowing multiple safety and control devices to connect using just two wires.
KEY FEATURES
- High-speed heavy-duty sliding gate automation kit
- Supports gates up to 1200kg
- 24V DC electromechanical gear motor
- Ultra-fast operation: ~18 seconds for 7m gate
- Integrated control unit with smart programming
- BlueBUS technology for simple 2-wire accessory connection
- Magnetic/electromechanical limit switches
- Intensive-duty cycle for frequent operation
- Built-in obstacle detection and auto-reverse safety
- Adjustable acceleration and deceleration control
- Temperature sensor for motor force adaptation
- Self-learning travel programming
- Non-reversible motor for added security
- Compatible with photocells, receivers, and safety accessories
- Suitable for residential, commercial, and industrial gates
