Nice RUN1800-KIT High-Performance Sliding Gate Automation Kit (24V DC) up to 1800kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

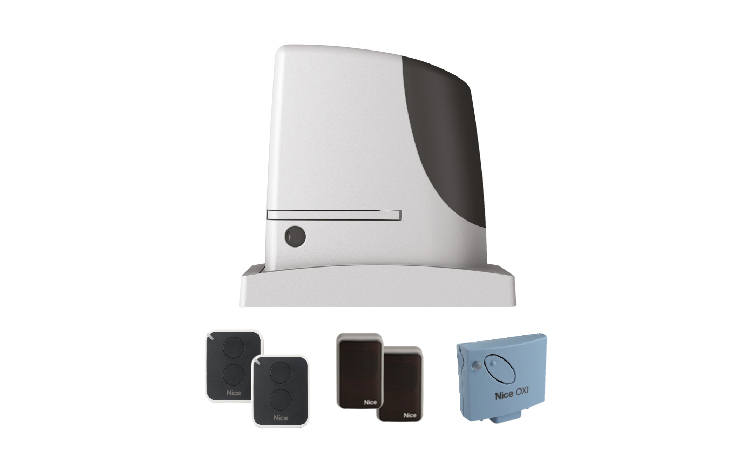

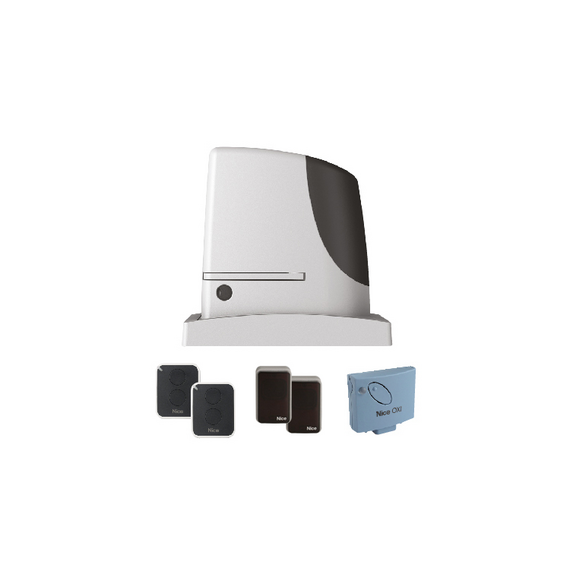

Nice RUN1800-KIT High-Performance Sliding Gate Automation Kit (24V DC) up to 1800kg
The Nice RUN1800-KIT is one of the most powerful sliding gate automation systems in the Nice RUN range, engineered for extremely heavy and high-traffic gates used in industrial, commercial, and large residential environments. It uses a 24V DC electromechanical gear motor with a built-in control unit, ensuring smooth, controlled, and reliable operation even under extreme load conditions. The system is capable of handling sliding gates up to 1800kg, making it suitable for very large steel gates, industrial entrances, and security perimeter systems. The RUN1800 is designed for intensive duty use, featuring a ventilated motor system that helps maintain performance in harsh environmental conditions. It also includes thermal force adaptation, where the motor automatically adjusts torque and cooling based on temperature, improving safety and durability. The integrated BlueBUS system allows fast installation by connecting accessories (photocells, safety devices, and signaling equipment) using just two wires. This significantly reduces wiring complexity while improving system reliability and expandability.
KEY FEATURES
- Heavy-duty sliding gate automation kit
- Supports gates up to 1800kg
- 24V DC electromechanical gear motor
- Integrated control unit (built-in system)
- BlueBUS 2-wire accessory connection system
- Thermal adaptive force control system
- Ventilated motor for extreme environments
- Intensive-duty cycle for industrial use
- Smooth start and stop operation
- Obstacle detection and auto-reverse safety
- Self-learning travel programming
- Master/slave dual motor synchronization
