Nice TOONA4024-DKIT High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 3m / 500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

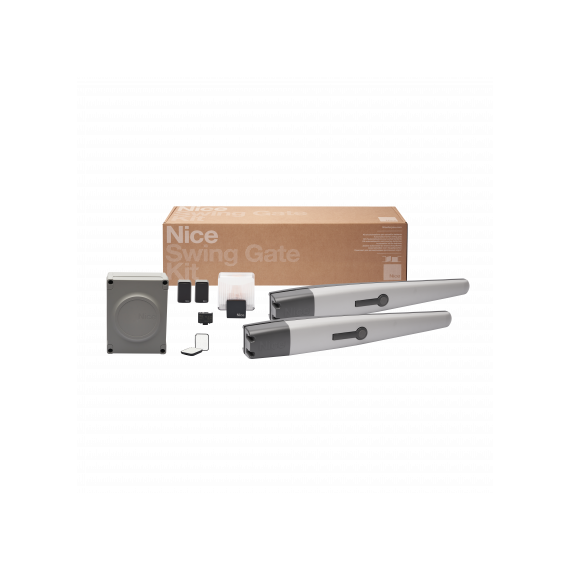

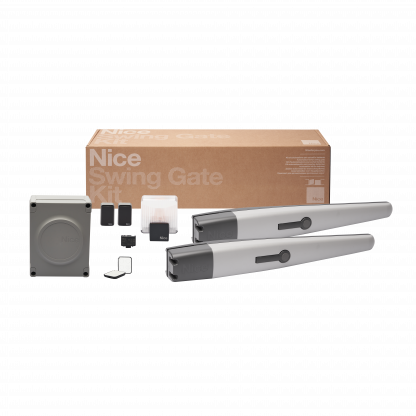

Nice TOONA4024-DKIT High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 3m / 500kg
The Nice TOONA4024-DKIT is a premium twin swing gate automation system designed for reliability, strength, and smooth performance in daily use. It uses surface-mounted electromechanical linear actuators powered by 24V DC motors, ensuring efficient operation with low energy consumption and high durability. This system is engineered for gates up to 3 metres per leaf and 500kg per leaf, making it suitable for most residential and light commercial entrances. The magnetic encoder technology provides precise movement control, improved safety, and accurate positioning of the gate during opening and closing cycles. The TOONA series is built with robust aluminium housing and weather-resistant materials, making it suitable for outdoor environments and long-term use. Its intensive-duty design allows frequent operation without overheating or performance loss.
KEY FEATURES
- High-speed surface-mounted swing gate automation kit
- Suitable for double gates up to 3m per leaf
- Supports gate weight up to 500kg per leaf
- 24V DC electromechanical motor system
- Magnetic encoder for precise position control
- Intensive-duty cycle for frequent operation
- Mechanical stop on opening for reliability
- Built-in obstacle detection and auto-reverse safety
- Smooth start and stop to reduce wear
- Compatible with MC824H control unit
- BlueBUS technology for easy accessory connection
