NICE TOONA5024HS-DKIT 24V DC Double Swing Gate Automation Kit
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Nice TOONA5024HS-DKIT High-Speed Double Swing Gate Automation Kit
The Nice TOONA5024HS-DKIT is a premium high-speed automation solution designed for double swing gates in residential, commercial, and industrial environments. Featuring powerful 24V DC motors with magnetic encoders, this kit provides rapid opening speeds, precise movement control, and enhanced safety while maintaining quiet and reliable performance.
Key Features

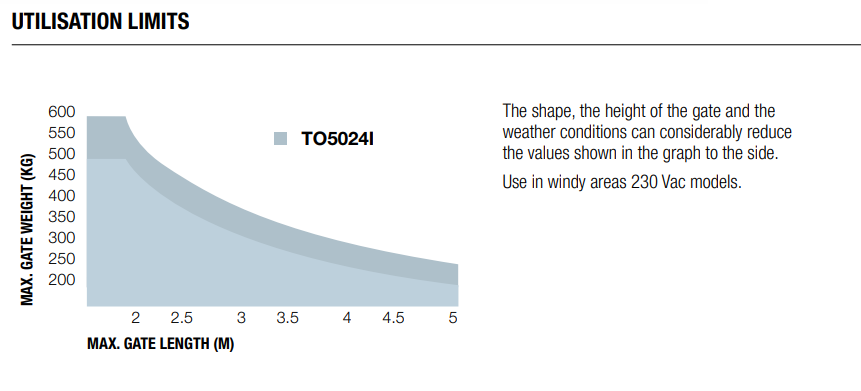

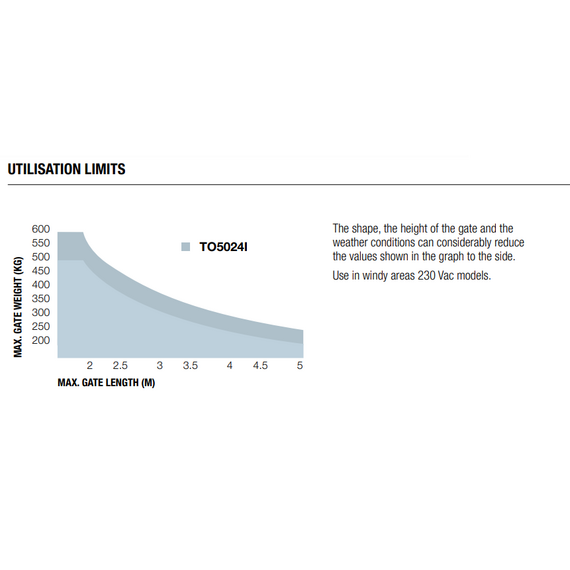

- Suitable for double swing gates up to 5m wide or 400kg per leaf
- High-speed operation with 90° opening in approximately 16 seconds
- Powerful 24V DC electromechanical motors
- Integrated magnetic encoder for precise movement and obstacle detection
- Mechanical stop in both opening and closing positions
- Designed for intensive and frequent-use applications
- Quiet operation thanks to patented internal component design
- Durable aluminium housing with weather-resistant finish
- Built-in safety features including advanced obstacle detection
- Easy access connection compartment for simplified installation and maintenance
- Compatible with optional battery backup systems for operation during power outages

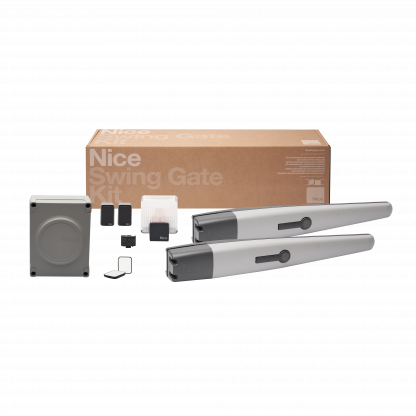

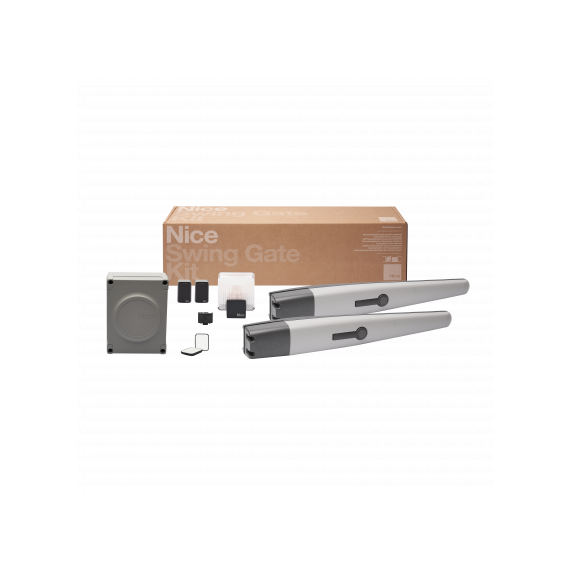

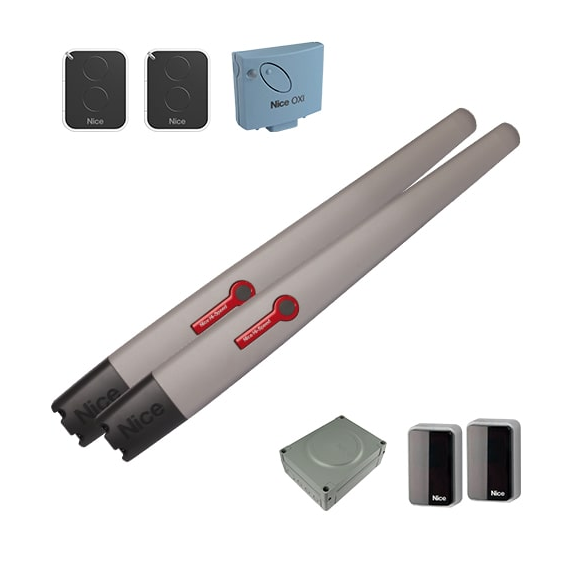

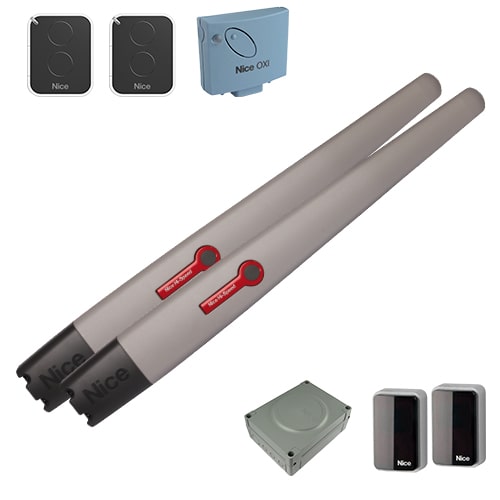

Kit Contents
- 2 x Nice TO5024HS 24V DC gate motors
- 1 x MC824H Moonclever control unit
- 2 x ON2E two-button remote transmitters
- 1 x OXI/OXIBD radio receiver
- 1 x Pair of EPMB BlueBUS photocells
- Installation accessories and mounting hardware
Ideal Applications
- Residential driveway gates
- Commercial premises
- Industrial sites
- High-traffic entrances requiring fast gate operation
- Intensive-use access control systems
Technical Specifications
- Motor Voltage: 24V DC
- Maximum Gate Length: 5m per leaf
- Maximum Gate Weight: 400kg per leaf
- Opening Speed: Approx. 16 seconds to 90°
- Protection Rating: IP44
- Duty Cycle: Intensive Use
- Maximum Opening Angle: Up to 120°
