Nice TOONA5024-SKIT High-Performance Swing Gate Automation Kit (24V DC) for Single Leaf Gates up to 5m / 500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

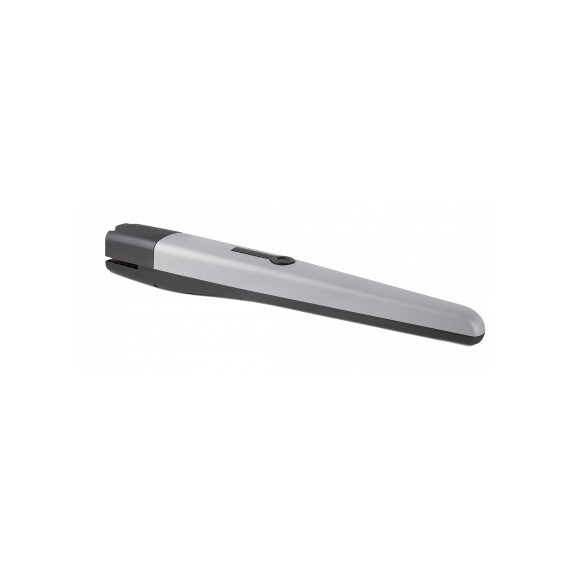

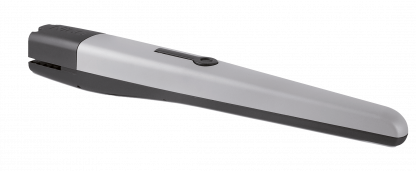

Nice TOONA5024-SKIT High-Performance Swing Gate Automation Kit (24V DC) for Single Leaf Gates up to 5m / 500kg
The Nice TOONA5024-SKIT is part of the TOONA 24V high-performance automation range, engineered for large and frequently used swing gates. Designed for single-leaf installations, it delivers strong torque, smooth movement, and long-term reliability in demanding environments. Powered by a 24V DC electromechanical actuator with a magnetic encoder, the system ensures precise gate positioning, controlled acceleration and deceleration, and improved obstacle detection. This makes it ideal for gates that require both safety and high operating efficiency. The kit is built for intensive use, supporting frequent daily cycles in residential complexes, commercial entrances, and industrial access points. Its robust aluminium housing with weather-resistant coating ensures durability in outdoor conditions.
KEY FEATURES
- Heavy-duty surface-mounted swing gate automation kit
- Designed for single gates up to 5m length
- Supports gate weight up to 500kg
- 24V DC electromechanical linear actuator
- Magnetic encoder for precise movement control
- Intensive-duty cycle for frequent operation
- Smooth soft start and soft stop function
- Built-in obstacle detection with auto-reverse safety
- Mechanical locking for improved security
- Programmable opening and closing limits
- Compatible with MC824H control unit
- BlueBUS technology for accessory integration
