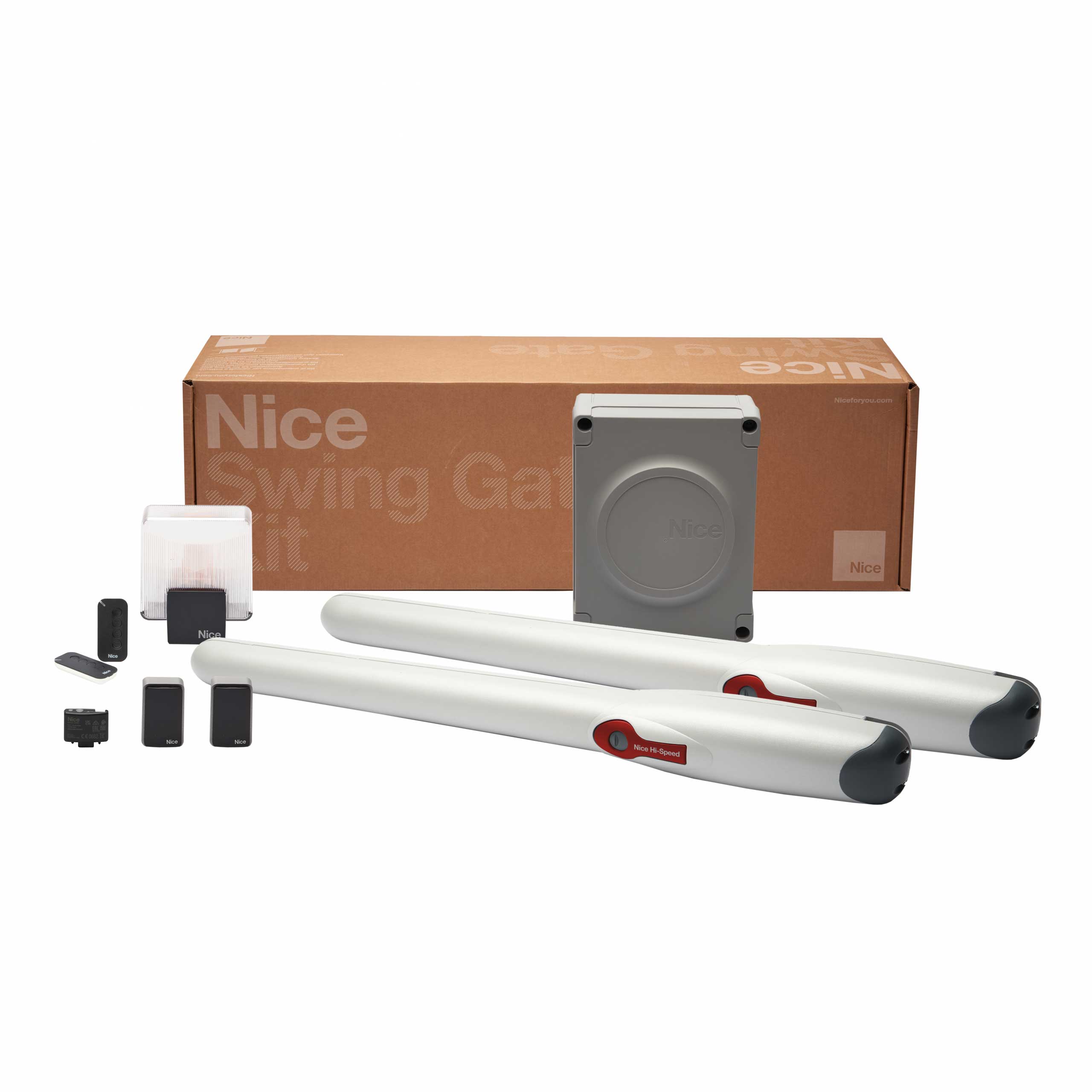

Nice WINGO3524HSSBDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates
The Nice WINGO3524HSSBDKCE is part of the advanced Nice Hi-Speed swing gate range, engineered to deliver fast, reliable, and safe automation for double swing gates. Using powerful 24V DC electromechanical operators with magnetic encoder technology, the system ensures precise motion control, smooth operation, and accurate obstacle detection. This kit is designed for surface-mounted installation, making it ideal for residential and light commercial properties where speed and reliability are essential. The high-speed mechanism enables gate opening up to 90° in approximately 10 seconds, significantly improving access efficiency. Built for intensive use, the system supports gates up to 3m per leaf and 200kg per leaf. It includes a smart control unit with programmable functions such as partial opening (pedestrian mode), obstacle detection, and automatic travel learning. The system also supports battery backup, allowing operation during power failures when equipped with optional batteries.
KEY FEATURES
- High-speed swing gate automation kit for double gates
- Supports gate leaves up to 3m and 200kg each
- Ultra-fast opening: ~10 seconds to 90°

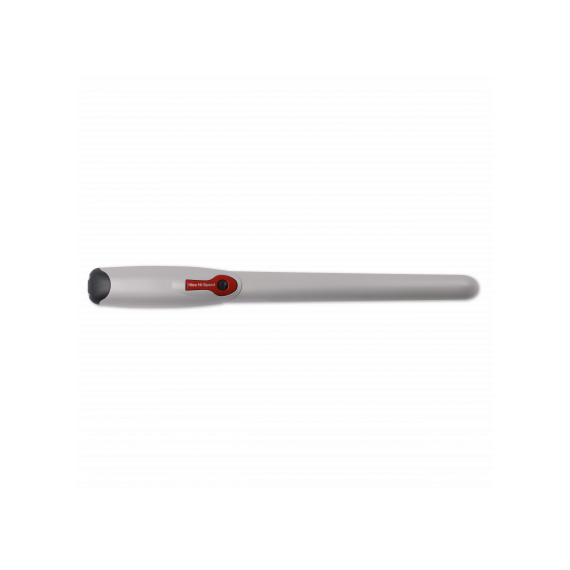

- 24V DC electromechanical motor system
- Magnetic encoder for precise positioning
- Surface-mounted installation (no underground works)
- Intelligent obstacle detection and safety reversal
- Smooth start/stop for reduced mechanical stress
- Pedestrian (partial opening) mode
- BlueBUS technology for easy accessory wiring
- Self-learning travel limit programming
1 x MC824H,
2 x MYGO4,
1 x BIDI-WIFI,
1 x EPMB,
1x ELDC,
1 x TS.
