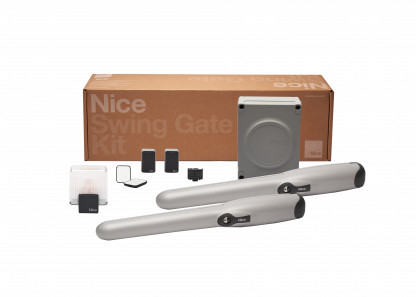

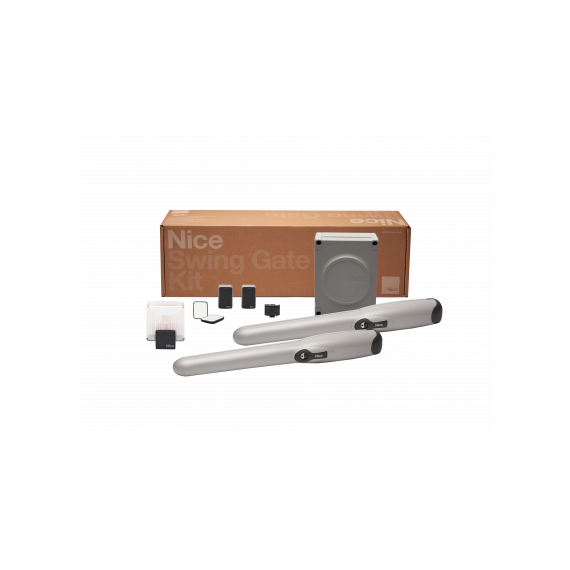

Nice WINGO4024BDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 2m / 400kg
The Nice WINGO4024BDKCE is part of the Wingo 24V automation range, designed to deliver reliable, smooth, and safe operation for double swing gates. Built with electromechanical linear actuators and an intelligent MC424L control unit, the system ensures accurate movement control, reduced wear, and long-term durability. Using 24V DC technology, the system is suitable for intensive daily operation while maintaining energy efficiency. It is designed for gates up to 2m per leaf and 400kg per leaf, making it ideal for standard residential entrances requiring strong but compact automation. The kit includes bidirectional (BD) radio technology, allowing users to receive real-time feedback on gate status through compatible remote controls. Safety is enhanced with built-in obstacle detection, automatic reversal, and programmable opening/closing limits for precise gate travel control. Its surface-mounted installation makes it easy to retrofit existing gates without excavation, while mechanical locking ensures secure closure. The system is also compatible with battery backup solutions, ensuring continued operation during power failures.
KEY FEATURES
- High-speed surface-mounted swing gate automation kit
- Suitable for double gates up to 2m per leaf
- Supports gate weight up to 400kg per leaf
- 24V DC electromechanical linear actuator system
- Fast opening: approx. 18 seconds to 90°
- MC424L intelligent control unit
- Bidirectional (BD) remote feedback technology
- Magnetic limit switches for precise control
- Built-in obstacle detection with auto-reverse
- Mechanical locking for improved security
- Self-learning travel limit setup
- Pedestrian (partial opening) mode
