Nice WINGO5024BDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 3.5m / 500kg
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

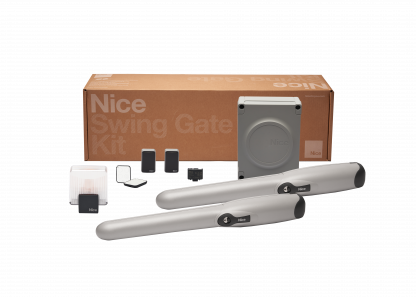

Nice WINGO5024BDKCE High-Speed Swing Gate Automation Kit (24V DC) for Double Gates up to 3.5m / 500kg
The Nice WINGO5024BDKCE is part of the advanced Wingo 24V Hi-Speed automation range, designed to provide reliable and efficient control for double swing gates. It combines robust electromechanical linear actuators with a smart MC424L control unit, ensuring smooth motion, accurate positioning, and enhanced safety. This kit uses 24V DC technology for intensive operation, allowing frequent gate cycles while maintaining low energy consumption and high reliability. The system supports gates up to 3.5m in length and 500kg per leaf, making it suitable for larger residential entrances and small commercial sites. With integrated bidirectional radio technology (BD series), users receive real-time feedback on gate status via remote control, improving convenience and security. The system also includes obstacle detection, partial opening (pedestrian mode), and programmable travel limits for customized operation.
KEY FEATURES
- High-speed surface-mounted swing gate automation kit
- Suitable for double gates up to 3.5m per leaf
- Supports gate weight up to 500kg per leaf
- 24V DC electromechanical linear actuators
- Bidirectional (BD) remote control feedback system
- Fast operation: ~33 seconds for 90° opening
- MC424L intelligent control unit
- Integrated obstacle detection and safety reversal
- Mechanical locking for improved gate security
- Partial opening (pedestrian mode)
- Self-learning travel limit setup
- Surface-mounted installation (no digging required)
- Compatible with photocells, flashing lights, and accessories
