Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

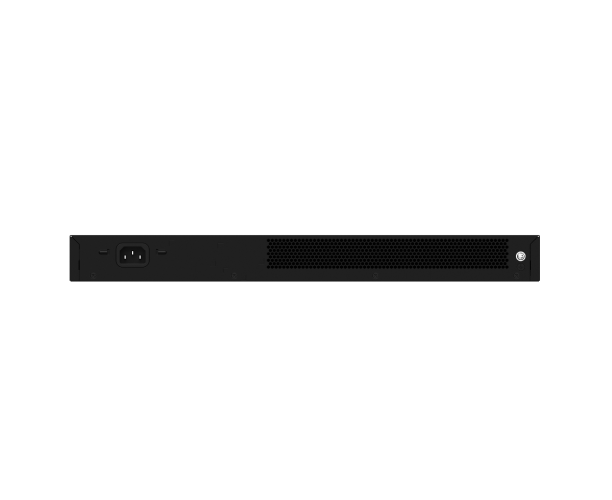

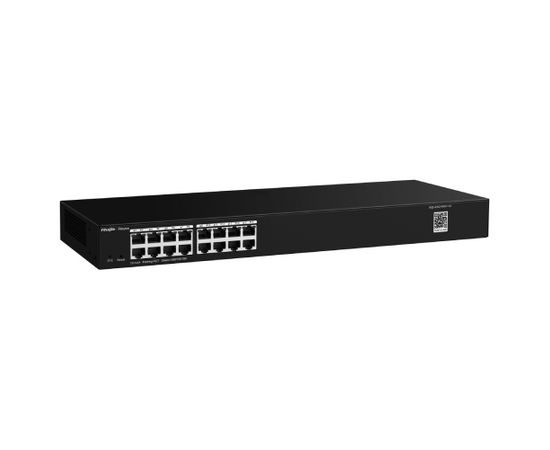

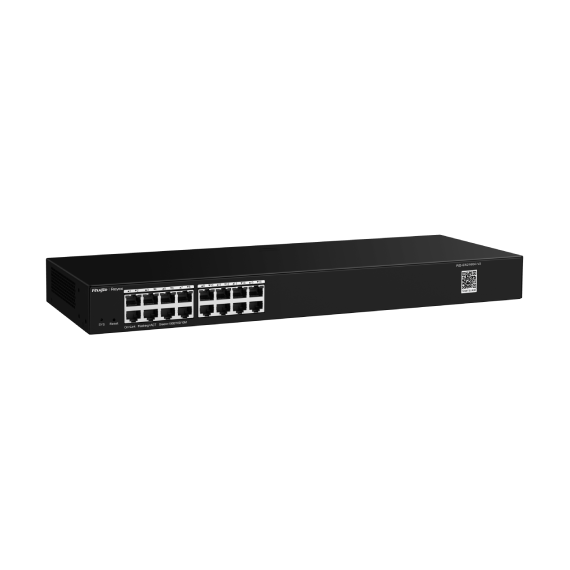

Ruijie Reyee RG-ES216GC-V2 – 16-Port Gigabit Managed Switch with 2 SFP Uplinks
Product Overview
The Ruijie Reyee RG-ES216GC-V2 is a 16-port Gigabit Layer 2 managed switch, designed to deliver reliable performance, strong security, and flexible network control for small and medium-sized business environments. Equipped with 16 Gigabit RJ45 ports and 2 dedicated SFP uplinks, it provides high-speed connectivity and seamless integration into larger fibre-based networks.
Key Features
-
16 Gigabit Ethernet Ports – High-speed connectivity for PCs, servers, access points, and IP cameras.
-
2 SFP Uplinks – Fibre uplinks for expanding network reach and improving backbone reliability.
-
Layer 2 Managed Switching – VLAN, QoS, STP, IGMP Snooping, link aggregation, and more for optimized network control.
-
Enhanced Security – Access control lists, port isolation, and 802.1X authentication to protect against unauthorized access.
-
Easy Network Management – Supports cloud and local management options for simple configuration and monitoring.
-
High Switching Capacity – Ensures stable performance in demanding environments with multiple active devices.
-
Durable Metal Housing – Rack-mountable design suitable for office wiring cabinets or equipment rooms.
Ideal Applications
-
Small to medium-sized business networks needing segmented and secure switching.
-
Office deployments requiring reliable Gigabit connectivity for workstations and access points.
-
Surveillance systems where stable PoE-compatible switching (paired with PoE injectors or other PoE switches) is needed.
-
Retail, hospitality, and education sectors requiring structured, manageable network infrastructure.
Why Choose the RG-ES216GC-V2
The RG-ES216GC-V2 offers the right balance of performance, manageability, and scalability, making it an excellent choice for businesses looking to build a stable and secure wired network foundation. Its combination of Gigabit access ports, fibre uplinks, and intelligent management ensures long-term reliability and room for growth.
