Ruijie Reyee RG-NBS5200-24GT4XS 24-Port L3 Cloud Managed GbE Access Switch w/ 4 x 10G SFP+ Ports
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

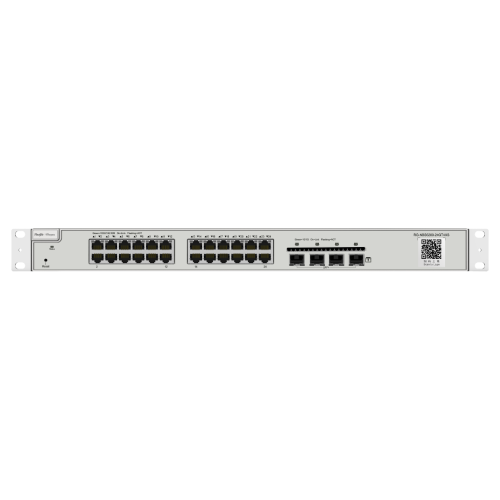

Ruijie Reyee RG-NBS5200-24GT4XS – 24-Port Gigabit L3 Managed Switch with 4 × 10G SFP+ Uplinks
Product Overview

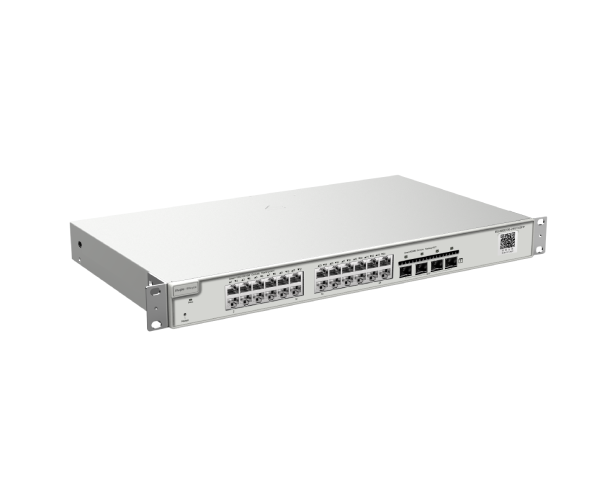

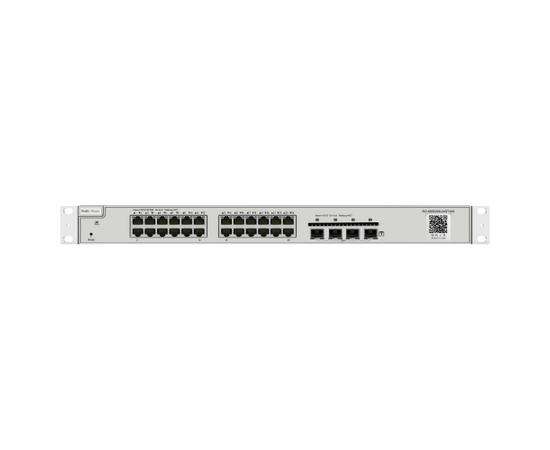

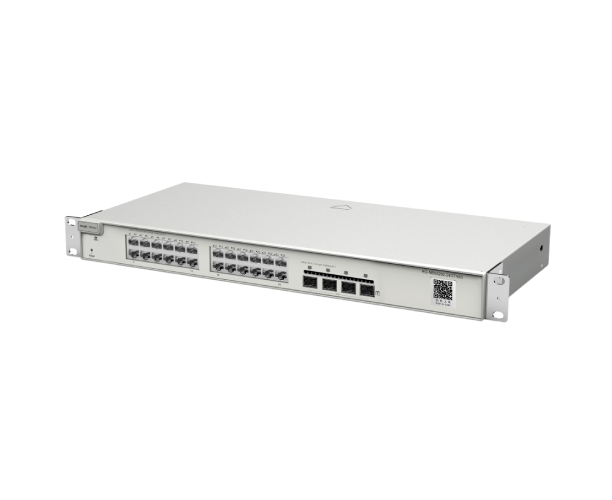

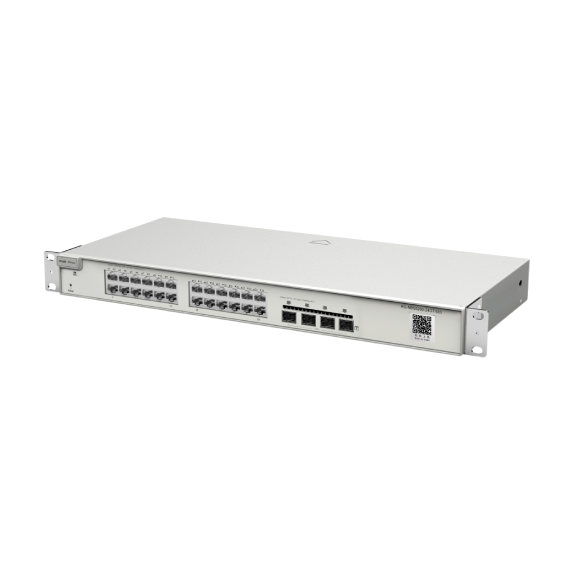

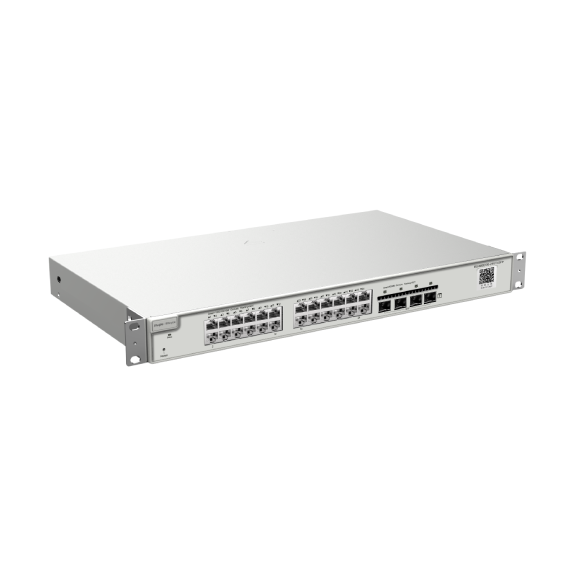

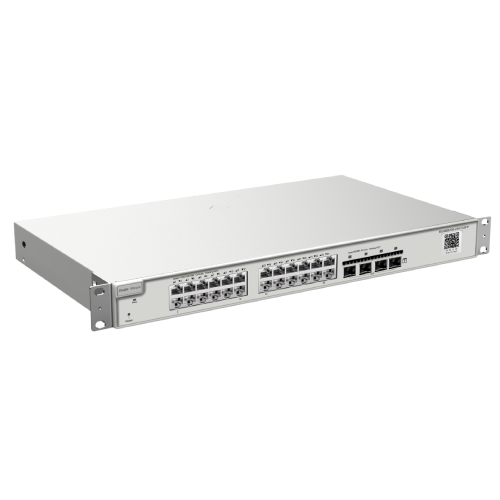

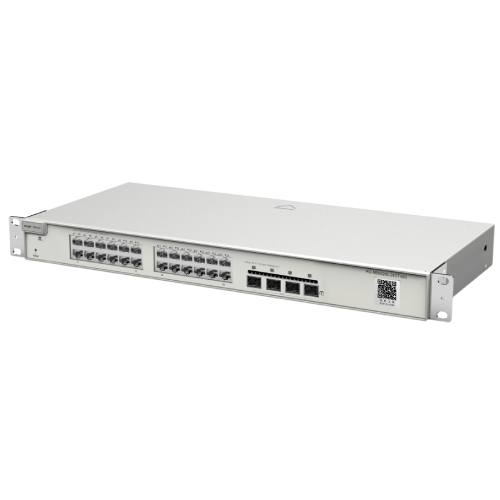

The Ruijie Reyee RG-NBS5200-24GT4XS is a high-performance Layer 3 Gigabit managed switch designed for business networks that require dependable bandwidth, advanced routing features, and 10-Gigabit uplink capability. With 24 Gigabit Ethernet ports and 4× 10G SFP+ uplinks, this switch delivers fast, scalable, and secure network access suitable for offices, campuses, and enterprise environments.
Key Features
-
24 × 10/100/1000 Mbps RJ45 Ports – Ideal for desktops, servers, VoIP, and general network devices.
-
4 × 10G SFP+ Uplinks – High-speed fibre uplinks for backbone, server, or inter-building connectivity.
-
Layer 3 Routing – Supports static routing, OSPF, IPv4/IPv6 routing, and inter-VLAN routing for complex network designs.
-
High Switching Capacity – 128 Gbps switching capacity and approximately 96 Mpps forwarding rate for stable performance under heavy workloads.
-
Advanced Network Controls – VLAN, QoS, ACLs, IGMP snooping, port mirroring, and link aggregation (LACP) for flexible traffic management.
-

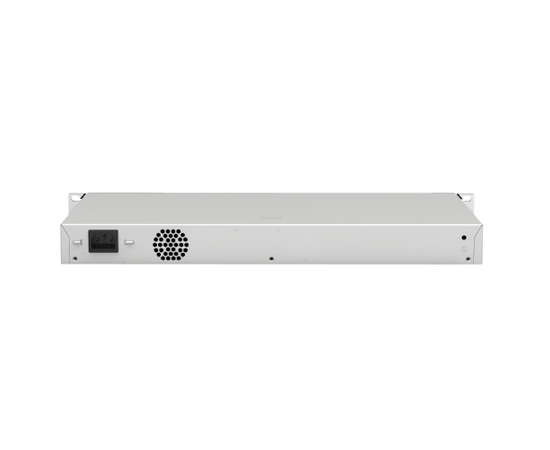

Enterprise-Grade Build Quality – Metal rack-mount chassis, ±6 kV surge protection, and efficient fan cooling for long-term reliability.
-
Cloud & Local Management – Supports Ruijie Cloud, web-based management, and SNMP for easy configuration and monitoring.
Ideal Applications
-
Corporate Offices – Reliable Gigabit access with 10G uplinks for core or distribution layers.
-
Campus & Multi-Building Networks – Fibre uplinks and Layer-3 routing for segmented, high-performance networks.
-
Data Centres & Server Rooms – Suitable as a distribution or aggregation switch with 10G backbone capability.
-
High-Bandwidth Workloads – Designed for environments with large data transfers, virtualisation, and high-traffic applications.
Why Choose the RG-NBS5200-24GT4XS
The RG-NBS5200-24GT4XS delivers efficient Layer-3 routing, high-density port availability, and 10-Gigabit uplink performance at a competitive price point. It is an ideal choice for businesses seeking a future-ready, scalable, and reliable network switch that supports both current demands and long-term expansion.
