Ruijie Reyee RG-RAP62 WiFi 6 Access Point
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Ruijie Reyee RG-RAP62 WiFi 6 Access Point

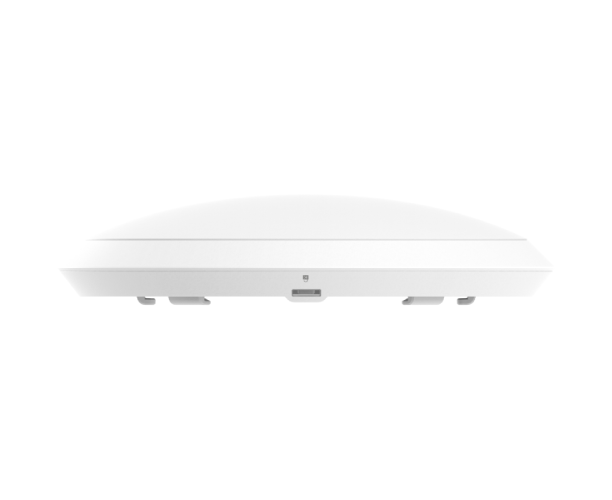

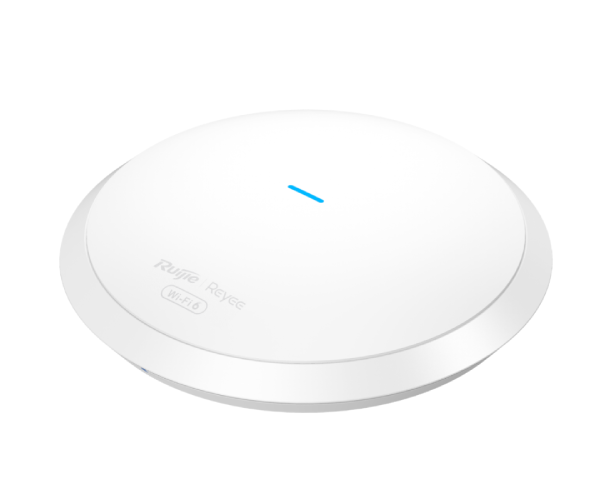

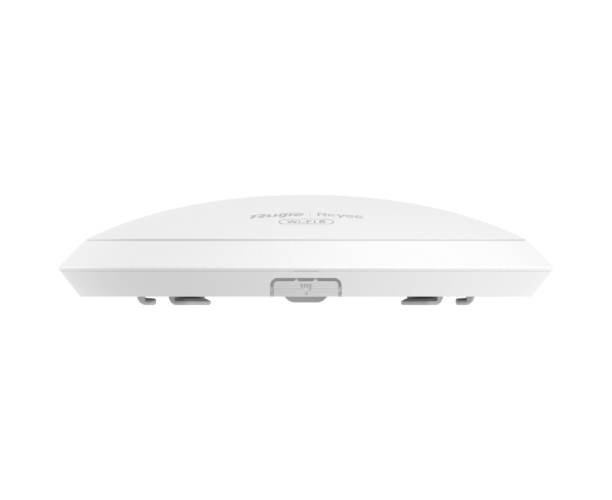

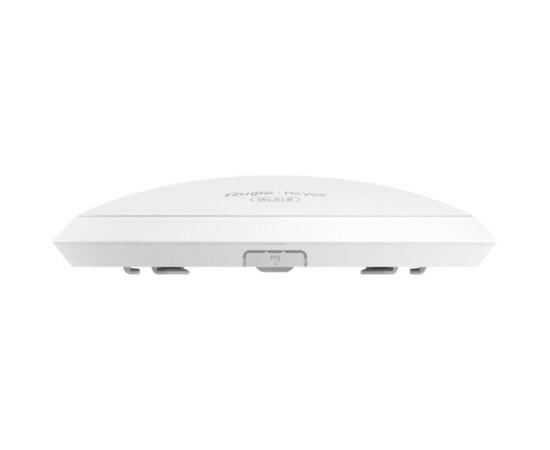

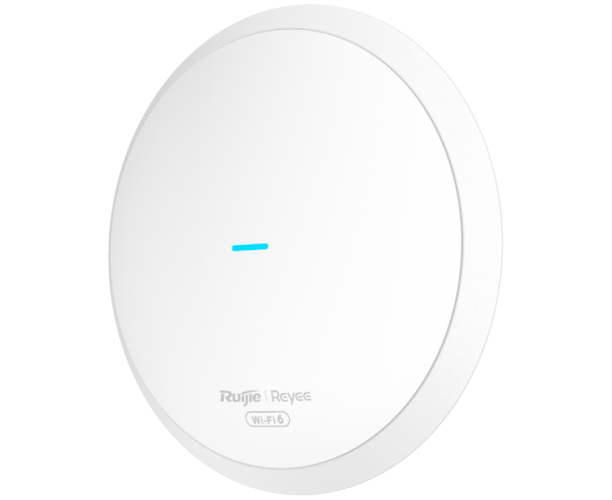

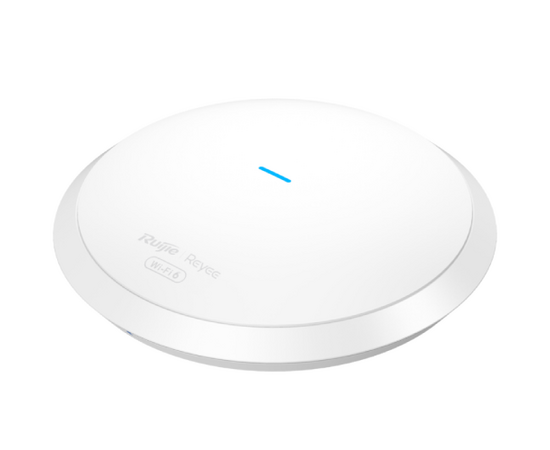

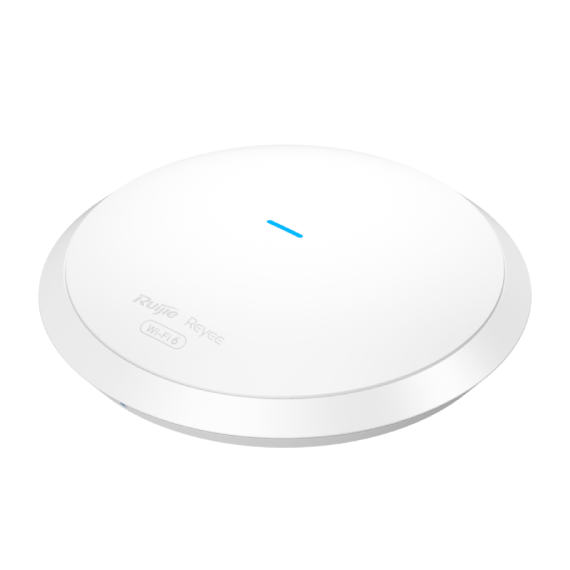

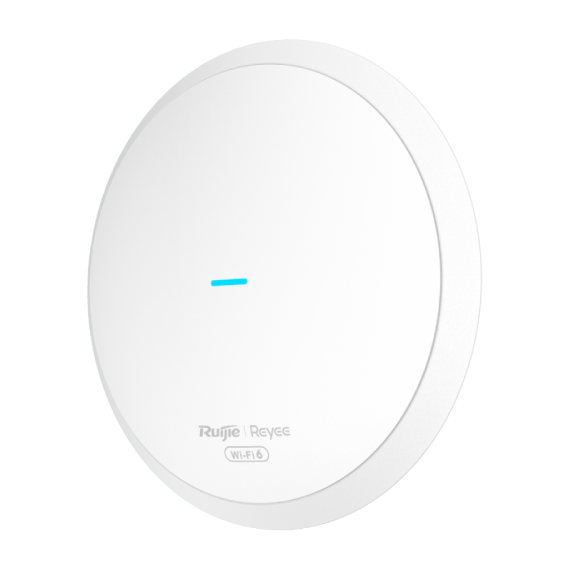

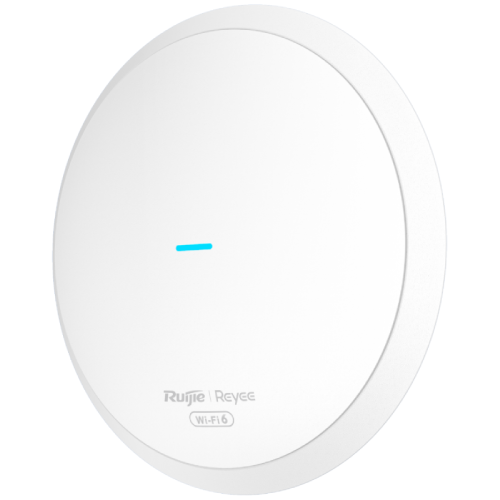

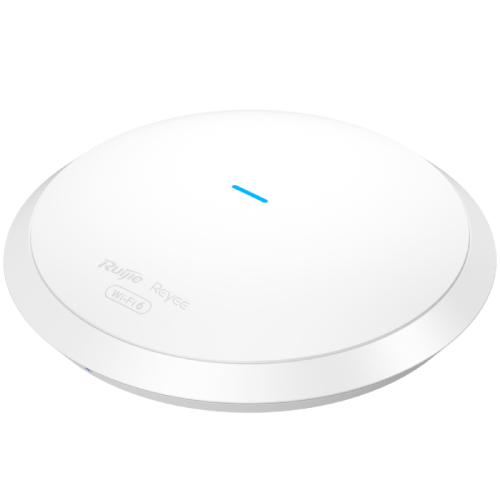

The Ruijie Reyee RG-RAP62 WiFi 6 Access Point delivers high-speed, reliable wireless connectivity in a sleek and compact design. Ideal for hospitality venues, offices, and small to medium commercial environments, this ceiling-mounted AP combines advanced dual-radio technology with intuitive management features to provide a seamless and stable wireless experience. Its modern circular design allows it to blend seamlessly into interior spaces without compromising performance.
Key Features
-
Dual-band WiFi 6 AP with gigabit performance
-
Supports Reyee Mesh and AI Wireless Optimisation (WIO)
-
Easy ceiling or wall installation with compact, unobtrusive design
-
Circular, modern form factor ideal for hotels and offices
-
Standalone portal and management via Ruijie Cloud or Ruijie Reyee app
Dual-Radio Performance
Equipped with dual radios for 2.4 GHz and 5 GHz operation, the RG-RAP62 supports WiFi 6 (802.11ax) with 2×2 MIMO on both bands. Achieving speeds of up to 1774 Mbps, it ensures strong signal quality, extensive coverage, and reliable connections in high-density environments.
Mesh Networking and AI Optimization
The RG-RAP62 fully supports Reyee Mesh, enabling up to 300 self-organizing access points for easy deployment. Built-in AI Wireless Optimisation (WIO) automatically adjusts channels and power settings to maximize network stability and performance, reducing the need for manual intervention.
Simple Installation and Elegant Design

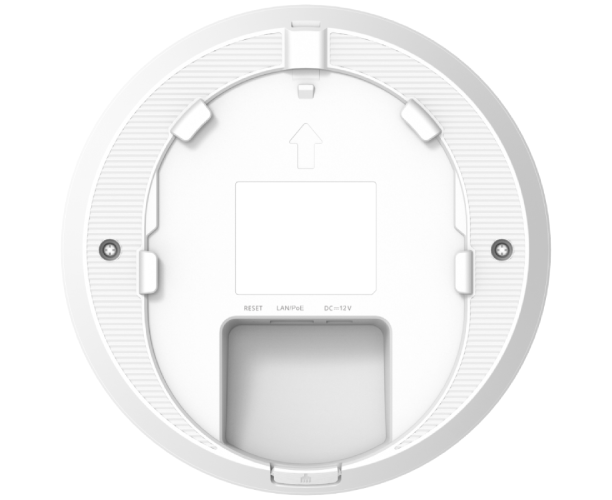

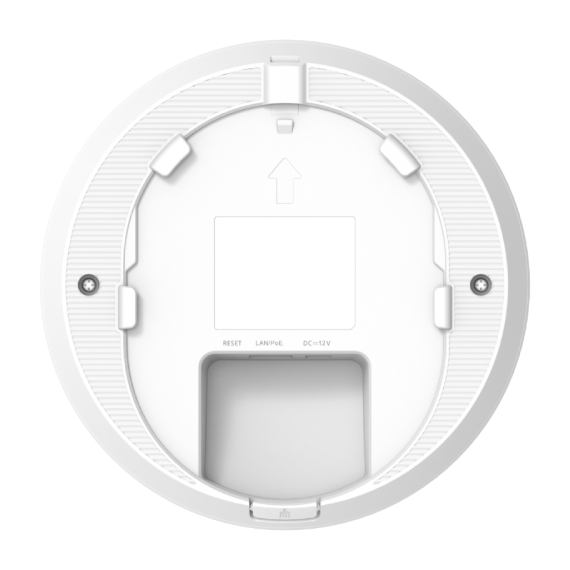

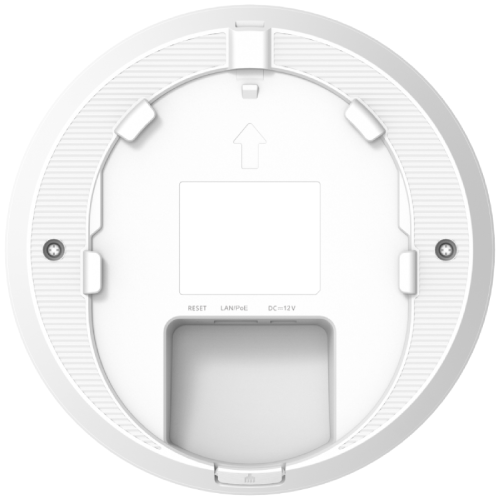

This access point is designed for quick ceiling or wall installation and a minimal visual footprint. Its circular, modern design fits naturally into hospitality, retail, and office spaces, providing discreet yet powerful wireless coverage.
Comprehensive Control via Ruijie Cloud
The RG-RAP62 includes a built-in standalone portal for guest management, bandwidth control, and secure authentication. With cloud management through Ruijie Cloud or the Ruijie Reyee app, administrators can monitor, configure, and maintain their network remotely, ensuring complete control and flexibility.
Standard Warranty: 3 years
