Ruijie Reyee RG-RAP72 Wi-Fi 7 BE3600 Ceiling-Mount Access Point – Dual-Band Enterprise AP
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

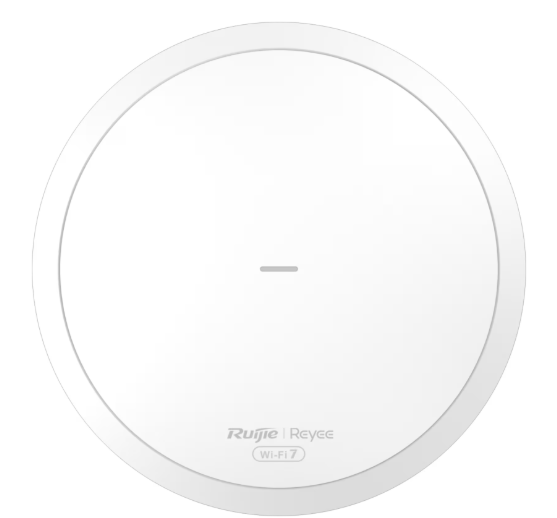

Ruijie Reyee RG-RAP72 Wi-Fi 7 BE3600 Ceiling-Mount Access Point – Dual-Band Enterprise AP
The RG-RAP72 is a Wi-Fi 7 (IEEE 802.11be) ceiling-mount access point engineered by Ruijie Reyee to meet the demands of high-density wireless environments. With BE3600 performance, it delivers significantly improved throughput, efficiency, and stability compared to previous Wi-Fi generations. Built with dual-band 2.4 GHz and 5 GHz radios, the RG-RAP72 supports advanced technologies such as Multi-Link Operation (MLO), OFDMA, and MU-MIMO, ensuring smoother connections, reduced congestion, and enhanced user experience even in busy environments.Its ceiling-mounted circular design allows for optimal signal distribution across open indoor spaces such as offices, hotels, schools, retail stores, and conference centres. The device also supports cloud-based management through Ruijie Cloud and Reyee App, making deployment, monitoring, and scaling simple and efficient. Powered via PoE, the RG-RAP72 enables clean installations with minimal cabling, while its 2.5GbE uplink ensures there are no network bottlenecks on the wired side.
KEY FEATURES
- Latest Wi-Fi 7 (IEEE 802.11be) technology
- BE3600 dual-band high-speed performance
- 2.4 GHz + 5 GHz simultaneous operation
- Supports Multi-Link Operation (MLO) for improved speed and stability
- OFDMA and MU-MIMO for high-density environments
- 2.5 Gigabit Ethernet uplink for fast wired backhaul
- Ceiling-mount design for wide and uniform coverage
- PoE powered for simplified installation
- Centralised cloud management via Ruijie Cloud / Reyee App
- Ideal for enterprise, hospitality, education and retail deployments
