Ruijie RG-ES126FGS-LP 24-PORT 100MBPS + 1 UPLINK PORT 1000MBPS + 1 GIGABIT RJ45/SFP COMBO PORTS, 24 OF THE PORTS SUPPORT
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

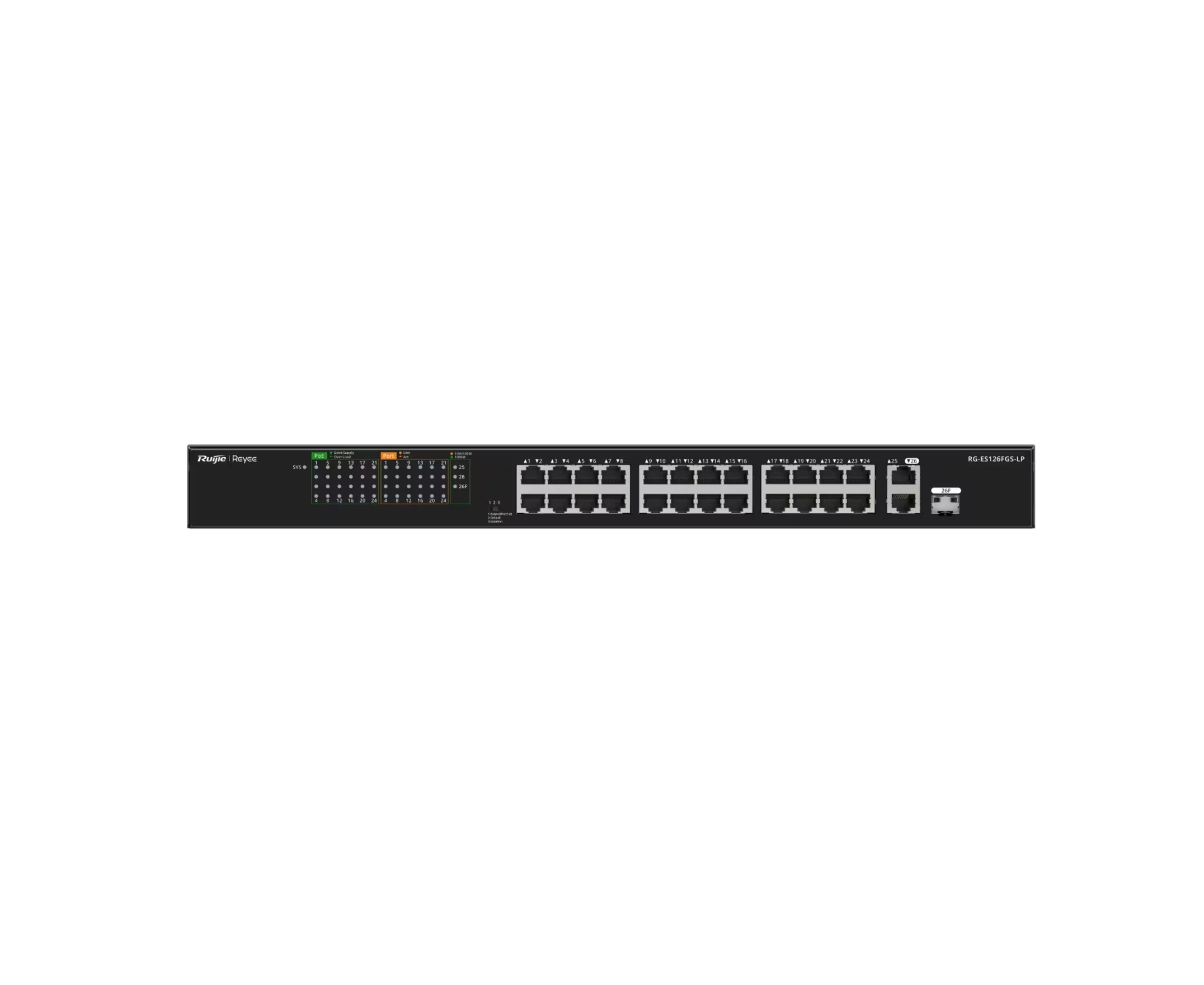

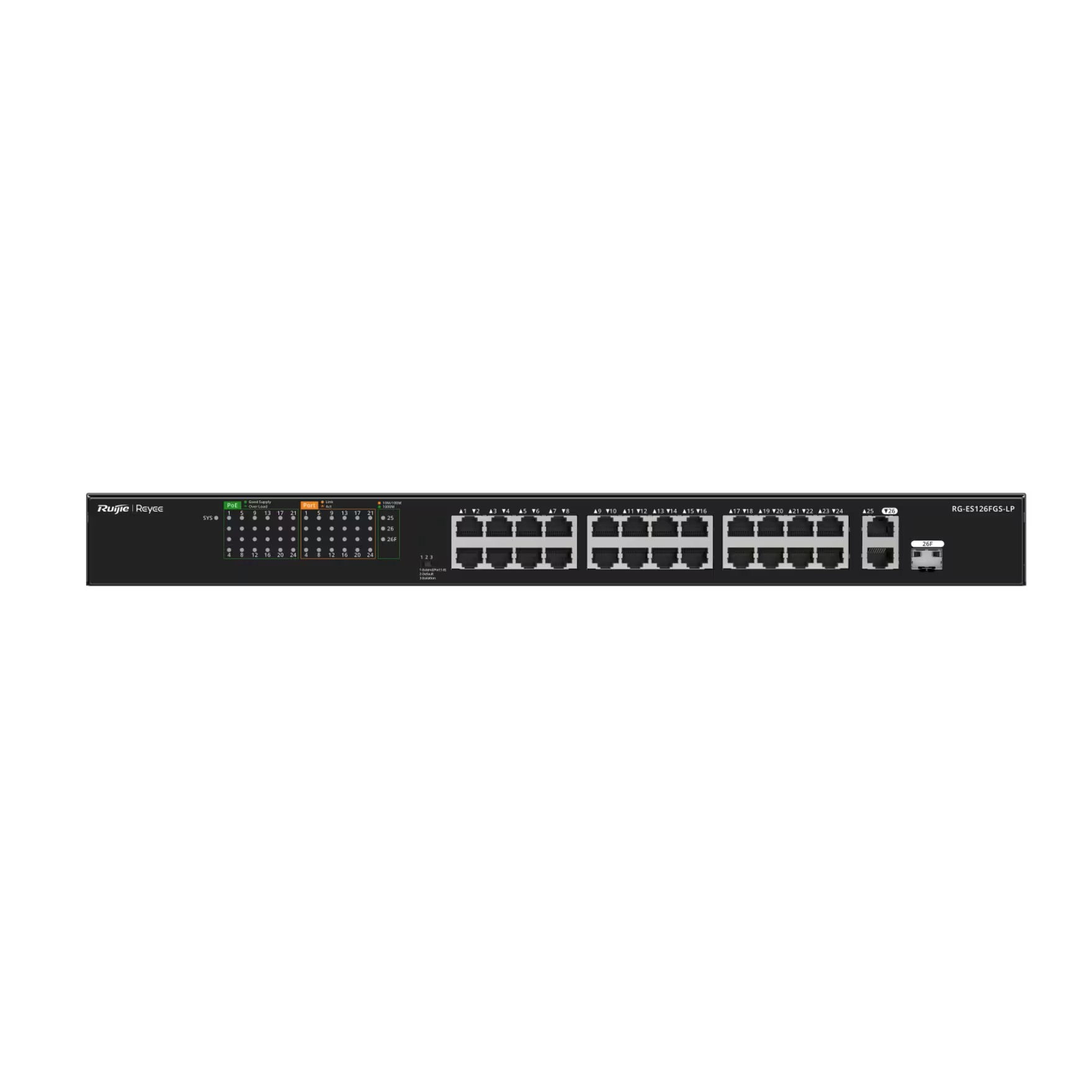

Ruijie RG-ES126FGS-LP — 24-Port PoE+ Unmanaged Switch with Gigabit Uplinks
The Ruijie RG-ES126FGS-LP is a high-performance unmanaged PoE+ switch designed for reliable networking in CCTV systems, small to medium-sized offices, retail environments, and other setups requiring multiple powered devices. It provides both data and power to IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment.
Equipped with 24 × 10/100 Mbps PoE+ ports and 2 × Gigabit uplink ports (one RJ45 and one combo RJ45/SFP), the switch delivers a total PoE power budget of 180 W, supporting up to 30 W per port. This makes it ideal for powering multiple high-demand devices simultaneously.
The RG-ES126FGS-LP is fully plug-and-play, requiring no configuration. It automatically detects and supplies power to compatible devices. A durable metal chassis ensures long-term reliability, while fanless design allows silent operation. Additional features include port-isolation mode for enhanced security and an extended-reach mode that allows cable runs up to 200 meters for devices located far from power sources.
With a switching capacity of 8.8 Gbps and a forwarding rate of 6.55 Mpps, the RG-ES126FGS-LP ensures smooth data flow even under heavy loads, making it a robust, cost-effective solution for expanding wired network infrastructure with PoE support.
Key Features
-
24 × 10/100 Mbps RJ45 PoE+ ports, supporting up to 30 W per port and 180 W total
-
2 × Gigabit uplink ports (1 RJ45 1000 Mbps, 1 combo RJ45/SFP)
-
Unmanaged, plug-and-play operation
-
Supports IEEE 802.3af/802.3at standards
-
Multiple working modes: default, port-isolation, and extended-reach mode
-
Durable metal housing with built-in surge protection
-
Fanless, silent operation
-
Switching capacity: 8.8 Gbps; Forwarding rate: 6.55 Mpps
