Ruijie RG-EW1800GX PRO 1800M Wi-Fi 6 Dual-band Gigabit Mesh Router
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

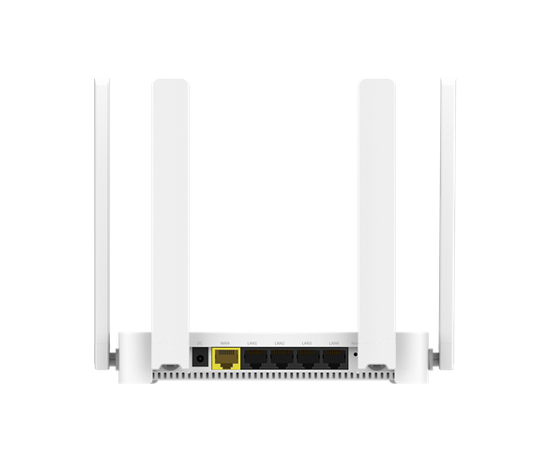

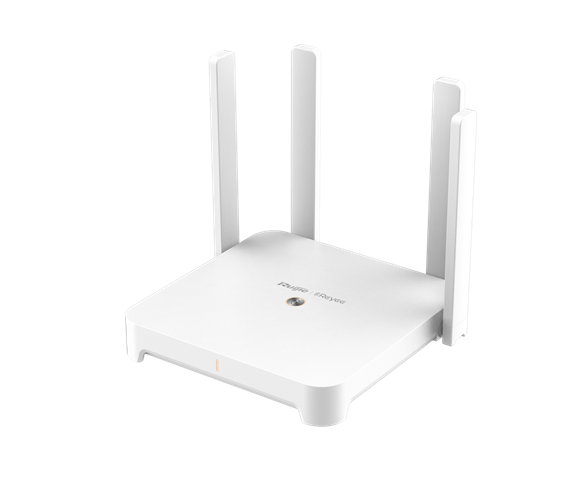

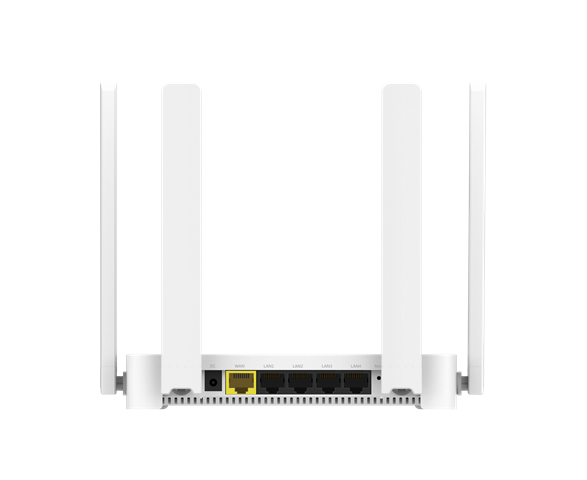

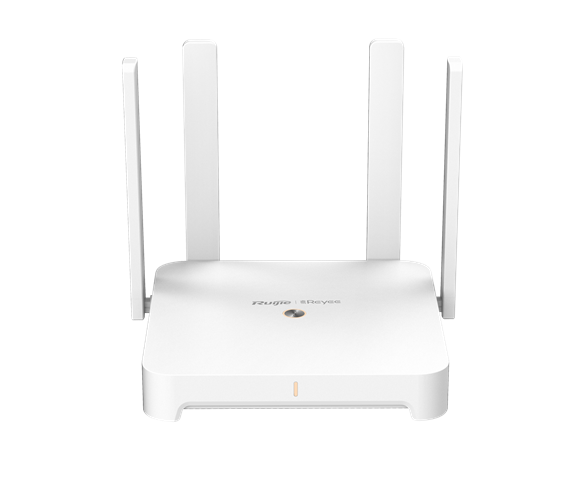

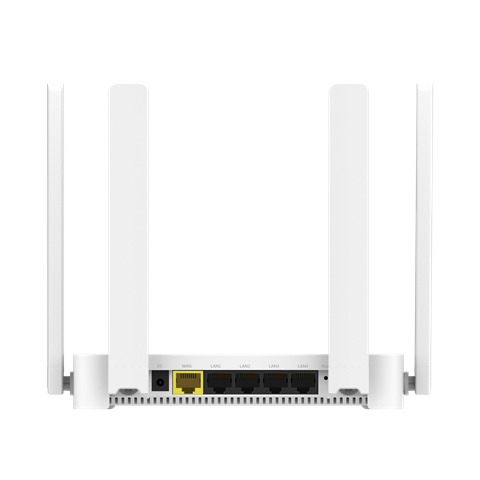

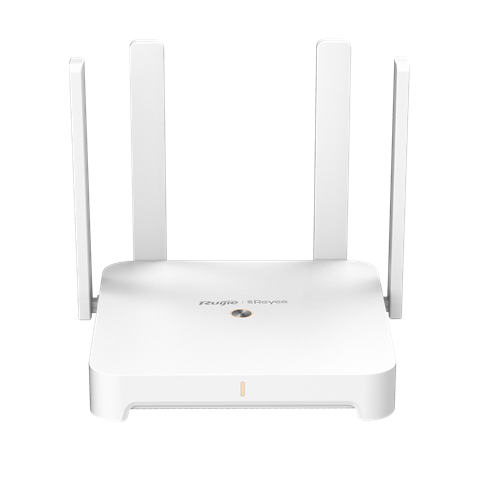

The Reyee RG-EW1800GX-PRO is a powerful WiFi-6 mesh router suitable for home and small office environments. As an 802.11ax WiFi-6 mesh access point, multiple of these EW1800GX-PRO units can be deployed in your home or office for seamless connectivity.
At 600Mbps on 2.4GHz and 1200Mbps on 5GHz, the Ruijie RG-EW1800GX-PRO is a compact and affordable device that delivers a staggering 1.8Gbps throughput. 4T4R MU-MIMO enables simultaneous high-speed transmission to multiple devices for unmatched bandwidth sharing.
This device is equipped with Reyee Mesh technology, which allows you to set up wireless access points such as RG-EW1800GX-PRO into mesh mode with one click. All APs are connected via Reyee MESH, allowing users to intelligently switch between APs for seamless roaming. Each WLAN AP recognizes whether it is a wired or wireless backhaul and coordinates with other Reyee MESH devices.
Band-steering technology automatically switches users from 2.4 GHz to 5 GHz based on distance and data performance, ensuring the fastest possible connection anywhere in the building.
- An Unprecedented Wireless Experience with Wi-Fi 6
- Enter the Era of Wi-Fi 6 Speed
- Strong Signal Received, Feels like “wall-less”
- Exclusive Reyee Mesh provides full space coverage Wi-Fi solution
- Born For Multi-user
- Take control of your home network at your fingertips
